62018 (T 1800) - Toro Generator (SN: 004000001 - 004999999) (1984) GENERATOR ASSEMBLY Parts Diagram

Generator

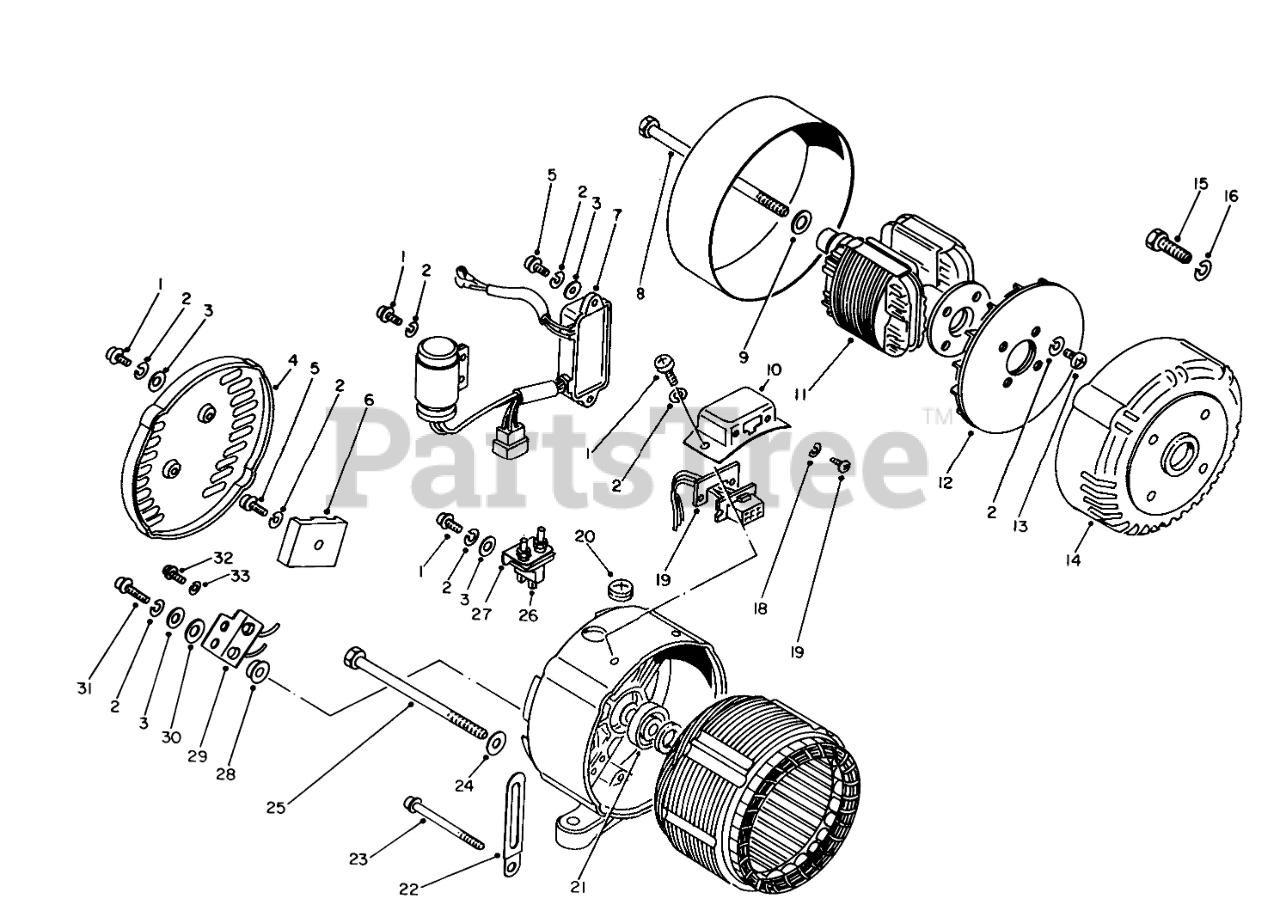

GENERATOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0280

SCREW

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 50-0610

WASHER

$

$

Not available

4

Toro 50-3980

Cover-Rear

$

$

Not available

5

Toro 50-0300

Screw

$

$

Not available

6

Toro 50-4010

Terminal

$

$

Not available

7

Toro 50-4040

REGULATOR

$1365.99

$

Usually ships in 3-6 days

0

8

Toro 50-4230

Bolt

$

$

Not available

9

Toro 50-0630

Washer

$

$

Not available

10

Toro 50-3990

COUPLER COVER

$

$

Not available

11

Toro 50-4200

Rotor

$

$

Not available

12

Toro 50-4260

Fan

$

$

Not available

13

Toro 50-0270

Screw

$

$

Not available

14

Toro 50-3940

Generator (Incl. Ref. #2, 8-9 & 11-13)

$

$

Not available

15

Toro 50-0070

BOLT

$

$

Not available

16

Toro 50-5730

Lockwasher

$

$

Not available

17

Toro 50-0220

SCREW

$

$

Not available

18

Toro 50-0560

Lockwasher

$

$

Not available

19

Toro 50-4000

Plate

$

$

Not available

20

Toro 50-4190

GROMMET

$

$

Not available

21

Toro 50-0470

Bearing

$

$

Not available

22

Toro 50-1070

Clamp

$

$

Not available

23

Toro 50-0340

Screw

$

$

Not available

24

Toro 50-0620

Washer

$

$

Not available

25

Toro 50-4020

Bolt

$

$

Not available

26

Toro 50-4180

BRUSH

$

$

Not available

27

Toro 50-4160

Holder

$

$

Not available

28

Toro 50-4130

Brush

$

$

Not available

29

Toro 50-4090

DIODE

$

$

Not available

30

Toro 50-4110

Washer

$

$

Not available

31

Toro 50-0310

Screw
(Superseded to 55-3390)

$

$

Not available

32

Toro 81-1410

Bolt

$

$

Not available

33

Toro 81-1420

Lockwasher

$

$

Not available
