62018 (T 1800) - Toro Generator (SN: 006000001 - 006999999) (1986) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

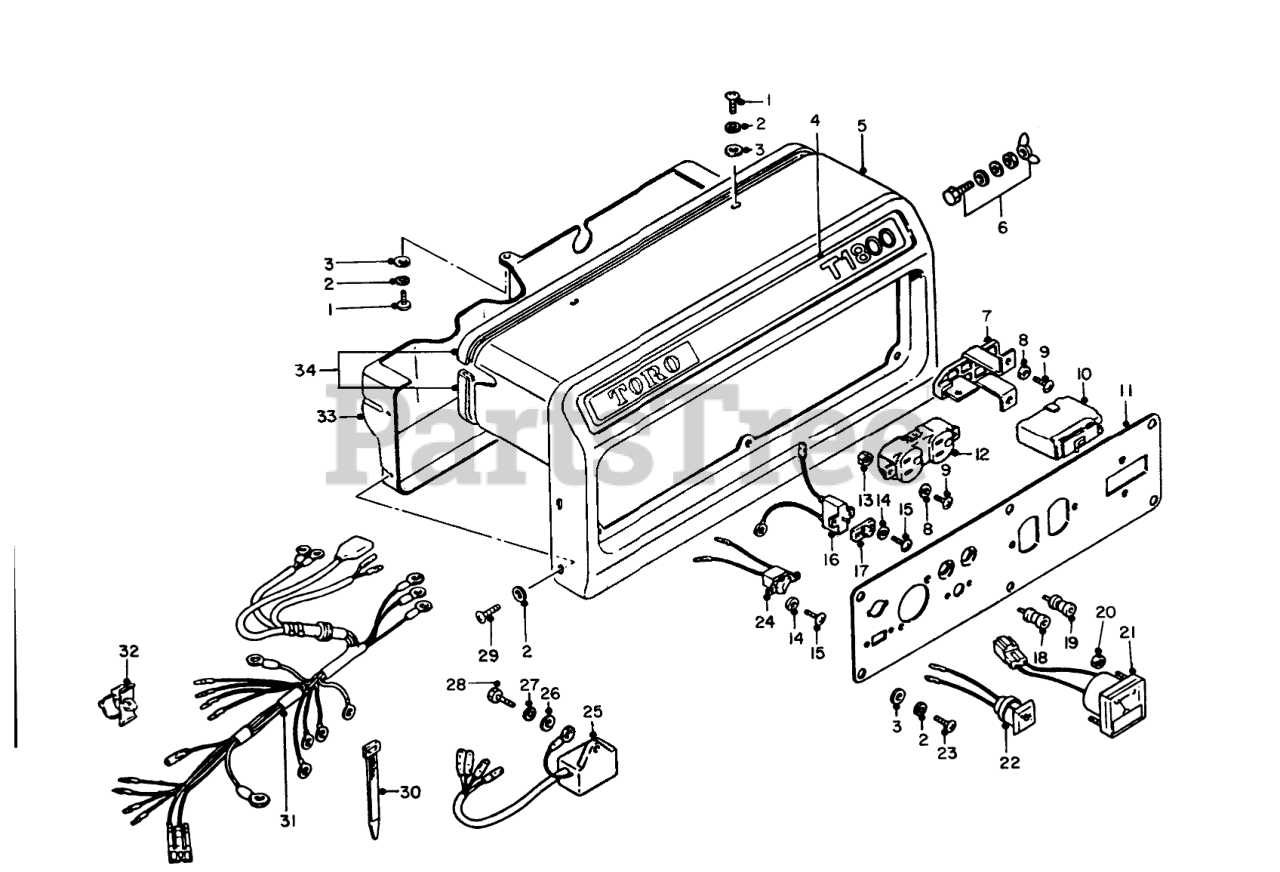

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0280

SCREW

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 50-0610

WASHER

$

$

Not available

4

Toro 55-0490

Emblem-Toro T1800

$

$

Not available

5

Toro 55-0450

Panel-Control

$

$

Not available

6

Toro 50-4530

GROUND TERMINAL

$

$

Not available

7

Toro 50-4380

BREAKER HOLDER

$

$

Not available

8

Toro 55-4540

Washer

$

$

Currently unavailable

9

Toro 53-1080

Screw

$

$

Not available

10

Toro 55-0520

Circuit Breaker

$

$

Not available

11

Toro 55-0480

PLATE

$

$

Not available

12

Toro 50-4490

RECEPTACLE

$

$

Not available

13

Toro 50-0500

Nut

$

$

Not available

14

Toro 50-6750

Washer

$

$

Not available

15

Toro 50-6760

Screw

$

$

Not available

16

Toro 50-8700

Protector-Circuit
(Superseded to 55-2690)

$

$

Not available

17

Toro 50-8720

Cap

$

$

Not available

18

Toro 55-0560

TERMINAL-

$

$

Not available

19

Toro 55-0550

Nut

$

$

Not available

20

Toro 50-0490

Nut

$

$

Not available

21

Toro 50-3470

Meter-Voltage
(Superseded to 55-0800)

$

$

Not available

22

Toro 55-0500

LAMP

$

$

Not available

23

Toro 50-0270

Screw

$

$

Not available

24

Toro 50-4350

Switch

$

$

Not available

25

Toro 50-3550

OIL LEVEL UNIT

$

$

Not available

26

Toro 50-0620

Washer

$

$

Not available

27

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

28

Toro 50-0020

Bolt

$

$

Not available

29

Toro 55-0470

Screw

$

$

Not available

30

Toro 50-1100

Clamp

$

$

Not available

31

Toro 55-0570

CONTROL HARNESS

$

$

Not available

32

Toro 55-0580

Clamp

$

$

Not available

33

Toro 55-0460

Panel-Rear

$

$

Not available

34

Toro 50-4300

Seal

$

$

Not available
