62030 (T 3000) - Toro Generator (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Generator

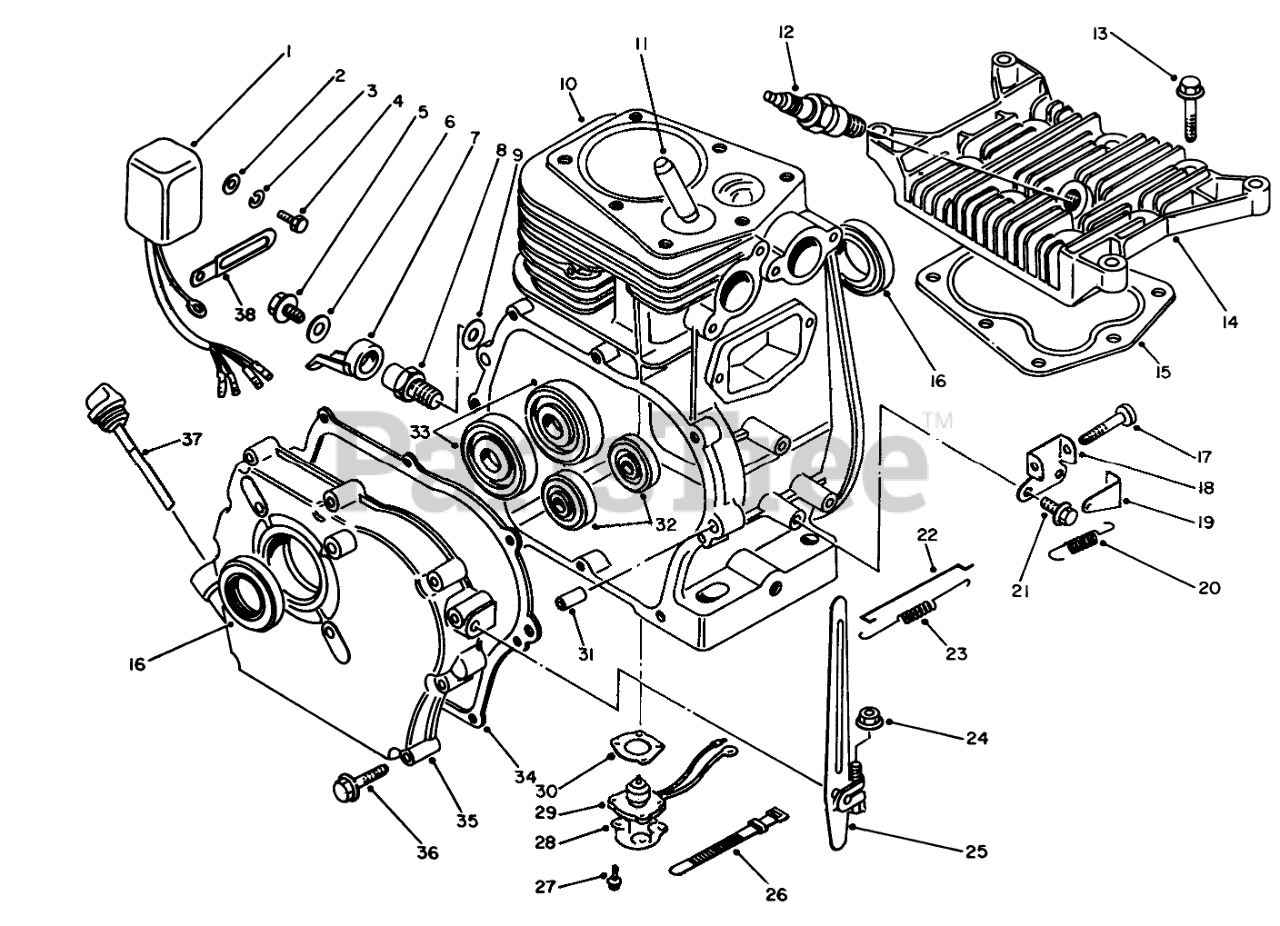

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 50-3550

OIL LEVEL UNIT

$

$

Not available

2

Toro 50-0620

Washer

$

$

Not available

3

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

4

Toro 50-0020

Bolt

$

$

Not available

5

Toro 50-0200

Bolt
(Superseded to 81-4970)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 5-0780

Gasket

$

$

Currently unavailable

7

Toro 50-1360

Plate

$

$

Not available

8

Toro 50-1370

Adapter

$

$

Not available

9

Toro 50-0800

GASKET

$

$

Not available

10

Toro 50-4830

Cylinder

$

$

Not available

11

Toro 50-4850

VALVE GUIDE

$

$

Not available

12

Toro 50-1160

SPARK PLUG

$

$

Not available

13

Toro 50-4670

Bolt

$

$

Not available

14

Toro 50-4790

Cylinder Head

$

$

Not available

15

Toro 50-4810

GASKET

$54.99

$

Usually ships in 3-6 days

0

16

Toro 50-4720

OIL SEAL

$

$

Not available

17

Toro 50-0680

BOLT

$

$

Not available

18

Toro 50-3260

Bracket

$

$

Not available

19

Toro 50-3210

Hook

$

$

Not available

20

Toro 50-1150

SPRING

$

$

Not available

21

Toro 50-0170

Bold

$

$

Not available

22

Toro 50-5280

Rod
(Superseded to 55-2820)

$

$

Not available

23

Toro 50-4750

SPRING

$

$

Not available

24

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

25

Toro 50-5270

Control Lever
(Superseded to 55-2810)

$

$

Not available

26

Toro 50-1100

Clamp

$

$

Not available

27

Toro 81-1300

BOLT

$7.99

$

Usually ships in 3-6 days

0

28

Toro 50-3540

Plate

$

$

Not available

29

Toro 50-3510

Sensor

$

$

Not available

30

Toro 50-3520

GASKET

$

$

Not available

31

Toro 50-0450

PIN

$

$

Not available

32

Toro 50-0820

Bearing

$

$

Not available

33

Toro 50-4680

Screw

$

$

Not available

34

Toro 50-4870

Gasket

$

$

Not available

35

Toro 50-4860

Cover

$

$

Not available

36

Toro 81-0550

Bolt

$

$

Not available

37

Toro 50-4880

Gasket

$

$

Not available

38

Toro 50-1000

Clamp

$

$

Not available

Toro 50-4890

Gasket Set (Optional)

Note: Not illustrated

$

$

Not available
