620301x54NC - Murray 20" Snow Thrower (2004) Discharge Chute Parts Diagram

20" Snow Thrower

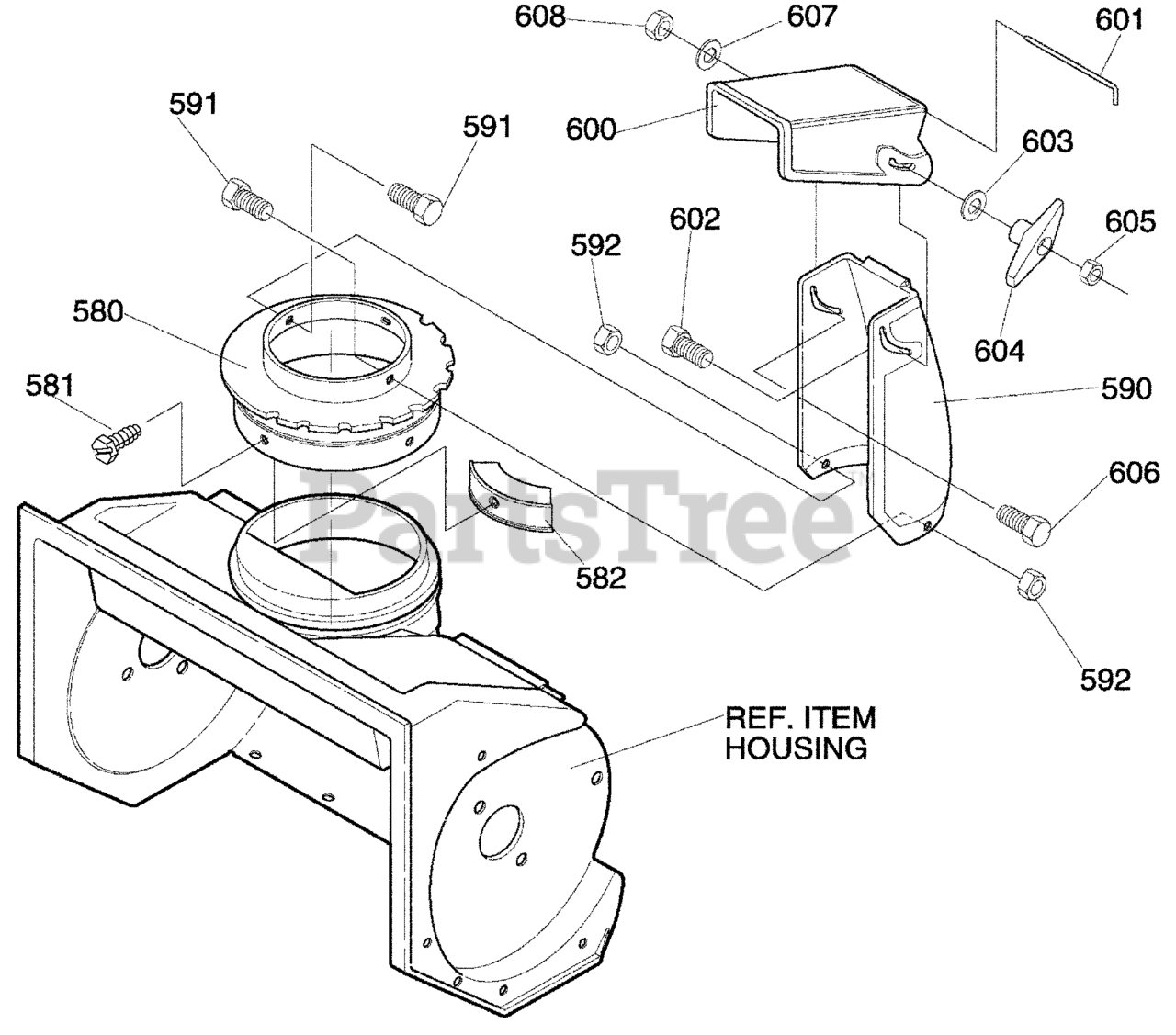

Discharge Chute Parts Diagram

  • Title

580

Murray 314239

RING, CHUTE

$

$

Not available

581

Murray 711752

SCREW, #10X.50

$9.49

$

Usually ships in 2-12 days

0

582

Murray 577021

GUIDE, CHUTE
(Superseded to 577021MA)

$5.49

$

In Stock, Qty 8

0

590

Murray 334234

CHUTE, LOWER
(Superseded to 334234MA)

$43.99

$

Usually ships in 2-12 days

0

591

Murray 313686

SCREW 1/4-20X.50

$3.99

$

In Stock, only 2 left!

0

592

Murray 15X143

NUT, CNTRLK 1/4-2 YZ
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

600

Murray 325847

CHUTE, UPPER
(Superseded to 325847MA)

$51.99

$

In Stock, Qty 20+

0

601

Murray 308931

WIRE, HINGE
(Superseded to 308931MA)

$12.99

$

Usually ships in 2-12 days

0

602

Murray 302843

BOLT, CARRIAGE 5/16-18X1.25
(Superseded to 2818112SM)

$3.49

$

Usually ships in 2-12 days

0

603

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

604

Murray 57171

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, only 3 left!

0

605

Murray 71037

NUT, HEX 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088

SCREW, 5/16-18 x 0.75
(Superseded to 578088MA)

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

608

Murray 71391

NUT, HEX 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0
