620301x54NC - Murray 20" Snow Thrower (2004) Engine Assembly Parts Diagram

20" Snow Thrower

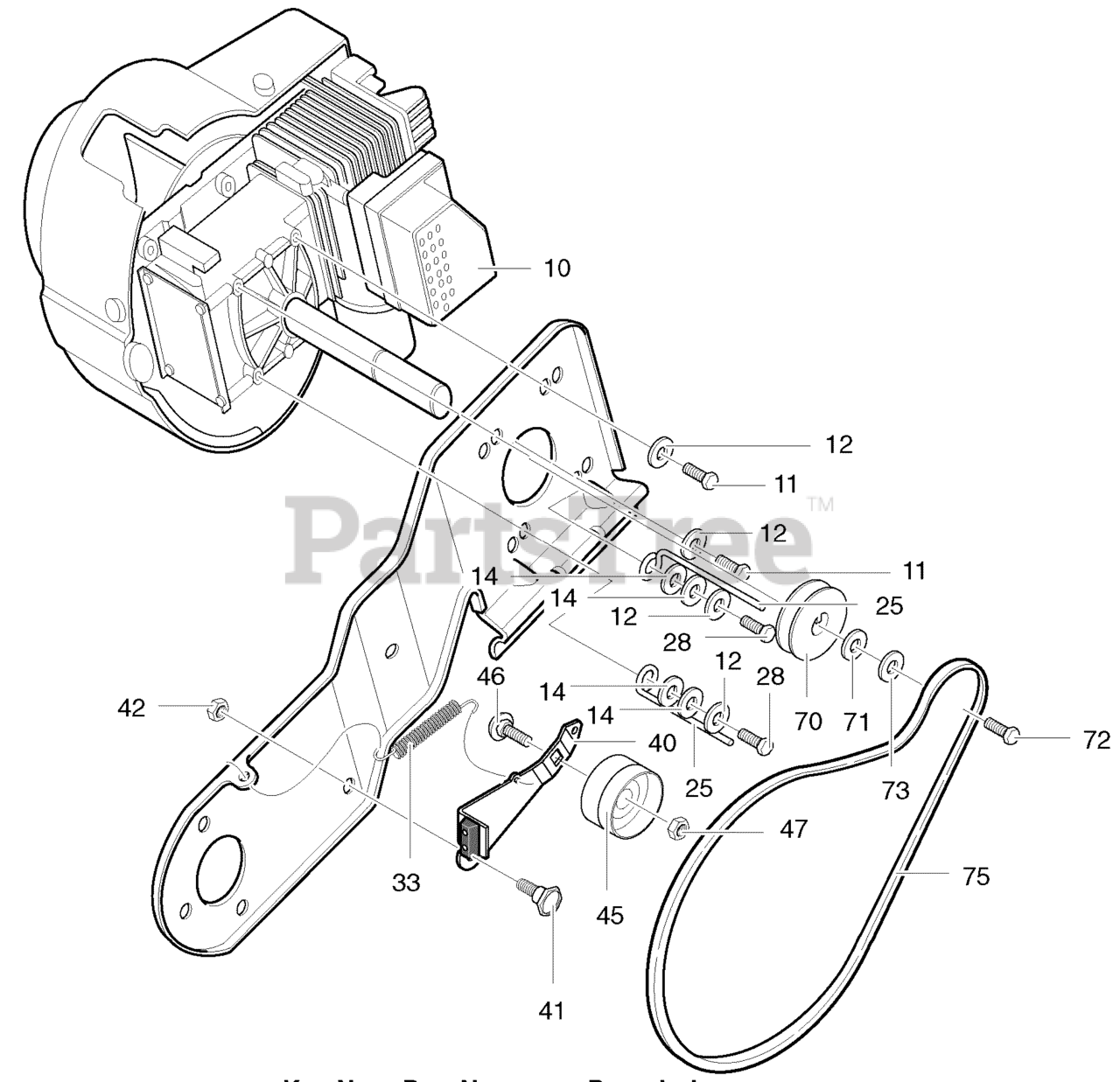

Engine Assembly Parts Diagram

  • Title

10

ENGINE

$

$

Not available

11

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

12

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

14

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

25

Murray 313440

GUIDE, BELT

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW

$8.49

$

Usually ships in 2-12 days

0

33

Murray 339017

SPRING, IDLER BRAKE

$39.99

$

Usually ships in 2-12 days

0

40

Murray 1501013

ASSY, IDLER BRAKE ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594

BOLT
(Superseded to 333594MA)

$20.99

$

In Stock, only 2 left!

0

42

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

45

Murray 48924

PULLEY, IDLER
(Superseded to 48924MA)

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892

BOLT, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

47

Murray 590

NUT
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

70

Murray 338849

PULLEY, ENGINE

$

$

Not available

71

Murray 25840

WASHER, BELLEVELLE

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 71060

WASHER, SPLTLK
(Superseded to 1501670MA)

$

$

Not available

75

Murray 37X132

BELT, V 3L 34.8"

$18.99

$

In Stock, only 1 left!

0

--

Murray F-041022C

OPERATOR'S MANUAL

$

$

Currently unavailable
