620301x61NC - Murray 20" Snow Thrower (2004) Frame Components Assembly Parts Diagram

20" Snow Thrower

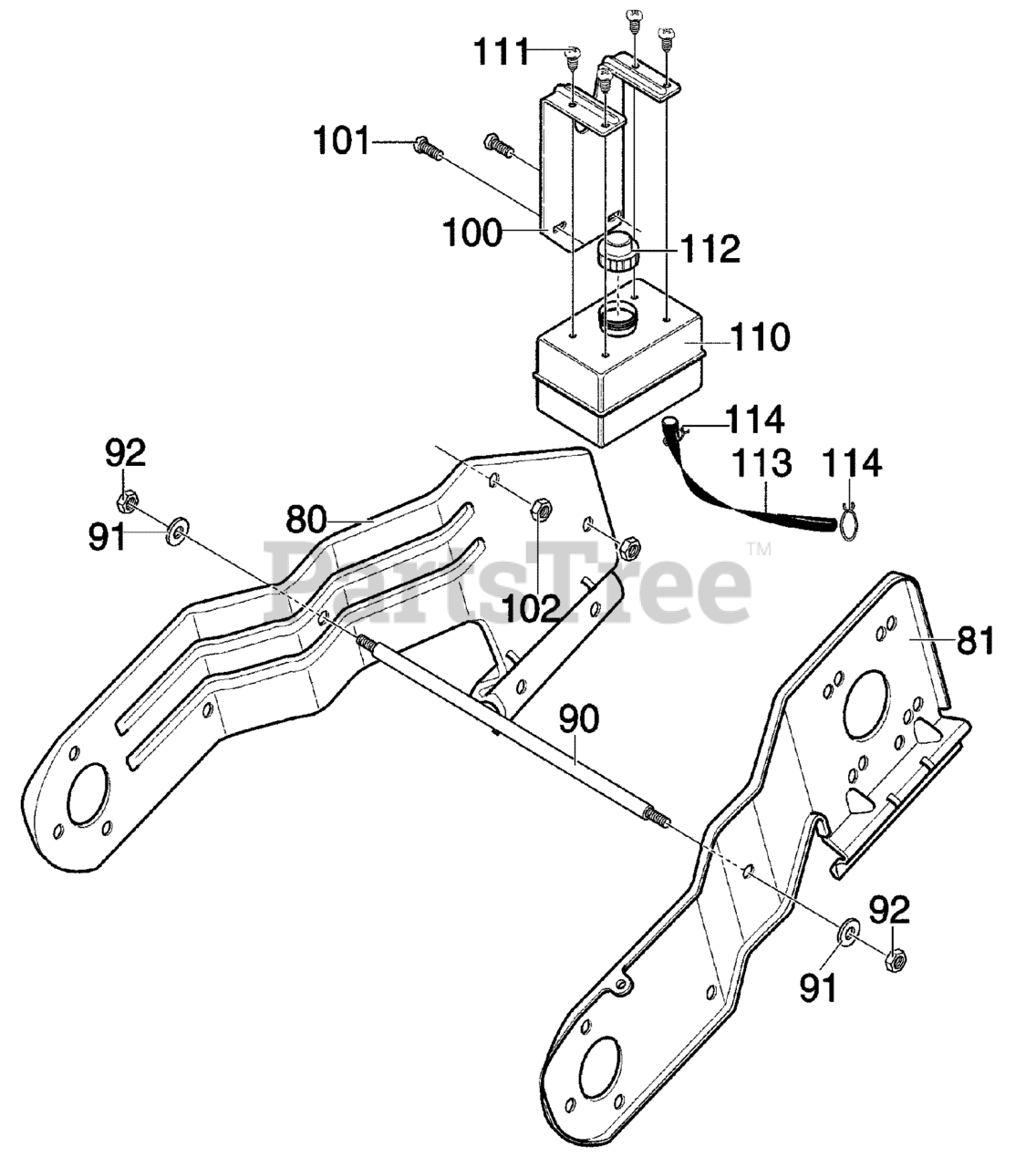

Frame Components Assembly Parts Diagram

  • Title

80

Murray 760272E701

FRAME SIDE SUPPORT RH

$

$

Not available

81

Murray 760271E701

FRAME SIDE SUPPORT LH

$60.99

$

In Stock, only 1 left!

0

90

Murray 760169

ROD, SUPPORT

$90.99

$

Usually ships in 2-12 days

0

91

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

92

Murray 71044

NUT, 3/8-16 HEX

$3.49

$

Usually ships in 2-12 days

0

100

Murray 578093E701

BRACKET, GAS TANK

$

$

Not available

101

Murray 302628

SCREW, 1/4-20X.75
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

102

Murray 15X143

NUT, 1/4-20
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

110

Murray 55381

TANK, FUEL

$

$

Not available

111

Murray 313681

SCREW, 1/4-14X.88

$3.49

$

Usually ships in 2-12 days

0

112

Murray 315433

CAP, GAS-BLACK

$

$

Not available

113

Murray 327290

TUBING 11.50 IN.

$

$

Not available

114

Murray 323387

CLAMP, FUEL LINE
(Superseded to 323387MA)

$4.49

$

Usually ships in 2-12 days

0
