62032 (T 3000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

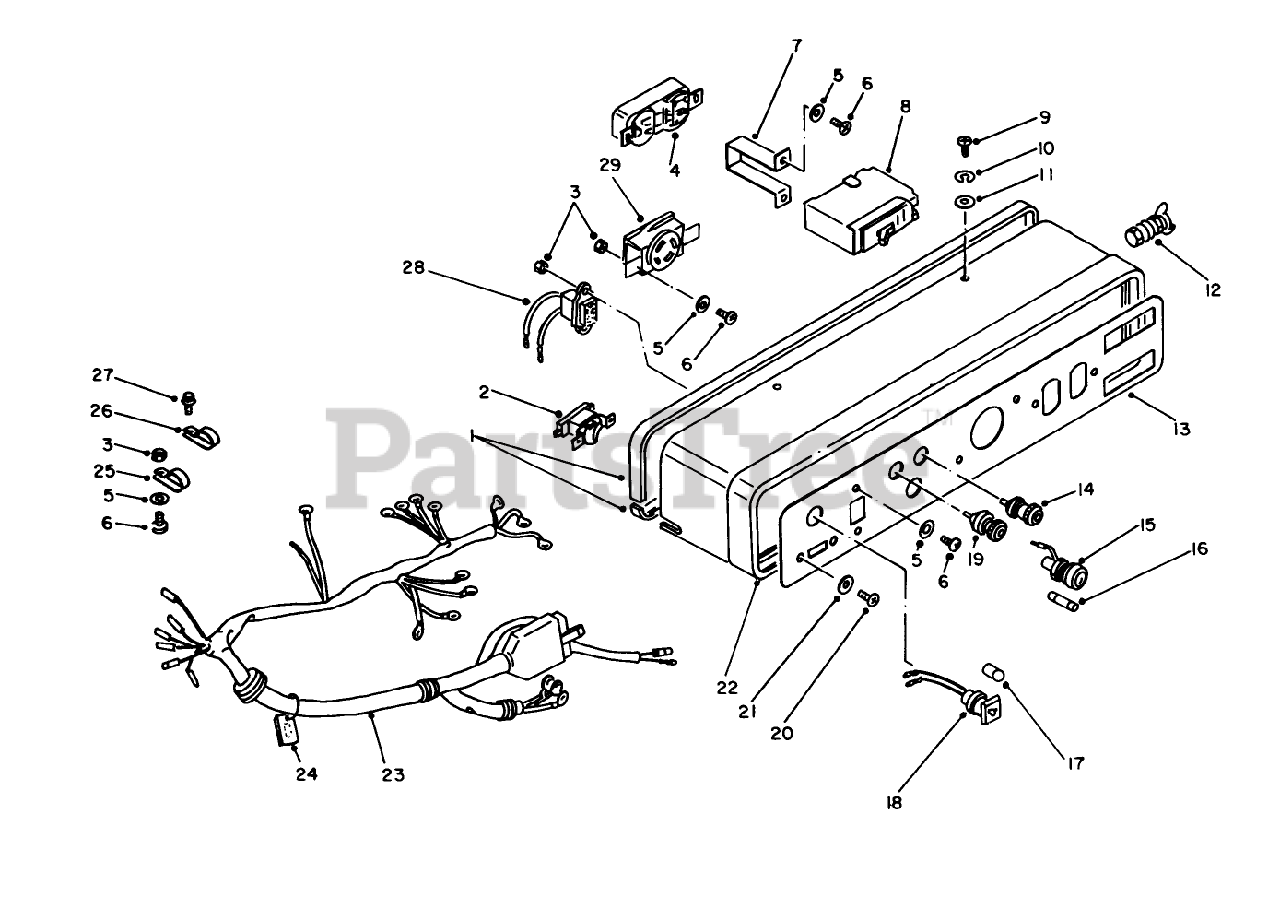

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-5590

Seal

$

$

Not available

2

Toro 50-4350

Switch

$

$

Not available

3

Toro 50-0500

Nut

$

$

Not available

4

Toro 50-5810

Receptacle

$

$

Currently unavailable

5

Toro 50-0600

Washer

$

$

Not available

6

Toro 50-0240

Screw

$

$

Not available

7

Toro 50-5850

Holder

$

$

Not available

8

Toro 50-5840

Circuit Breaker

$

$

Not available

9

Toro 50-0280

SCREW

$

$

Not available

10

Toro 81-1380

Washer

$

$

Not available

11

Toro 50-0610

WASHER

$

$

Not available

12

Toro 50-5650

Terminal

$

$

Not available

13

Toro 50-5880

PANEL PLATE

$

$

Not available

14

Toro 50-4510

Terminal
(Superseded to 55-0550)

$

$

Not available

15

Toro 50-4410

Fuse Holder (Incl.Ref.#16)

$

$

Not available

16

Toro 50-4460

Fuse

$

$

Not available

17

Toro 50-3490

Bulb

$

$

Not available

18

Toro 50-5370

Lamp (Incl.Ref.#19)

$

$

Not available

19

Toro 50-4520

TERMINAL (-)

$

$

Not available

20

Toro 50-0220

SCREW

$

$

Not available

21

Toro 50-0590

Washer

$

$

Not available

22

Toro 50-5860

Control Panel

$

$

Not available

23

Toro 50-5900

Wire Harness

$

$

Not available

24

Toro 50-5680

Fuse-Spare

$

$

Not available

25

Toro 50-1030

CLAMP

$

$

Not available

26

Toro 50-1040

Clamp

$

$

Not available

27

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

28

Toro 50-4390

Hertz Meter

$

$

Not available

29

Toro 50-5820

Receptacle

$

$

Not available
