62032 (T 3000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) GENERATOR Parts Diagram

Generator

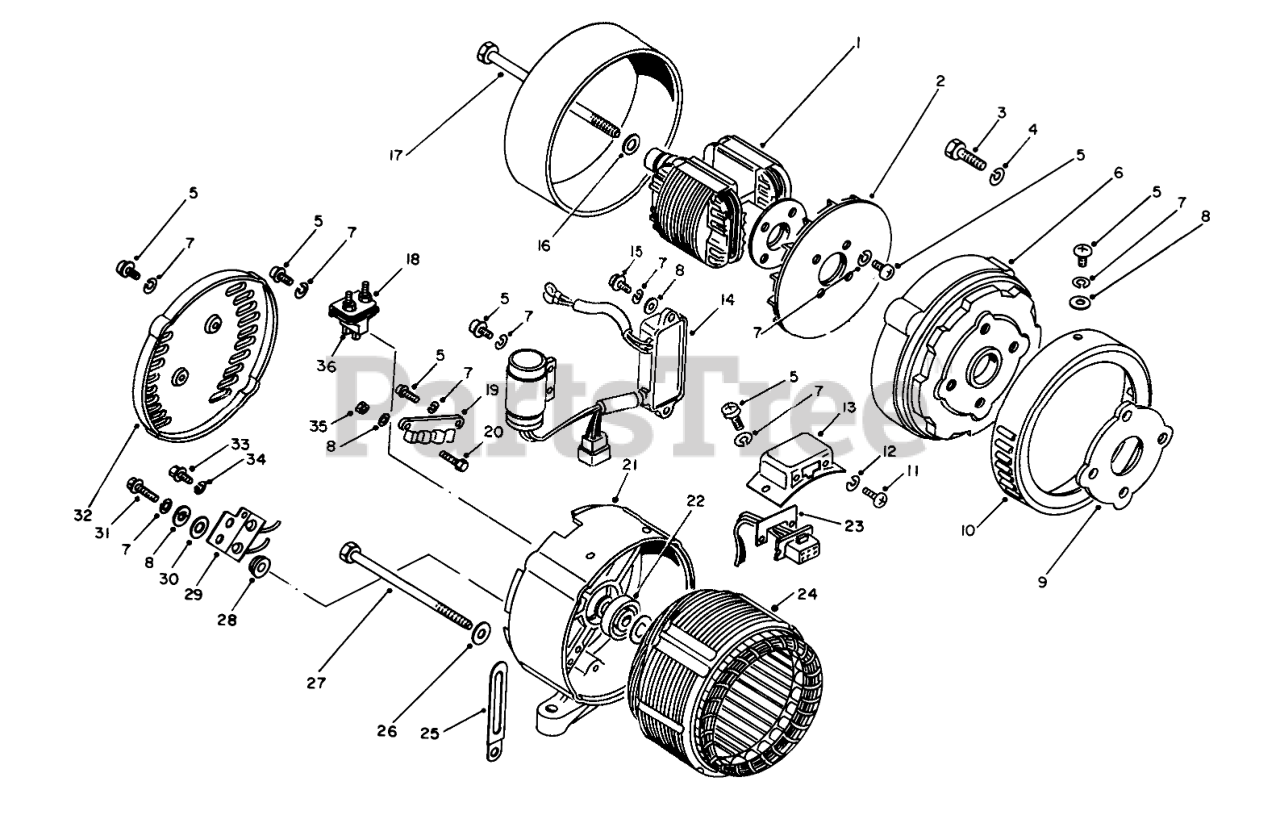

GENERATOR Parts Diagram

  • Title

1

Toro 50-5520

Rotor

$

$

Not available

2

Toro 50-5550

Fan

$

$

Not available

3

Toro 50-0070

BOLT

$

$

Not available

4

Toro 50-5730

Lockwasher

$

$

Not available

5

Toro 50-0280

SCREW

$

$

Not available

6

Toro 50-5800

Generator Assy. (Incl.Ref.#1,2,5,7,16,17,21,22&24)

$

$

Not available

7

Toro 50-0610

WASHER

$

$

Not available

8

Toro 50-0610

WASHER

$

$

Not available

9

Toro 50-5460

Seal

$

$

Not available

10

Toro 50-5470

Cover-Front

$

$

Not available

11

Toro 50-0220

SCREW

$

$

Not available

12

Toro 50-0560

Lockwasher

$

$

Not available

13

Toro 50-3990

COUPLER COVER

$

$

Not available

14

Voltage Regulator

Note: Note: See Service Bulletin No. 2

$

$

Not available

15

Toro 50-0300

Screw

$

$

Not available

16

Toro 50-4700

Washer

$

$

Not available

17

Toro 50-5540

Bolt

$

$

Not available

18

Toro 50-4160

Holder

$

$

Not available

19

Toro 50-5490

Terminal

$

$

Not available

20

Toro 50-4650

Bolt

$

$

Not available

21

Toro 50-5740

Rear Bracket

$

$

Not available

22

Toro 50-4690

Bearing

$

$

Not available

23

Toro 50-4000

Plate

$

$

Not available

25

Toro 50-1070

Clamp

$

$

Not available

26

Toro 50-0620

Washer

$

$

Not available

27

Toro 50-5500

Bolt

$

$

Not available

28

Toro 50-4130

Brush

$

$

Not available

29

Toro 50-4090

DIODE

$

$

Not available

30

Toro 50-4110

Washer

$

$

Not available

31

Toro 50-0310

Screw
(Superseded to 55-3390)

$

$

Not available

32

Toro 50-5480

Seat

$

$

Not available

33

Toro 81-1410

Bolt

$

$

Not available

34

Toro 81-1420

Lockwasher

$

$

Not available

35

Toro 50-5690

Nut

$

$

Not available

36

Toro 50-4180

BRUSH

$

$

Not available
