62032 (T 3000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) Generator Parts Diagram

Generator

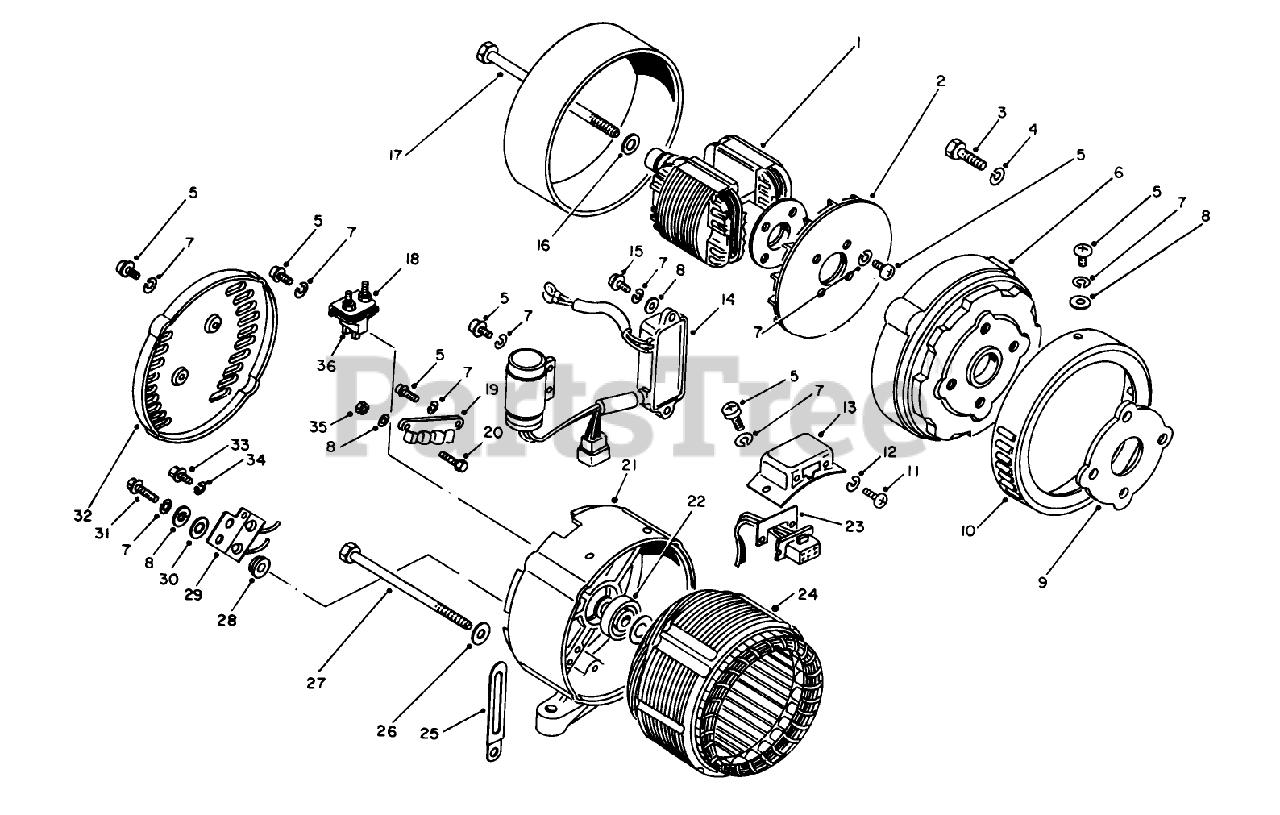

Generator Parts Diagram

  • Title

1

Toro 50-5520

DISCONTINUED

$

$

Not available

2

Toro 50-5550

DISCONTINUED

$

$

Not available

3

Toro 50-0070

DISCONTINUED

$

$

Not available

4

Toro 50-5730

DISCONTINUE

$

$

Not available

5

Toro 50-0280

DISCONTINUED

$

$

Not available

6

Toro 50-5800

DISCONTINUED

$

$

Not available

7

Toro 50-0610

DISCONTINUED

$

$

Not available

8

Toro 50-0610

DISCONTINUED

$

$

Not available

9

Toro 50-5460

DISCONTINUED

$

$

Not available

10

Toro 50-5470

DISCONTINUED

$

$

Not available

11

Toro 50-0220

DISCONTINUED

$

$

Not available

12

Toro 50-0560

DISCONTINUED

$

$

Not available

13

Toro 50-3990

DISCONTINUED

$

$

Not available

14

Voltage Regulator

Note: Note: See Service Bulletin No. 2

$

$

Not available

15

Toro 50-0300

DISCONTINUED

$

$

Not available

16

Toro 50-4700

DISCONTINUED

$

$

Not available

17

Toro 50-5540

DISCONTINUED

$

$

Not available

18

Toro 50-4160

DISCONTINUED

$

$

Not available

19

Toro 50-5490

DISCONTINUED

$

$

Not available

20

Toro 50-4650

DISCONTINUED

$

$

Not available

21

Toro 50-5740

DISCONTINUED

$

$

Not available

22

Toro 50-4690

DISCONTINUED

$

$

Not available

23

Toro 50-4000

DISCONTINUED

$

$

Not available

25

Toro 50-1070

DISCONTINUED

$

$

Not available

26

Toro 50-0620

DISCONTINUED

$

$

Not available

27

Toro 50-5500

DISCONTINUED

$

$

Not available

28

Toro 50-4130

DISCONTINUED

$

$

Not available

29

Toro 50-4090

DISCONTINUED

$

$

Not available

30

Toro 50-4110

DISCONTINUED

$

$

Not available

31

Toro 50-0310

See Supercession: 55-3390
(Superseded to 55-3390)

$

$

Not available

32

Toro 50-5480

DISCONTINUE

$

$

Not available

33

Toro 81-1410

DISCONTINUED

$

$

Not available

34

Toro 81-1420

DISCONTINUED

$

$

Not available

35

Toro 50-5690

DISCONTINUED

$

$

Not available

36

Toro 50-4180

DISCONTINUED

$

$

Not available
