62032 (T 3000 D) - Toro Generator (SN: 007000001 - 007999999) (1987)

Generator

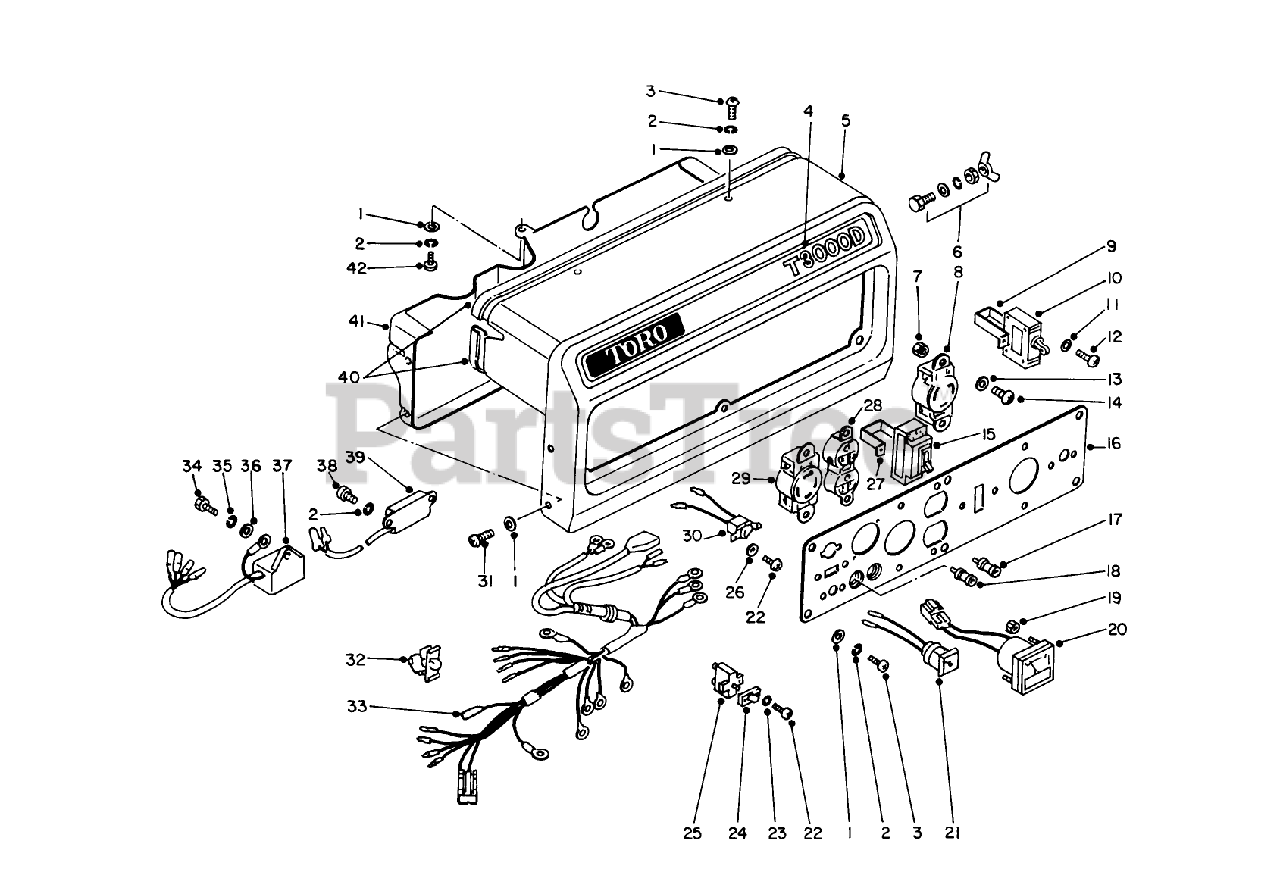

62032 (T 3000 D) - Toro Generator (SN: 007000001 - 007999999) (1987) > Parts Diagrams (8) > CONTROL PANEL ASSEMBLY

  • Title
50-0610

1

WASHER

Part# 50-0610

OEM Warranty Repair Part for Toro

Not available

81-1380

2

Washer

Part# 81-1380

OEM Warranty Repair Part for Toro

Not available

50-0280

3

SCREW

Part# 50-0280

OEM Warranty Repair Part for Toro

Not available

55-0730

4

Emblem-Toro

Part# 55-0730

OEM Warranty Repair Part for Toro

Not available

55-0700

5

Panel-Control

Part# 55-0700

OEM Warranty Repair Part for Toro

Not available

50-4530

6

GROUND TERMINAL

Part# 50-4530

OEM Warranty Repair Part for Toro

Not available

50-0500

7

Nut

Part# 50-0500

OEM Warranty Repair Part for Toro

Not available

55-1190

8

Receptacle (125V, 30A)

Part# 55-1190

OEM Warranty Repair Part for Toro

Currently unavailable

55-0770

9

Holder-Breaker

Part# 55-0770

OEM Warranty Repair Part for Toro

Not available

55-0750

10

CIRCUIT BREAKER

Part# 55-0750

OEM Warranty Repair Part for Toro

Not available

55-0540

11

Washer

Part# 55-0540

OEM Warranty Repair Part for Toro

Not available

55-0790

12

Screw

Part# 55-0790

OEM Warranty Repair Part for Toro

Not available

55-0540

13

Washer

Part# 55-0540

OEM Warranty Repair Part for Toro

Not available

53-1080

14

Screw

Part# 53-1080

OEM Warranty Repair Part for Toro

Not available

55-0760

15

Circuit Breaker

Part# 55-0760

OEM Warranty Repair Part for Toro

Not available

55-0720

16

Plate-Panel

Part# 55-0720

OEM Warranty Repair Part for Toro

Not available

55-0550

17

Nut

Part# 55-0550

OEM Warranty Repair Part for Toro

Not available

55-0560

18

TERMINAL-

Part# 55-0560

OEM Warranty Repair Part for Toro

Not available

50-0490

19

Nut

Part# 50-0490

OEM Warranty Repair Part for Toro

Not available

55-0800

20

Meter-Voltage

Part# 55-0800

OEM Warranty Repair Part for Toro

Not available

55-0500

21

LAMP

Part# 55-0500

OEM Warranty Repair Part for Toro

Not available

50-6760

22

Screw

Part# 50-6760

OEM Warranty Repair Part for Toro

Not available

50-6750

23

Washer

Part# 50-6750

OEM Warranty Repair Part for Toro

Not available

50-8720

24

Cap

Part# 50-8720

OEM Warranty Repair Part for Toro

Not available

50-8700

25

Protector-Circuit

Part# 50-8700 (Superseded to 55-2690)

OEM Warranty Repair Part for Toro

Not available

50-6750

26

Washer

Part# 50-6750

OEM Warranty Repair Part for Toro

Not available

55-0780

27

Holder-Breaker

Part# 55-0780

OEM Warranty Repair Part for Toro

Not available

55-2170

28

Receptacle (125V, 15A)

Part# 55-2170

OEM Warranty Repair Part for Toro

Not available

50-8740

29

Receptacle

Part# 50-8740

OEM Warranty Repair Part for Toro

Currently unavailable

50-4350

30

Switch

Part# 50-4350

OEM Warranty Repair Part for Toro

Not available

55-0470

31

Screw

Part# 55-0470

OEM Warranty Repair Part for Toro

Not available

55-0580

32

Clamp

Part# 55-0580

OEM Warranty Repair Part for Toro

Not available

55-0810

33

CONTROL HARNESS

Part# 55-0810

OEM Warranty Repair Part for Toro

Not available

50-0020

34

Bolt

Part# 50-0020

OEM Warranty Repair Part for Toro

Not available

81-1450

35

LOCKWASHER

Part# 81-1450

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.28

50-0620

36

Washer

Part# 50-0620

OEM Warranty Repair Part for Toro

Not available

50-3550

37

OIL LEVEL UNIT

Part# 50-3550

OEM Warranty Repair Part for Toro

Not available

50-0270

38

Screw

Part# 50-0270

OEM Warranty Repair Part for Toro

Not available

55-0740

39

X-STR MAG UNIT

Part# 55-0740

OEM Warranty Repair Part for Toro

Not available

50-5590

40

Seal

Part# 50-5590

OEM Warranty Repair Part for Toro

Not available

55-0710

41

Panel-Rear

Part# 55-0710

OEM Warranty Repair Part for Toro

Not available

50-0290

42

Screw

Part# 50-0290

OEM Warranty Repair Part for Toro

Not available
