62032 (T 3000 D) - Toro Generator (SN: 007000001 - 007999999) (1987) GENERATOR ASSEMBLY Parts Diagram

Generator

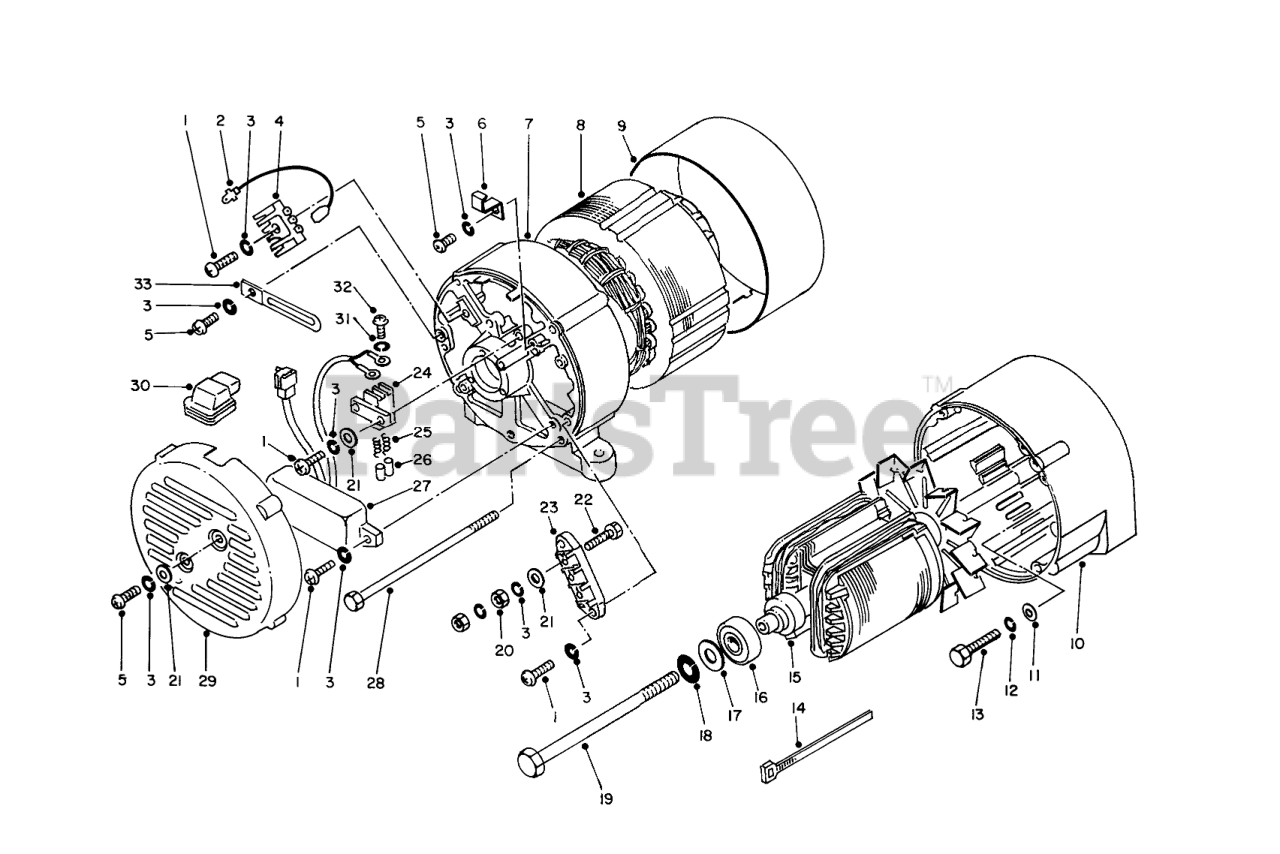

GENERATOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0300

Screw

$

$

Not available

2

Toro 55-1030

Fusible Link

$

$

Not available

3

Toro 81-1380

Washer

$

$

Not available

4

Toro 55-0910

Rectifier

$

$

Not available

5

Toro 50-0280

SCREW

$

$

Not available

6

Toro 55-0960

Clamp

$

$

Not available

7

Toro 55-0860

Housing-Rear

$

$

Not available

8

Toro 55-0830

Stator (120V +120V/240V)

$

$

Not available

9

Toro 55-0850

Cover-Stator Core

$

$

Not available

10

Toro 55-0840

Housing-Front

$

$

Not available

11

Toro 50-4700

Washer

$

$

Not available

12

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

13

Toro 50-0070

BOLT

$

$

Not available

14

Toro 55-1020

Clamp

$

$

Not available

15

Toro 55-0970

Rotor

$

$

Not available

16

Toro 55-1010

Bearing

$

$

Not available

17

Toro 55-0990

WASHER

$

$

Not available

18

Toro 55-1000

Washer-Lock

$

$

Not available

19

Toro 55-0980

Bolt-Rotor

$

$

Not available

20

Toro 50-5690

Nut

$

$

Not available

21

Toro 50-0610

WASHER

$

$

Not available

22

Toro 50-4650

Bolt

$

$

Not available

23

Toro 55-0880

Terminal Assembly (Incl. Ref. #3 & 20-22)

$

$

Not available

24

Toro 55-0920

Brush Assembly (Incl. Ref. #25, 26 & 31-32)

$

$

Not available

25

Toro 55-0930

Spring

$

$

Not available

26

Toro 55-0940

BRUSH

$

$

Not available

27

Toro 55-0900

REGULATOR

$

$

Not available

28

Toro 55-0890

Bolt-Stator

$

$

Not available

29

Toro 55-0870

Cover-Rear

$

$

Not available

30

Toro 55-0950

Grommet

$

$

Not available

31

Toro 81-1420

Lockwasher

$

$

Not available

32

Toro 81-1410

Bolt

$

$

Not available

33

Toro 50-1070

Clamp

$

$

Not available

Toro 55-0820

Generator Assembly

Note: Not illustrated

$

$

Not available
