620351x4NA - Murray 20" Snow Thrower (2003) Engine Assembly Parts Diagram

20" Snow Thrower

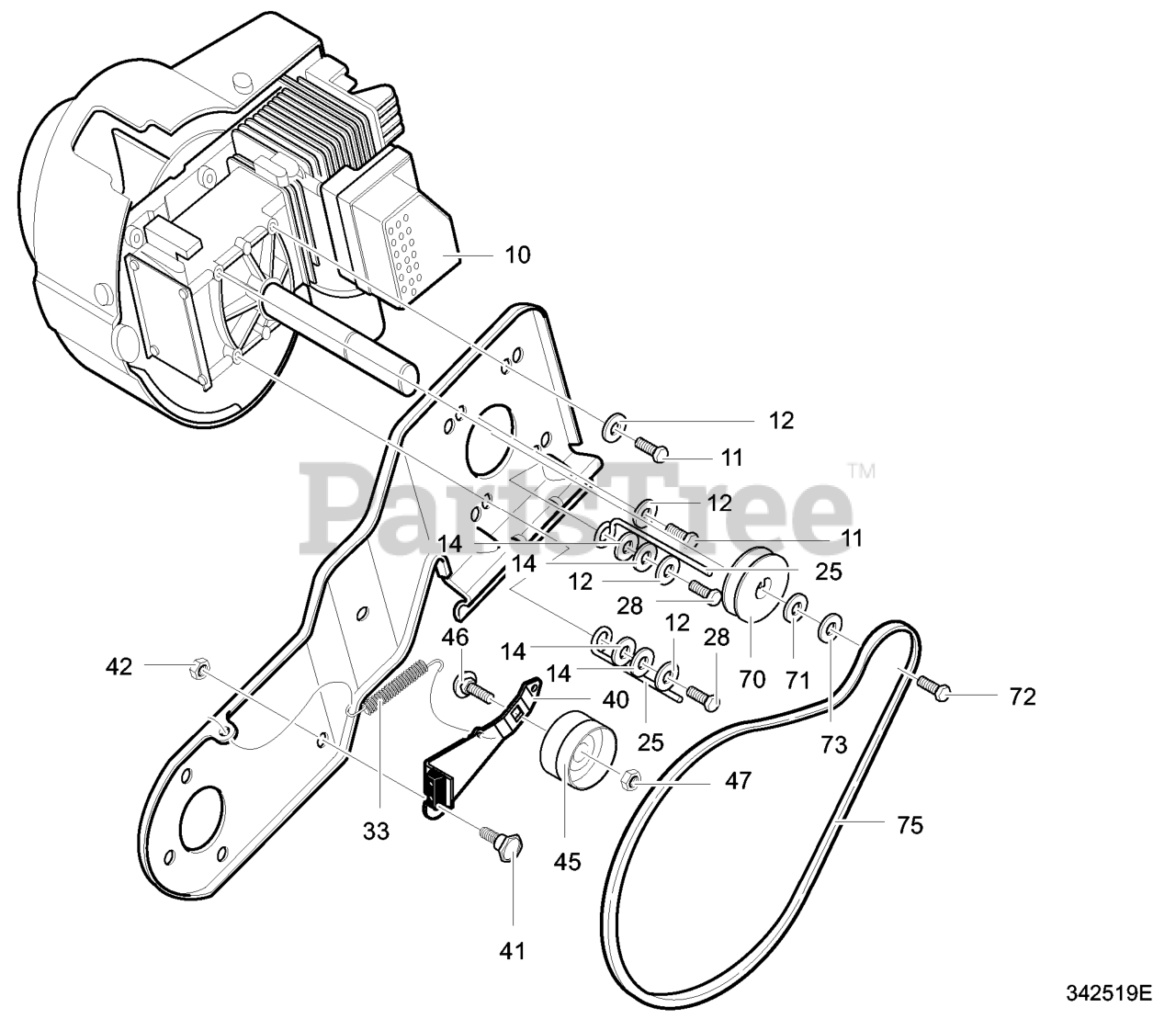

Engine Assembly Parts Diagram

  • Title

10

ENGINE

$

$

Not available

11

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 17

0

12

Murray 018X16MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

25

Murray 313440MA

GUIDE, BELT

$10.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW

$8.49

$

Usually ships in 2-12 days

0

33

Murray 339017MA

SPRING, IDLER BRAKE

$41.99

$

Usually ships in 2-12 days

0

40

Murray 1501013MA

ASSY, IDLER BRAKE ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$21.99

$

In Stock, only 1 left!

0

42

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

45

Murray 48924MA

PULLEY, IDLER

$32.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

47

Murray 590

NUT
(Superseded to 703996)

$5.49

$

In Stock, Qty 7

0

70

Murray 338849MA

PULLEY, ENGINE

$

$

Not available

71

Murray 25840

WASHER, BELLEVILLE

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 018X16MA

WASHER, SPLTLK

$3.99

$

Usually ships in 2-12 days

0

75

Murray 37X132

BELT V 3L 34.8"

$19.99

$

Usually ships in 2-12 days

0

--

Murray F-031075C

OPERATOR'S MANUAL

$

$

Currently unavailable
