620351x4NB - Murray 20" Snow Thrower (2004) Auger Housing Parts Diagram

20" Snow Thrower

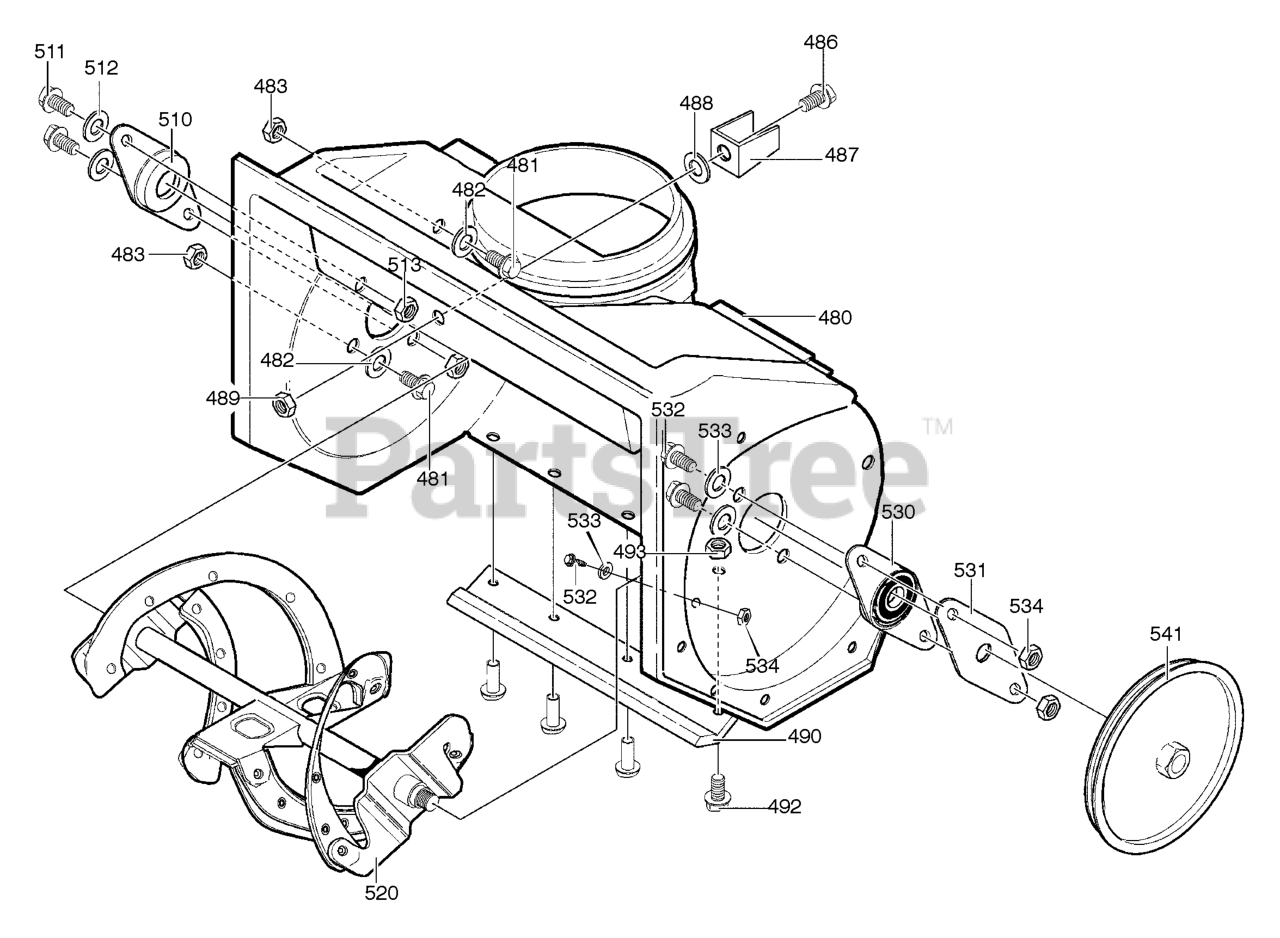

Auger Housing Parts Diagram

  • Title

480

Murray 330312MA

HOUSING, ASSY

$

$

Not available

481

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

Usually ships in 2-12 days

0

482

Murray 71067

WASHER, FLAT .281X.63X.065
(Superseded to 71067MA)

$4.49

$

Usually ships in 2-12 days

0

483

Murray 15X143MA

NUT, HEX 1/4-20 YZ

$5.49

$

In Stock, Qty 9

0

486

Murray 579052

SCREW, 1/4-20X.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

487

Murray 331126MA

BRACKET, STOP

$6.99

$

Usually ships in 2-12 days

0

488

Murray 331211MA

WASHER, FLAT .333X.87X.119

$3.99

$

Usually ships in 2-12 days

0

489

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

490

Murray 334031MA

BLADE, SCRAPER

$48.99

$

Usually ships in 2-12 days

0

492

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

Usually ships in 2-12 days

0

493

Murray 15X143MA

NUT, 1/4-20 YZ

$5.49

$

In Stock, Qty 9

0

510

Murray 577023MA

BEARING, FLANGE

$6.49

$

In Stock, only 3 left!

0

511

Murray 710263

SCREW, 1/4-20X1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

512

Murray 71067

WASHER, FLAT .281X.63X.065
(Superseded to 71067MA)

$4.49

$

Usually ships in 2-12 days

0

513

Murray 302635

NUT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

520

Murray 1501926MA

AUGER, ASSY

$227.99

$

Usually ships in 2-12 days

0

530

Murray 583459MA

BEARING & PLATE ASSY

$29.99

$

Usually ships in 2-12 days

0

531

Murray 334287MA

PLATE, RETAINER

$7.99

$

In Stock, only 1 left!

0

532

Murray 579052

SCREW, 1/4-20X.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

533

Murray 71067

WASHER, FLAT .281X.63X.065
(Superseded to 71067MA)

$4.49

$

Usually ships in 2-12 days

0

534

Murray 15X143MA

NUT, 1/4-20

$5.49

$

In Stock, Qty 9

0

541

Murray 338965MA

PULLEY

$38.99

$

Usually ships in 2-12 days

0
