62062 (528) - Toro Turf Dethatcher (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 192402-0645-A2 (MODEL 60061 ONLY) Parts Diagram

Turf Dethatcher

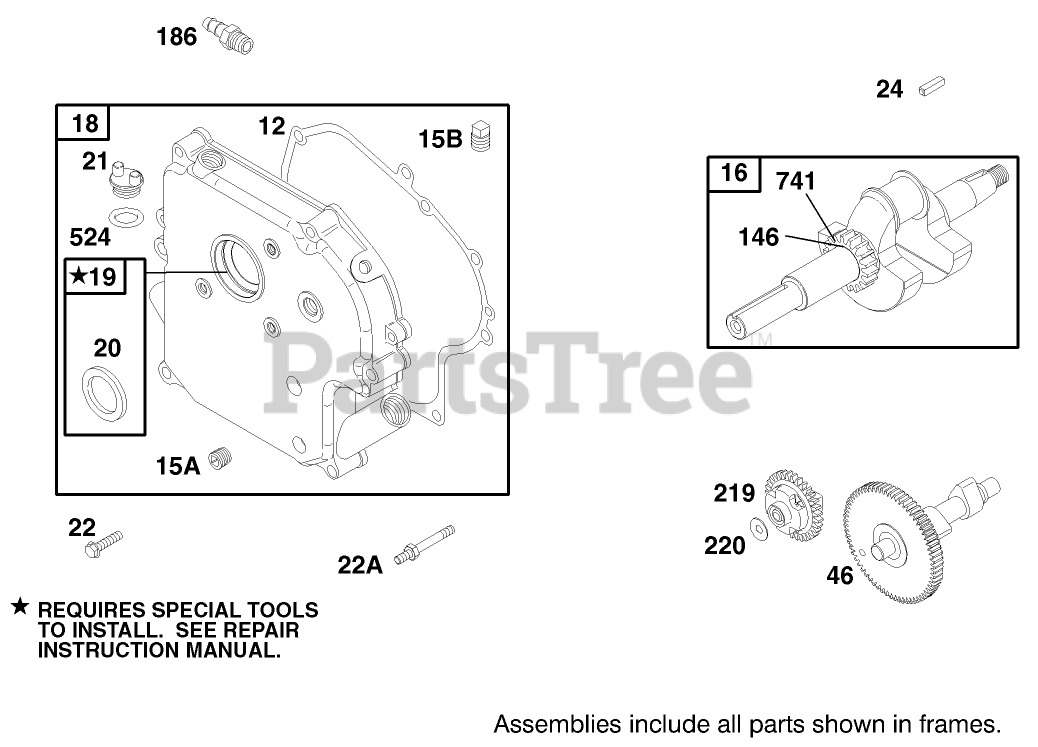

ENGINE BRIGGS & STRATTON MODEL 192402-0645-A2 (MODEL 60061 ONLY) Parts Diagram

  • Title

12

Briggs & Stratton 271701

Gasket-Crankcase Cover 1/64" thick
(Superseded to 692221)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271701

Gasket-Crankcase Cover 1/64" thick
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 497070.

$9.49

$

In Stock, only 1 left!

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 497070.

$

$

Not available

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 2 left!

0

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 497070.

$11.99

$

In Stock, only 2 left!

0

15A

Briggs & Stratton 94880

Oil Drain Plug
(Superseded to 691680)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 3 left!

0

15B

Briggs & Stratton 91488

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

16

Briggs & Stratton 495648

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

18

Briggs & Stratton 496982

Cover-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

19

Briggs & Stratton 295964

Bushing

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 497070.

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 281658

Cap-Fill, Oil
(Superseded to 281658S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

22A

Briggs & Stratton 94931

Stud-Hex. Drive (Note: Used in Position 1)
(Superseded to 691695)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 11

0

46

Briggs & Stratton 214786

Gear-Cam

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

186

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 497037

Gear-Governor
(Superseded to 496786)

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 12

0

741

Briggs & Stratton 263025

Gear-Timing
(Superseded to 691288)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 2 left!

0
