62064 (442) - Toro Turf Aerator (SN: 089000001 - 089999999) (1998) REAR WHEEL ASSEMBLY Parts Diagram

Turf Aerator

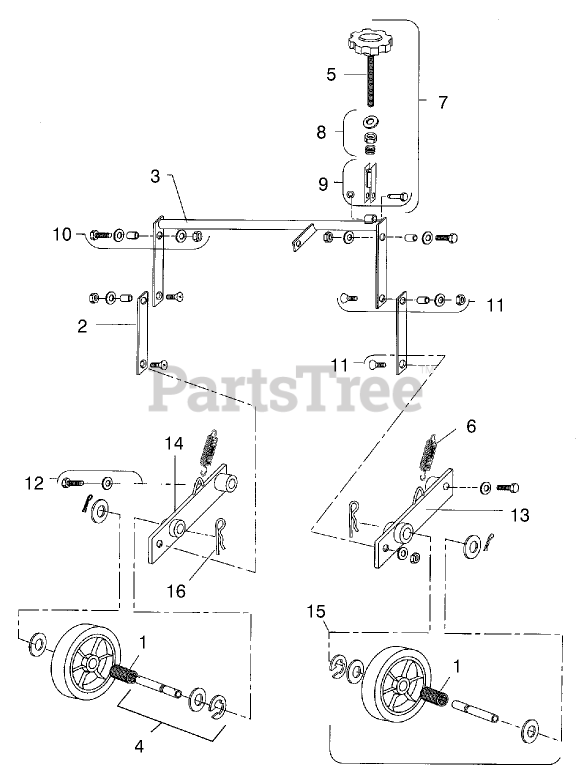

REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro T7409

ROLLER BEARING W/SEALS

$

$

Not available

2

Toro T7107

LINK - LIFT

$

$

Not available

3

Toro T7119

TORQUE ARM, DEPTH ADJUSTMENT

$

$

Not available

4

Toro T7410

AXLE KIT (INCL HARDWARE)

$10.99

$

Usually ships in 3-6 days

0

5

Toro T7163

KNOB

$

$

Not available

6

Toro T7195

SPRING

$

$

Not available

7

Toro T7213

KIT - CONTROL

$

$

Not available

8

Toro T7214

KIT - SPRING KNOB

$

$

Not available

9

Toro T7215

KIT - BRACKET

$

$

Not available

10

Toro T7216

KIT - FASTENER

$

$

Not available

11

Toro T7217

KIT - FASTENER

$

$

Not available

12

Toro T7411

FASTENER KIT (CARRIAGE/HOUSING)

$

$

Not available

13

Toro T7412

WHEEL ARM, RIGHT AXLE

$299.99

$

Usually ships in 3-6 days

0

14

Toro T7413

WHEEL ARM, LEFT AXLE

$

$

Not available

15

Toro T7414

WHEEL ASSY

$

$

Not available

16

Toro T7415

COTTER KEY (HAIR PIN)

$

$

Not available
