62064 (442) - Toro Turf Aerator (SN: 200000001 - 200999999) (2000) POWER TRAIN AND TINE ROTOR ASSEMBLY Parts Diagram

Turf Aerator

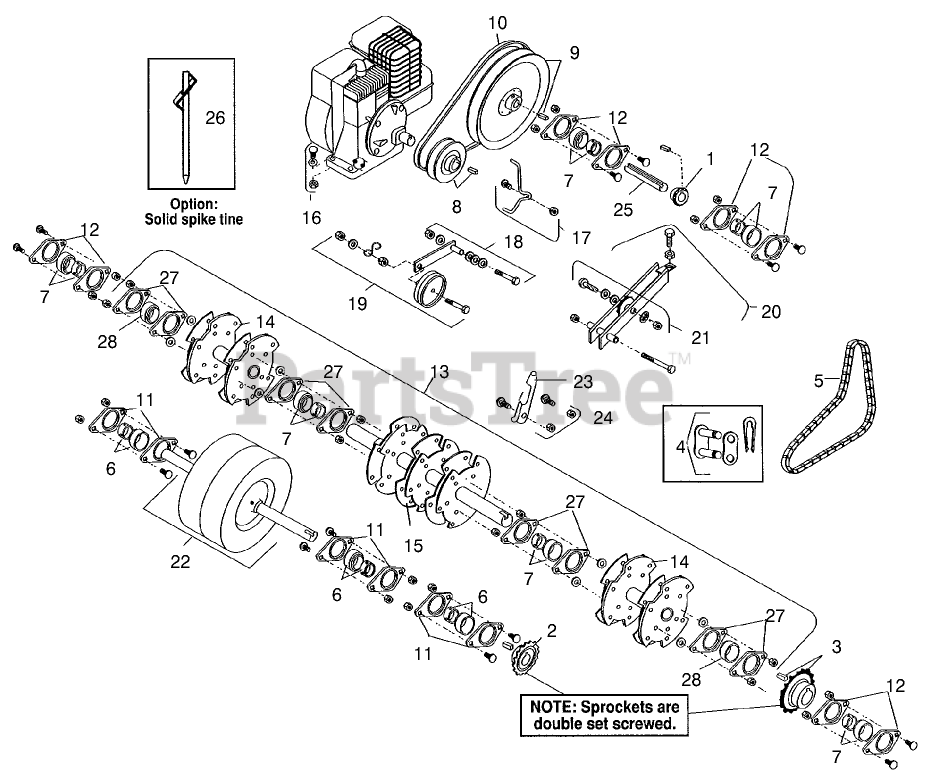

POWER TRAIN AND TINE ROTOR ASSEMBLY Parts Diagram

  • Title

1

Toro T7416

SPROCKET,JACKSHAFT W/KEY

$

$

Not available

2

Toro T7417

SPROCKET,WHEEL W/SET SCREWS AND KEY

$

$

Not available

3

Toro T7418

SPROCKET,ROTOR W/SET SCREWS AND KEY

$

$

Not available

4

Toro T7419

MASTER LINK FOR T7420

$

$

Not available

5

Toro T7420

CHAIN #50

$

$

Not available

6

Toro T0315

BEARING

$

$

Not available

7

Toro T0317

BEARING

$

$

Not available

8

Toro T0328

PULLEY - 4" V

$

$

Not available

9

Toro T7421

V-PULLEY,A10 W/ SET SCREWS AND KEY

$638.99

$

Usually ships in 3-6 days

0

10

Toro T0336

V-BELT

$

$

Not available

11

Toro T5185

KIT - STAMPING

$

$

Not available

12

Toro T5786

KIT - STAMPING

$

$

Not available

13

Toro T7422

TINE ROTOR SHAFT ASSY, COPLETE

$2190.99

$

Usually ships in 3-6 days

0

14

Toro T7423

OUTER ROTOR PLATE KIT

$517.99

$

Usually ships in 3-6 days

0

15

Toro T7424

CENTER TINE ROTOR SHAFT

$

$

Not available

16

Toro T7204

KIT - ENGINE FASTENER

$

$

Not available

17

Toro T7205

KIT - BELT KEEPER

$

$

Not available

18

Toro T7206

KIT - BELT IDLER ARM

$

$

Not available

19

Toro T7207

KIT - BELT IDLER PULLEY

$

$

Not available

20

Toro T7425

ARM KIT

$

$

Not available

21

Toro T7426

SPROCKET

$

$

Not available

22

Toro T7120

FRONT WHEEL AND SHAFT KIT

$

$

Not available

23

Toro T7111

TINE SET, CLOSED SPOON,42 EA

$1804.99

$

Usually ships in 3-6 days

0

Toro T7112

TINE SET 6 EACH

$

$

Not available

24

Toro T7102

TINE/SPIKE FASTENER KIT (96 EA)

$411.99

$

Usually ships in 3-6 days

0

Toro T7103

TINE/SPIKE FASTENER KIT

$

$

Not available

25

Toro T7427

JACKSHAFT W/ KEY

$

$

Not available

26

Toro T7104

SPIKE SET (42EA)

$2459.99

$

Usually ships in 3-6 days

0

27

Toro T7105

SCAMPING KIT W/ NUTS & BOLTS (1" DIA)

$

$

Not available

28

Toro T7108

BEARING (LESS COLLAR)

$

$

Not available
