621 (590-621-100) - Cub Cadet Sub Frame for Backhoe att Backhoe Frame Assembly Parts Diagram

Sub Frame for Backhoe

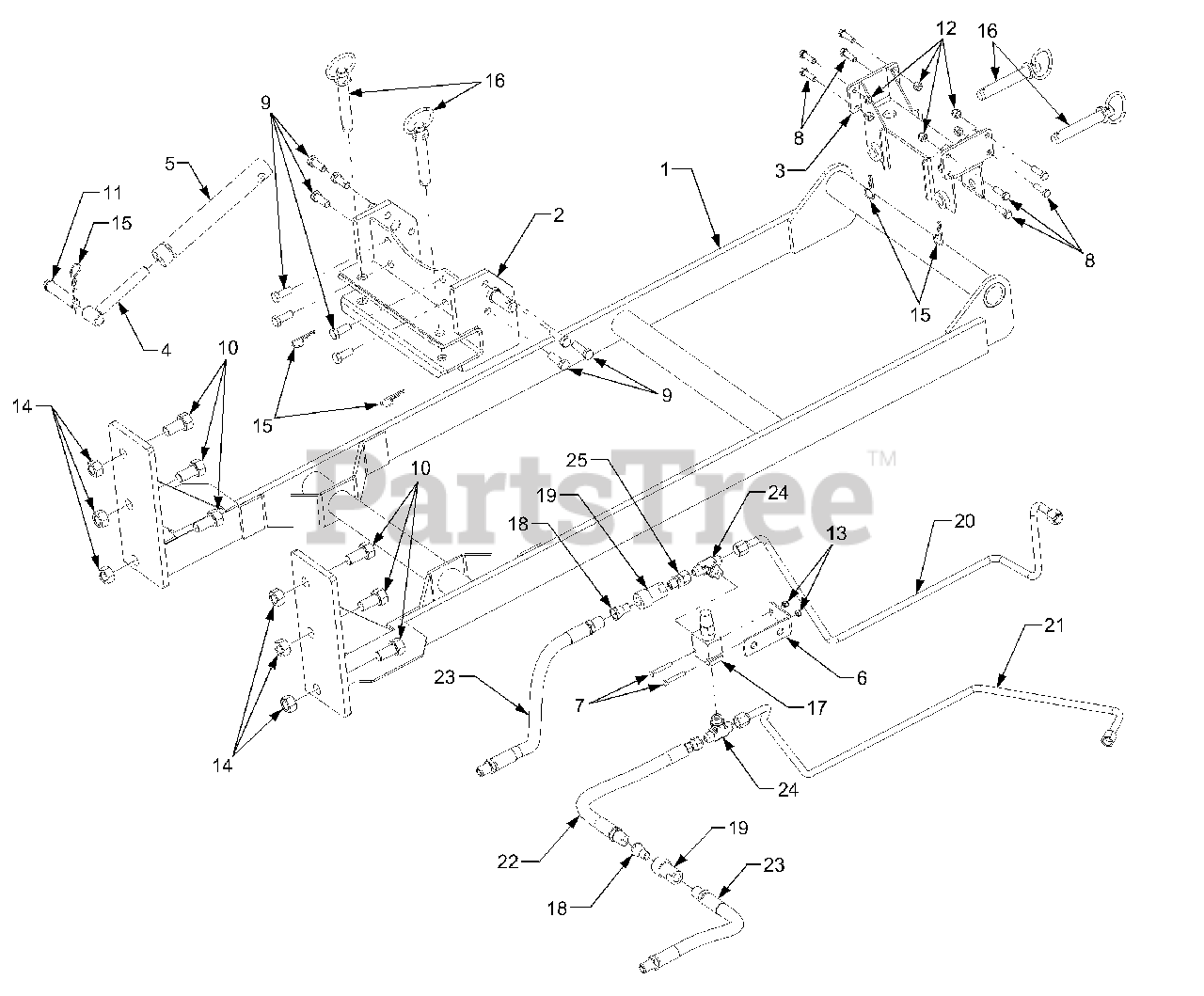

Backhoe Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0868-0637

Frame

$

$

Currently unavailable

2

Cub Cadet 603-0869-0637

Mounting Ass'y. Transmission

$

$

Currently unavailable

3

Cub Cadet 603-0870-0637

Latch Ass'y., Sub Frame

$

$

Currently unavailable

4

Cub Cadet 603-0941

Rod Ass'y., Top Link

$

$

Not available

5

Cub Cadet 603-0942-0637

Adjuster, Top Link

$

$

Currently unavailable

6

Cub Cadet 703-4098-0637

Bracket, Valve Mounting

$

$

Not available

7

Cub Cadet 710-0136

Screw, Hex Cap 1/4-20 x 1.75 GR5

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 710-0342

Screw, Hex Cap 3/8-16 x 1.25
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3032

Screw, Hex Cap 1/2-13 x 1.25 GR5

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3052

Screw, Hex Cap 3/4-16 x .75 GR5

$

$

Not available

11

Cub Cadet 711-1733

Pin, Clevis, .75 x 3.25

$

$

Not available

12

Cub Cadet 712-0130

Nut, Hex Insert Lock, 3/8-16 GR8

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20 GR8

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$9.49

$

In Stock, only 2 left!

0

15

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-7239

Pin, Linchpin 5.50

$

$

Not available

17

Cub Cadet 718-3146

Valve, Relief

$

$

Not available

18

Cub Cadet 727-3224

Coupling, Hydraulic - Male

$118.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 727-3225

Coupling, Hydraulic - Female

$94.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 727-3248

Tube, Hydraulic Return

$

$

Not available

21

Cub Cadet 727-3249

Tube, Hydraulic Pressure

$

$

Not available

22

Cub Cadet 727-3250

Hose, Hydraulic, 1/2 ID x 18

$

$

Not available

23

Cub Cadet 727-3251A

Hose, Hydraulic, 1/2 ID x 29.5

$

$

Not available

24

Cub Cadet 727-3253

Fitting, Orb Branch Tee

$

$

Not available

25

Cub Cadet 727-3254

Fitting, Swivel Connector

$

$

Not available
