621501x31NA - Scotts 21" Snow Thrower (2005) Auger Housing Parts Diagram

21" Snow Thrower

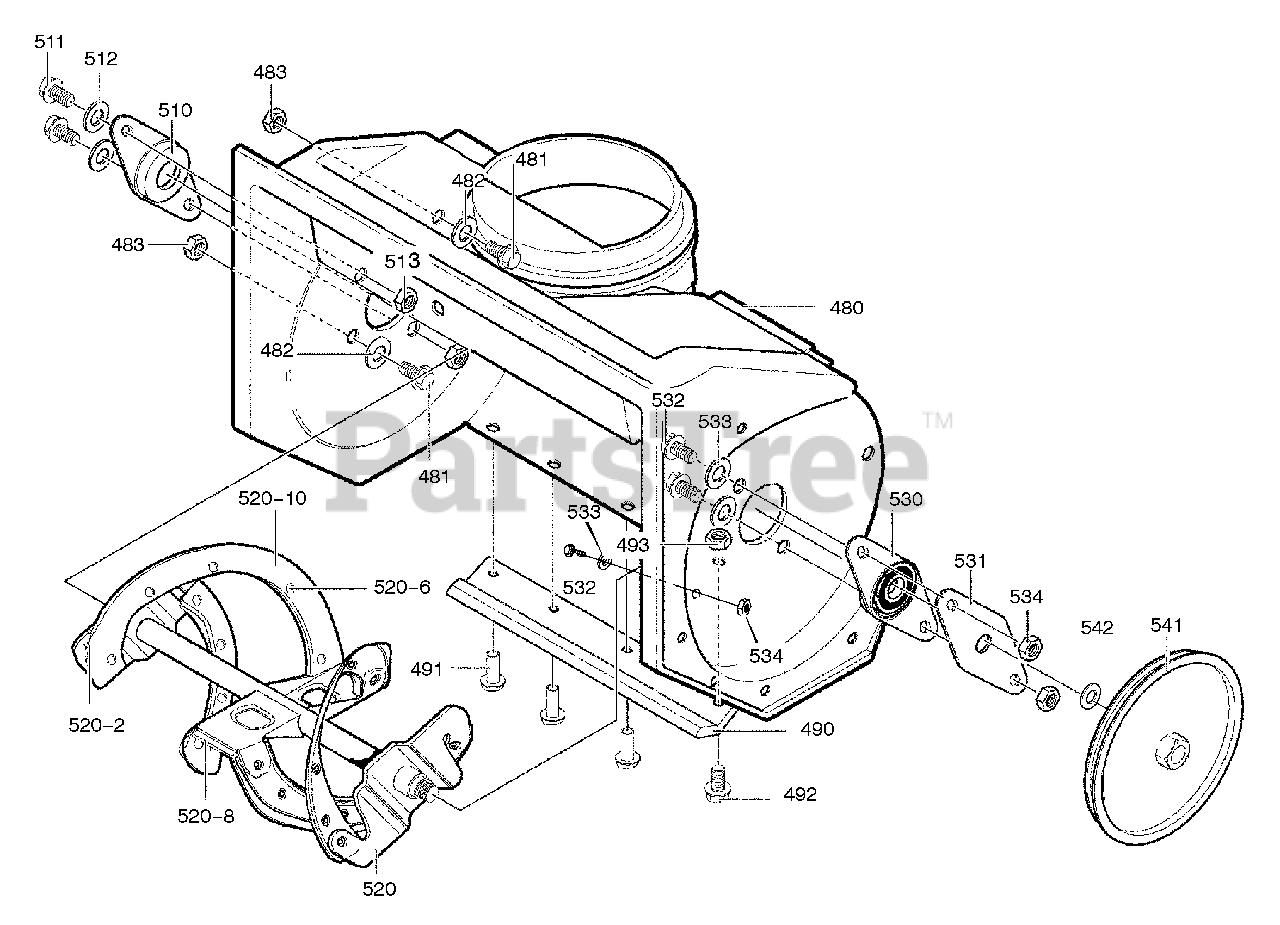

Auger Housing Parts Diagram

  • Title

480

Murray 340091MA

HOUSING, ASSEMBLY

$137.99

$

In Stock, only 1 left!

0

481

Murray 302628MA

SCREW, 1/4-20 X .75

$4.49

$

In Stock, Qty 6

0

482

Murray 71067MA

WASHER, FLAT .281 X .63 X .065

$4.49

$

In Stock, only 1 left!

0

483

Murray 15X143MA

NUT, HEX 1/4-20 YZ

$4.99

$

In Stock, only 4 left!

0

490

Murray 55323MA

BLADE, SCRAPER

$35.99

$

In Stock, only 1 left!

0

491

Murray 577707MA

RIVET, OVSET

$3.99

$

Usually ships in 2-12 days

0

492

Murray 302628MA

SCREW, 1/4-20 X .75

$4.49

$

In Stock, Qty 6

0

493

Murray 15X143MA

NUT, 1/4-20 YZ

$4.99

$

In Stock, only 4 left!

0

510

Murray 577023MA

BEARING, FLANGE

$5.99

$

In Stock, only 3 left!

0

511

Murray 710263MA

SCREW, 1/4-20 X 1.00

$3.99

$

Usually ships in 2-12 days

0

512

Murray 71067MA

WASHER, FLAT .281 X .63X.065

$4.49

$

In Stock, only 1 left!

0

513

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

520

Murray 327072MA

AUGER, ASSY

$185.99

$

In Stock, only 1 left!

0

520-2

Murray 302565MA

BLADE, AUGER

$28.99

$

In Stock, only 2 left!

0

520-6

Murray 49838MA

RIVET

$4.49

$

In Stock, Qty 20+

0

520-8

Murray 335992MA

BLADE, CENTER

$8.99

$

In Stock, Qty 8

0

520-10

Murray 307049E701

AUGER & BLADE SUPPORT

$185.99

$

In Stock, only 1 left!

0

530

Murray 583459MA

BEARING & PLATE ASSEMBLY

$27.99

$

Usually ships in 2-12 days

0

531

Murray 334287MA

PLATE, RETAINER

$7.49

$

In Stock, only 1 left!

0

532

Murray 579052MA

SCREW, 1/4-20 X .63

$9.99

$

In Stock, only 1 left!

0

533

Murray 71067MA

WASHER, FLAT .281X.63 X .065

$4.49

$

In Stock, only 1 left!

0

534

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

541

Murray 338965MA

PULLEY

$36.99

$

In Stock, only 1 left!

0

542

Murray 17X100MA

WASHER

$3.49

$

Usually ships in 2-12 days

0
