621501x31NA - Scotts 21" Snow Thrower (2005) Frame Components Assembly Parts Diagram

21" Snow Thrower

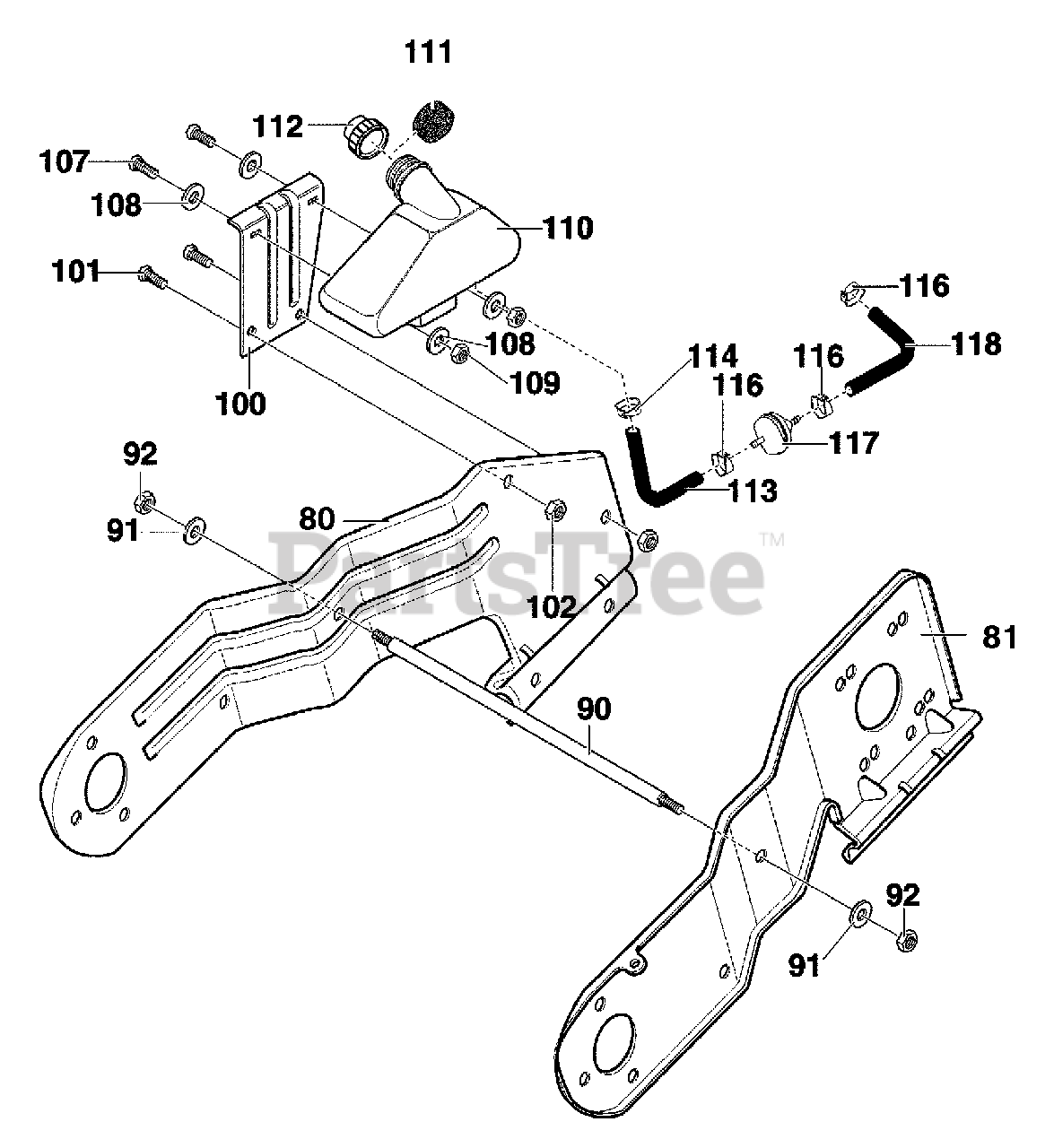

Frame Components Assembly Parts Diagram

  • Title

80

Murray 760272E701

FRAME, SIDE SUPT STEEL RH

$

$

Not available

81

Murray 760271E701MA

FRAME, SIDE SUPT STEEL LH

$64.99

$

In Stock, only 1 left!

0

90

Murray 760168

ROD, SUPPORT

$

$

Currently unavailable

91

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

92

Murray 71044

NUT, 3/8-16 HEX

$3.49

$

Usually ships in 2-12 days

0

100

Murray 333749E701

BRACKET, GAS TANK
(Superseded to 333749E701MA)

$15.99

$

Usually ships in 2-12 days

0

101

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

Usually ships in 2-12 days

0

102

Murray 73826

NUT, 1/4-20 HEX

$5.49

$

In Stock, Qty 6

0

107

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

Usually ships in 2-12 days

0

108

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

Usually ships in 2-12 days

0

109

Murray 73826

NUT, 1/420 HEX

$5.49

$

In Stock, Qty 6

0

110

Murray 333739MA

TANK, FUEL

$128.99

$

Usually ships in 2-12 days

0

111

Murray 762224

RING, FOAM FUEL TANK

$

$

Not available

112

Murray 340299MA

CAP, GAS

$13.99

$

Usually ships in 2-12 days

0

113

Murray 323363MA

TUBING 8 IN.

$8.49

$

Usually ships in 2-12 days

0

114

Murray 47345

CLAMP, HOSE SCREW
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

116

Murray 323387MA

CLAMP, HOSE

$4.49

$

Usually ships in 2-12 days

0

117

Murray 56679MA

FILTER IN LINE
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

118

Murray 335906MA

TUBING, 6 IN.

$6.99

$

Usually ships in 2-12 days

0
