621520x43NA - Yard King 21" Snow Thrower (2003) Engine Assembly Parts Diagram

21" Snow Thrower

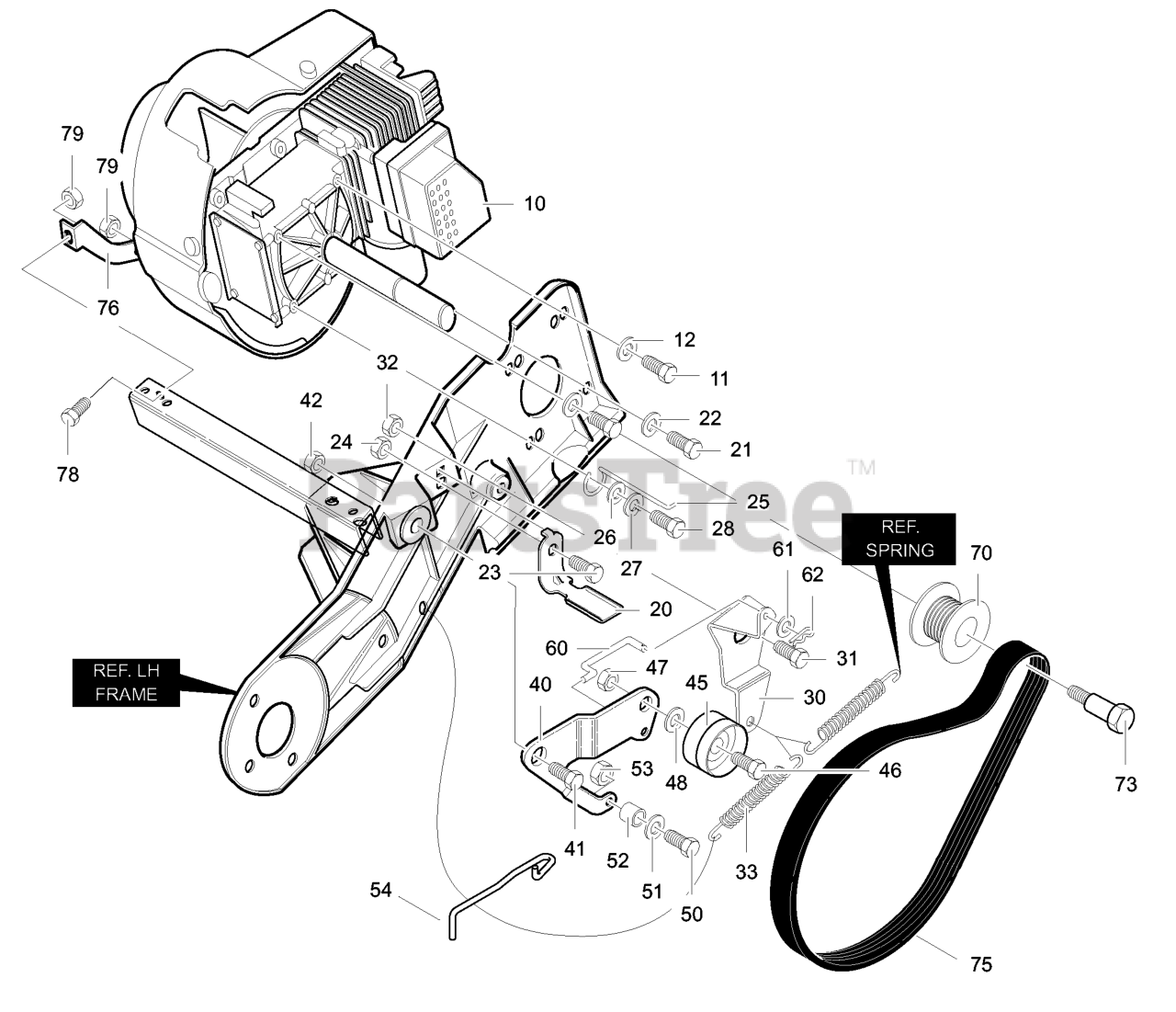

Engine Assembly Parts Diagram

  • Title

10

ENGINE

$

$

Not available

11

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

12

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

20

Murray 333970MA

LF PAD, BRAKE

$5.49

$

Usually ships in 2-12 days

0

21

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

22

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

23

Murray 579052

SCREW,1/4-20X.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

24

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

25

Murray 334079MA

GUIDE, BELT

$7.99

$

Usually ships in 2-12 days

0

26

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

27

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

28

Murray 710312

SCREW

$8.49

$

Usually ships in 2-12 days

0

30

Murray 313444

ARM, IDLER
(Superseded to 313444MA)

$

$

Not available

31

Murray 333594MA

BOLT

$20.99

$

In Stock, only 2 left!

0

32

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

33

Murray 313473MA

SPRING, EXTENSION

$6.49

$

In Stock, only 1 left!

0

40

Murray 320077MA

LF ARM, IDLER

$9.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$20.99

$

In Stock, only 2 left!

0

42

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 302637MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

47

Murray 590

NUT
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

48

Murray 301188MA

WASHER, FLAT

$2.99

$

Usually ships in 2-12 days

0

50

Murray 180044

SCREW, 1/4-20X2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

51

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

52

Murray 1501010MA

ROLLER, PINCH

$6.49

$

Usually ships in 2-12 days

0

53

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

54

Murray 1501009MA

WIRE, BRAKE

$9.99

$

In Stock, only 1 left!

0

60

Murray 313436MA

ROD, CLUTCH

$5.49

$

Usually ships in 2-12 days

0

61

Murray 414106

WASHER, FLAT
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

62

Murray 121223

PIN, COTTER
(Superseded to 121223MA)

$3.49

$

Usually ships in 2-12 days

0

70

Murray 333784MA

PULLEY

$25.99

$

Usually ships in 2-12 days

0

73

Murray 333805MA

BOLT, SHOULDER

$4.99

$

Usually ships in 2-12 days

0

75

Murray 333721MA

BELT

$

$

Not available

76

Murray 330544

BRACKET, SUPPORT

$

$

Not available

78

Murray 48901

SCREW
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

79

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

--

Murray F-031069C

BOOK, INSTRUCTION

$

$

Currently unavailable
