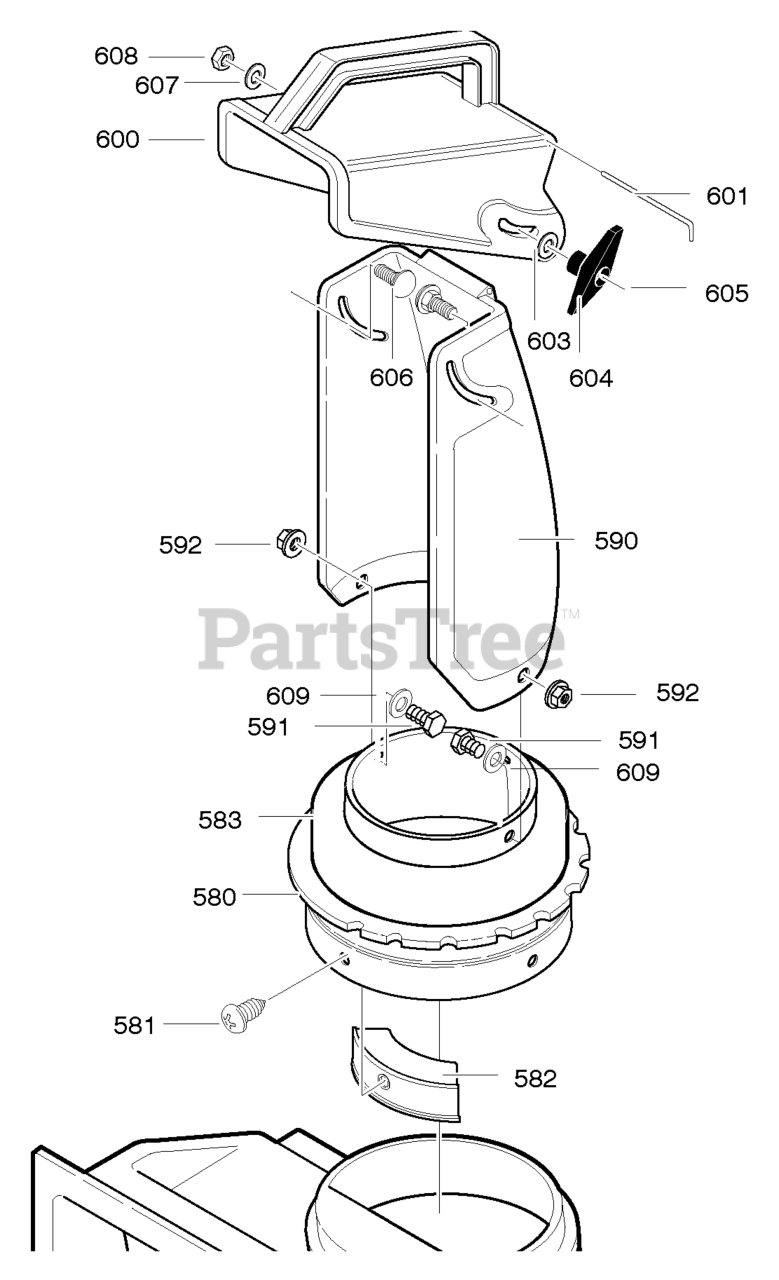

621520x43NB - Yard King 21" Snow Thrower (2004) Discharge Chute Parts Diagram

21" Snow Thrower

Discharge Chute Parts Diagram

  • Title

580

Murray 333859MA

RING, CHUTE

$

$

Not available

581

Murray 711752MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT, FOAM

$20.99

$

Usually ships in 2-12 days

0

590

Murray 305862MA

CHUTE, LOWER

$40.99

$

Usually ships in 2-12 days

0

591

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 6

0

592

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

593

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

600

Murray 305861MA

CHUTE, UPPER WITH HANDLE
(Superseded to 314704MA)

$40.99

$

In Stock, only 1 left!

0

601

Murray 310562MA

WIRE

$5.99

$

In Stock, only 1 left!

0

602

Murray 302843MA

BOLT, 5/16-18X1.25

$

$

Not available

603

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

604

Murray 57171

T-KNOB
(Superseded to 1501260MA)

$7.99

$

In Stock, only 2 left!

0

605

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

608

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

609

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0
