621520x43NB - Yard King 21" Snow Thrower (2004) Frame Components Assembly Parts Diagram

21" Snow Thrower

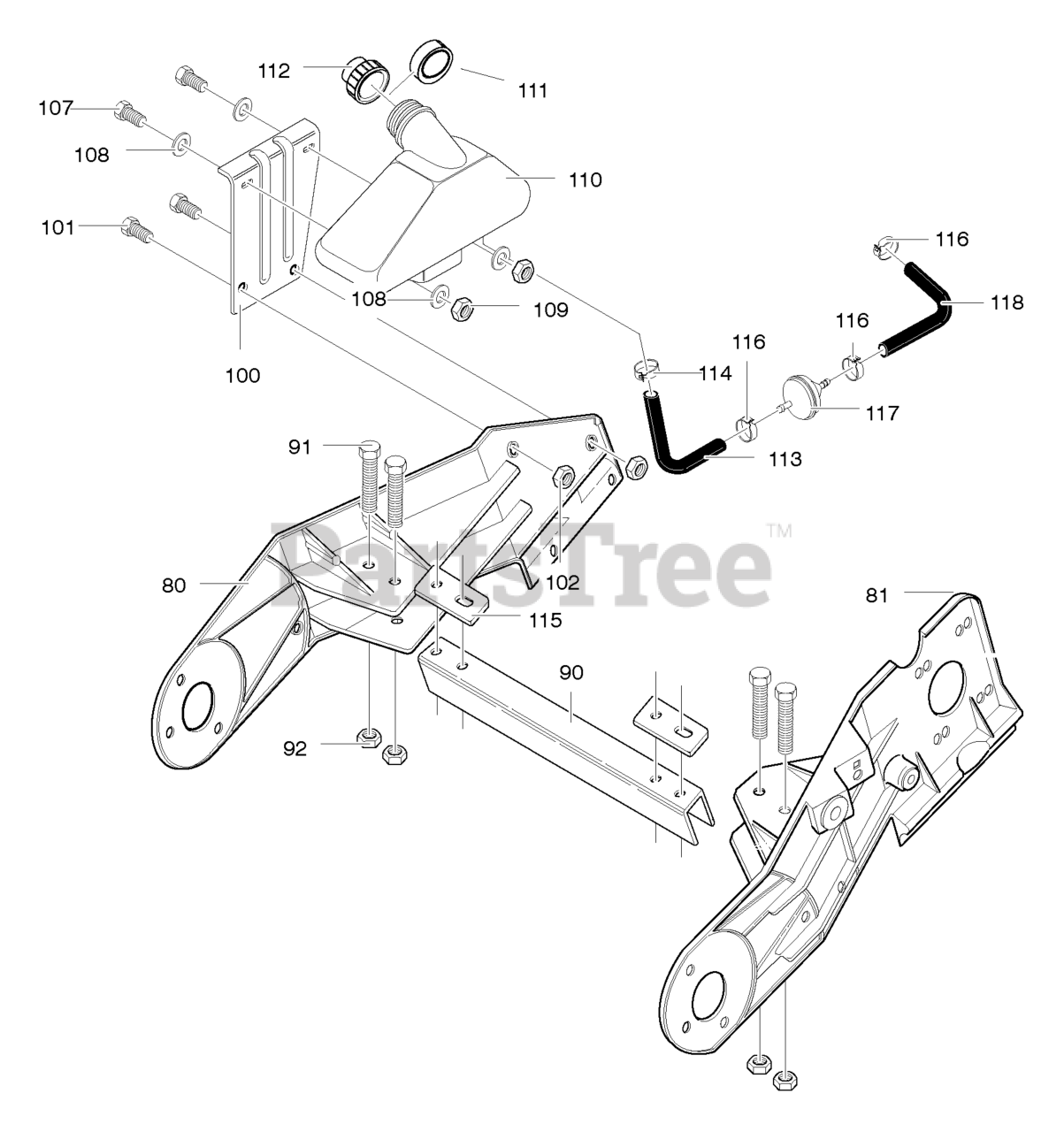

Frame Components Assembly Parts Diagram

  • Title

80

Murray 333769E701MA

FRAME, RIGHT SIDE

$75.99

$

In Stock, only 1 left!

0

81

Murray 333767E701

FRAME, LEFT SIDE

$

$

Currently unavailable

90

Murray 333987MA

CHANNEL, FRAME

$23.99

$

Usually ships in 2-12 days

0

91

Murray 180044

SCREW, 1/4-20X2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

92

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

100

Murray 333749E701

BRKT, FUEL TANK
(Superseded to 333749E701MA)

$14.99

$

Usually ships in 2-12 days

0

101

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 6

0

102

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

107

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 6

0

108

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

109

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

110

Murray 333739MA

TANK, FUEL 1.5QT

$120.99

$

Usually ships in 2-12 days

0

111

Murray 762224

RING, FUEL TANK

$

$

Not available

112

Murray 340299MA

CAP, FUEL

$13.99

$

Usually ships in 2-12 days

0

113

Murray 323363MA

TUBING

$7.99

$

Usually ships in 2-12 days

0

114

Murray 47345

CLAMP, HOSE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

115

Murray 335351

PLATE, SUPPORT
(Superseded to 335351MA)

$3.99

$

Usually ships in 2-12 days

0

116

Murray 323387MA

CLAMP, HOSE

$4.49

$

Usually ships in 2-12 days

0

117

Murray 56679MA

FILTER, IN-LINE
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

118

Murray 335906MA

TUBING

$6.49

$

Usually ships in 2-12 days

0
