621540x85NA - Murray 21" Snow Thrower (2003) Engine & Frame Assembly Parts Diagram

21" Snow Thrower

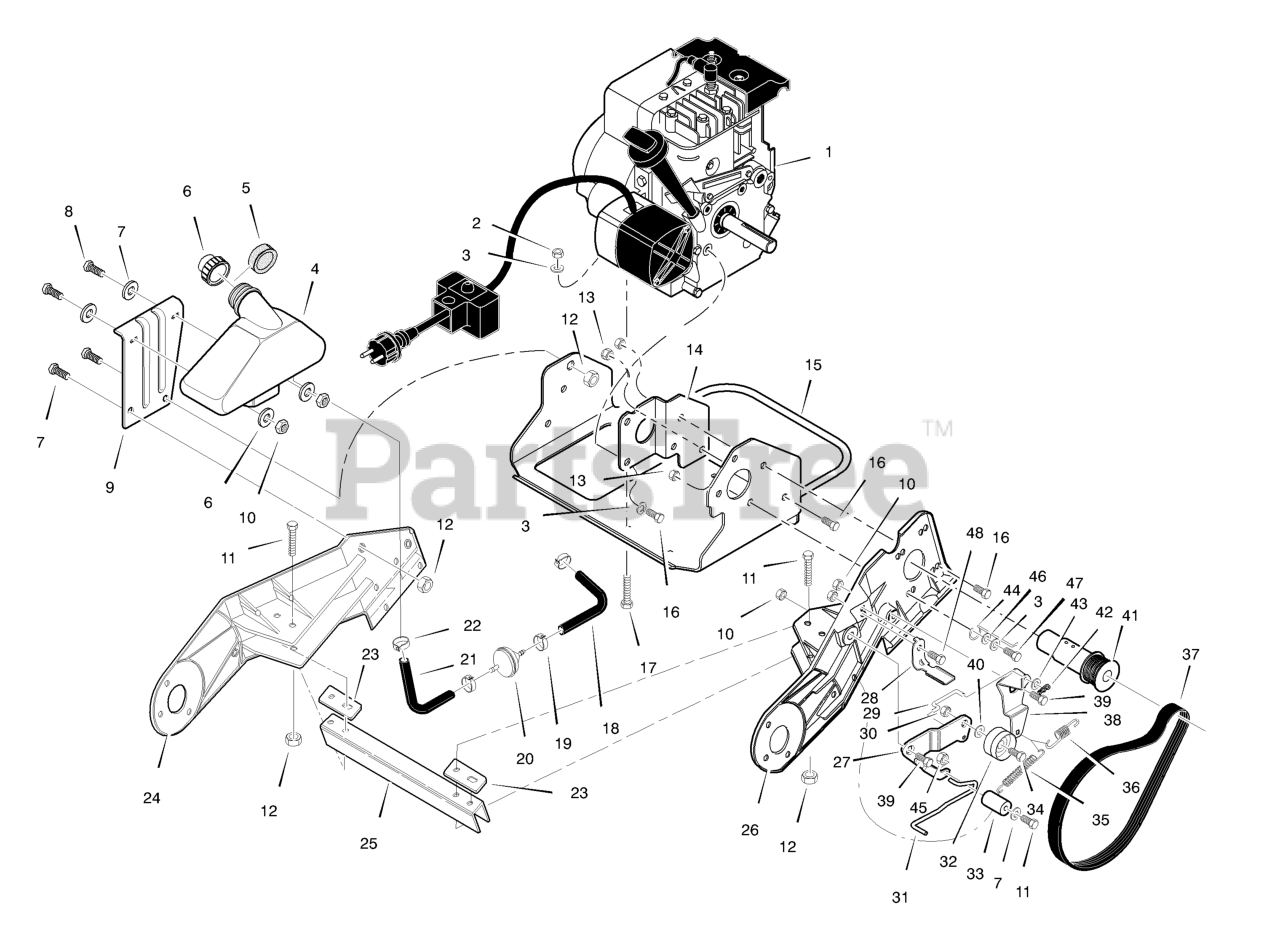

Engine & Frame Assembly Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Murray 71060

WASHER, SPTLK
(Superseded to 1501670MA)

$

$

Not available

4

Murray 333739MA

TANK, FUEL

$120.99

$

Usually ships in 2-12 days

0

5

Murray 762224

RING, FOAM FURL TANK

$

$

Not available

6

Murray 1501726MA

CAP, FUEL
(Superseded to 692046)

$5.49

$

In Stock, Qty 7

0

7

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

8

Murray 302628MA

SCREW, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 6

0

9

Murray 333749E701

BRACKET, FUEL TANK
(Superseded to 333749E701MA)

$14.99

$

Usually ships in 2-12 days

0

10

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

11

Murray 180044

SCREW, 1/4-20 x 2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 71034

NUT, 1/4-20 REGHEX
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

13

Murray 71391

NUT, 5/16-18 HEXCTRLK
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

14

Murray 1501703E701MA

BRACKET, ENGINE

$15.99

$

Usually ships in 2-12 days

0

15

Murray 1501744E701

CRADLE, WELDMENT
(Superseded to 1501744E701MA)

$165.99

$

Usually ships in 2-12 days

0

16

Murray 180077MA

BOLT, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Murray 001X81MA

BOLT, ENGINE MOUNT

$3.49

$

In Stock, only 2 left!

0

18

Murray 335906MA

TUBING, FUEL LINE 6 IN.

$6.49

$

Usually ships in 2-12 days

0

19

Murray 323387MA

CLAMP, FUEL LINE

$4.49

$

Usually ships in 2-12 days

0

20

Murray 298090S

FILTER, FUEL LINE

$

$

Not available

21

Murray 323363MA

TUBING, FUEL LINE 8 IN.

$7.99

$

Usually ships in 2-12 days

0

22

Murray 47345

CLAMP, HOSE SCREW
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

23

Murray 335351

PLATE, BOLTING SUPPORT
(Superseded to 335351MA)

$3.99

$

Usually ships in 2-12 days

0

24

Murray 1501700E701

FRAME, RH. SIDE STEEL SUPT.

$

$

Currently unavailable

25

Murray 333987MA

CHANNEL, FRAME SUPPORT

$23.99

$

Usually ships in 2-12 days

0

26

Murray 333767

FRAME, LH. SIDE STEEL SUPT.

$67.99

$

Usually ships in 2-12 days

0

27

Murray 320077MA

LF ARM, IDLER BRACKET

$9.99

$

Usually ships in 2-12 days

0

28

Murray 333970MA

LF PAD, BRAKE

$5.49

$

Usually ships in 2-12 days

0

29

Murray 313436MA

ROD, CLUTCH LINKAGE

$5.49

$

Usually ships in 2-12 days

0

30

Murray 590

NUT, 3/8-16 JAM CTRLK
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

31

Murray 1501009MA

WIRE, BRAKE

$9.99

$

In Stock, only 1 left!

0

32

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

33

Murray 1501010MA

ROLLER, PINCH

$6.49

$

Usually ships in 2-12 days

0

34

Murray 302637MA

SCREW, 3/8-16 x 1.50

$3.99

$

Usually ships in 2-12 days

0

35

Murray 313473MA

SPRING, EXTENSION

$6.49

$

In Stock, only 1 left!

0

36

Murray 313471MA

SPRING, EXTENSION

$4.99

$

In Stock, only 1 left!

0

37

Murray 333721MA

BELT

$

$

Not available

38

Murray 313444

ARM, IDLER PIVOT
(Superseded to 313444MA)

$

$

Not available

39

Murray 333594MA

BOLT

$20.99

$

In Stock, only 2 left!

0

40

Murray 301188MA

WASHER, FLAT

$2.99

$

Usually ships in 2-12 days

0

41

Murray 1501702MA

PULLEY, ENGINE

$87.99

$

Usually ships in 2-12 days

0

42

Murray 121223

PIN, COTTER
(Superseded to 121223MA)

$3.49

$

Usually ships in 2-12 days

0

43

Murray 414106

WASHER, FLAT #8
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

44

Murray 334079MA

GUIDE, BELT

$7.99

$

Usually ships in 2-12 days

0

45

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

46

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

47

Murray 710312

SCREW

$8.49

$

Usually ships in 2-12 days

0

48

Murray 579052

SCREW, 1/4-20 x 0.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0
