622594x85NA - Murray 22" Snow Thrower (2004) Frame And Fuel Tank Parts Diagram

22" Snow Thrower

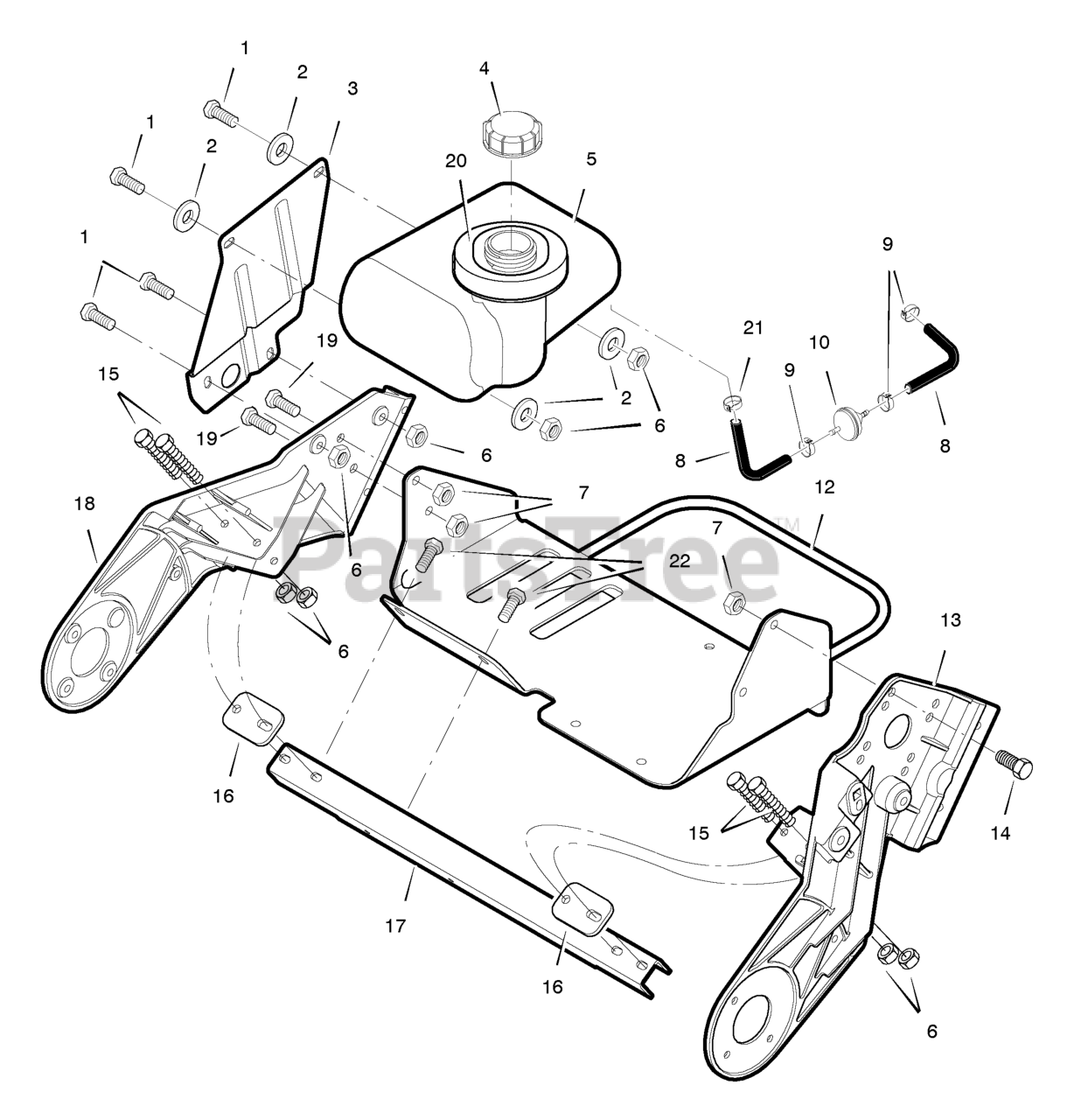

Frame And Fuel Tank Parts Diagram

  • Title

1

Murray 302628MA

Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 6

0

2

Murray 71067

Washer
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

3

Murray 1501876E701MA

Bracket, Fuel Tank

$29.99

$

Usually ships in 2-12 days

0

4

Murray 1501726MA

Cap, Fuel Tank
(Superseded to 692046)

$5.49

$

In Stock, Qty 8

0

5

Murray 1501875MA

Tank, Fuel

$50.99

$

Usually ships in 2-12 days

0

6

Murray 73826

Nut, Hex 1/4-20

$4.99

$

In Stock, Qty 20+

0

7

Murray 71391

Nut, Hex 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

8

Murray 1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

9

Murray 323387MA

Clamp, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

10

Murray 298090S

Filter, Fuel Line

$5.49

$

In Stock, Qty 20+

0

12

Murray 1501849E701

Cradle Assembly, Engine
(Superseded to 1501849E701MA)

$222.99

$

Usually ships in 2-12 days

0

13

Murray 1501872E701MA

Frame, LH

$

$

Not available

14

Murray 48901

Screw, 5/16-18 x .63
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

15

Murray 180044

Screw, 1/4-20 x 2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

16

Murray 335351

Plate, Mounting Support
(Superseded to 335351MA)

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1501851MA

Support, Frame

$34.99

$

Usually ships in 2-12 days

0

18

Murray 1501871E701MA

Frame, RH
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

19

Murray 180077MA

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

20

Murray 1501707MA

Ring, Foam

$6.49

$

Usually ships in 2-12 days

0

21

Murray 47345

Clamp, Fuel Line -Screw Type
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

22

Murray 310169MA

Screw, 1/4-20 x .625
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0
