624 (190-624-000) - Yard-Man Snow Blower Attachment Drive Assembly Parts Diagram

Snow Blower Attachment

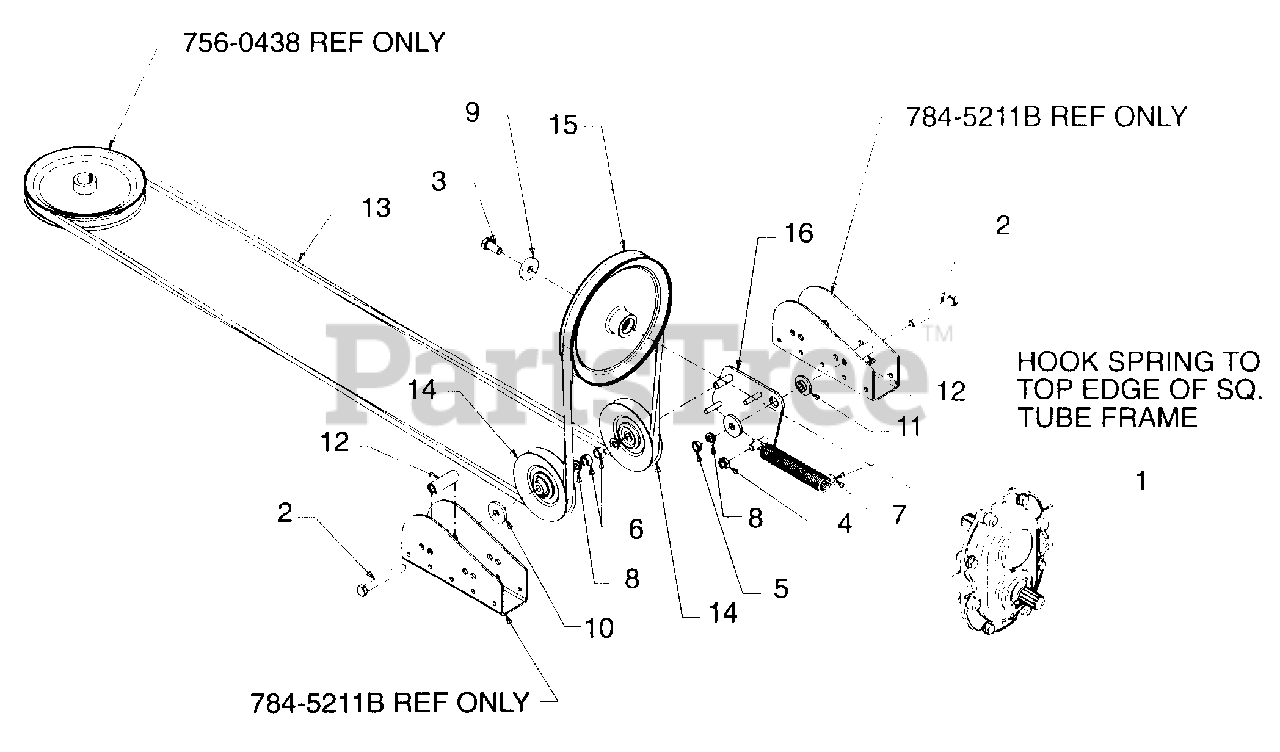

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 684-0113

BOX ASM:SPKT
(Superseded to 984-0113A)

$

$

Not available

2

Cub Cadet 710-0521

HHCS:3/8-16:3.00:GR8:STD

$5.49

$

In Stock, only 3 left!

0

3

Cub Cadet 710-0696

HHCS:3/8-24:.875:GR8:STD

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0116

NUT:JAM:3/8-24:INS LOCK

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet 712-0266

HEX CENT L-JAM NUT 3/8-16
(Superseded to 712-0266A)

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 712-3017

NUT:3/8-16:GRB:HX

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 732-0491

SPR:EXTN:.87 DIA X 6.00 LG

$

$

Not available

8

Cub Cadet 736-0169

WASH:LOCK:3/8:REGULAR DUTY

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 736-0235

FL-WASH .406 ID X 1.25 OD
(Superseded to 736-0247)

$10.99

$

In Stock, Qty 10

0

10

Cub Cadet 736-0247

FLAT WASHER .406 ID X 1 1/4 OD

$10.99

$

In Stock, Qty 10

0

11

Cub Cadet 738-0347

SHLD SPACER .625 ID X .169
(Superseded to 938-0347)

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet 750-0668

SPACER .32 ID X .625 OD X 1.74

$

$

Not available

13

Cub Cadet 754-0458

BELT:V TYP:A SECT X 126.0 POLY
(Superseded to 954-0458)

$89.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 756-0487

V-BELT IDLER-.38 ID X 4.0 DIA

$51.99

$

In Stock, Qty 5

0

15

Cub Cadet 756-0496

PUL:DR:7.00 DIA

$

$

Not available

16

Cub Cadet 784-5200

BRKT ASM:IDLR

Variations

784-5200-0637

Cub Cadet 784-5200-0637

IDLER BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$
