6240900x196A (1695425) - Murray 24" Snow Thrower (2007) Engine Parts Diagram

24" Snow Thrower

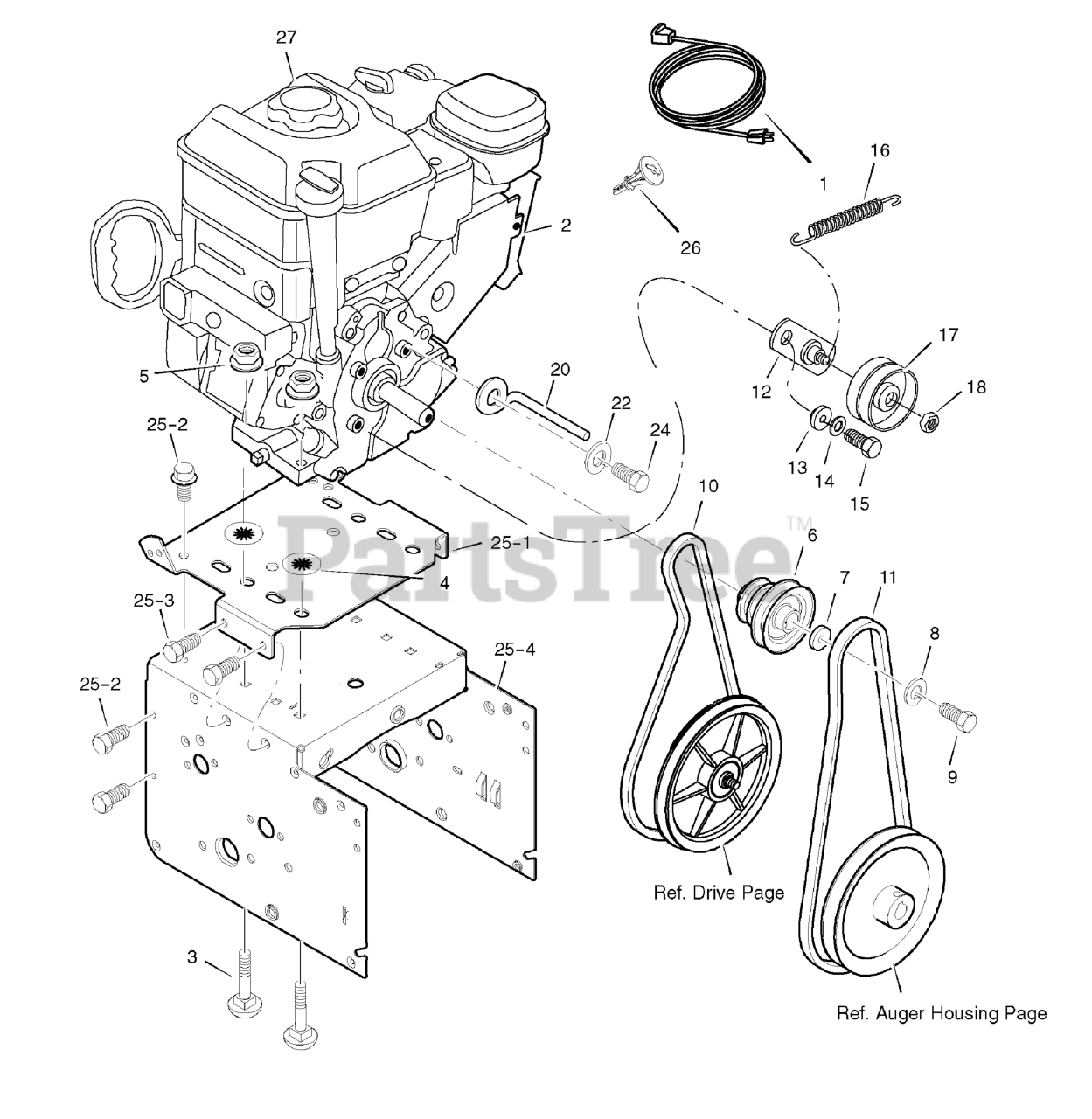

Engine Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$42.99

$

In Stock, only 1 left!

0

2

ENGINE

Note: (12Z3140110E1)

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, only 4 left!

0

4

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026MA

NUT 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

6

Murray 1501109MA

PULLEY, ENGINE

$43.99

$

In Stock, only 2 left!

0

7

Murray 17X146MA

WASHER
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 017X48MA

WASHER .39ID

$8.99

$

Usually ships in 2-12 days

0

9

Murray 910828MA

SCREW, 5/16-24 X 1.00
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

10

Murray 1733324SM

V-BELT, 3L, 33.13

$19.99

$

In Stock, only 1 left!

0

11

Murray 585416MA

BELT, V 4L

$23.99

$

In Stock, only 3 left!

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.99

$

In Stock, only 2 left!

0

14

Murray 71060MA

WASHER, SPLIT
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

15

Murray 710097MA

SCREW 5/16-24 X 0.75

$4.49

$

Usually ships in 2-12 days

0

16

Murray 53704MA

SPRING, IDLER TRACTION DRIVE

$8.99

$

In Stock, only 2 left!

0

17

Murray 1502120MA

PULLEY, IDLER

$23.99

$

In Stock, only 2 left!

0

18

Murray 590MA

NUT, JAM 3/8-16
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

22

Murray 71060MA

WASHER .31 X .58 X .08
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

24

Murray 710097MA

SCREW, 5/16-24 X 0.75

$4.49

$

Usually ships in 2-12 days

0

25

FRAME, MOTORBOX (5-11HP)

$

$

Not available

25-1

Murray 1740574WMA

PLATE, ENGINE MOUNT

$

$

Not available

25-2

Murray 310169MA

SCREW, TAP 1/4-20 X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

25-3

Murray 25X020MA

SCREW, TAP 5/16-18 X .50

$5.49

$

In Stock, Qty 6

0

25-4

Murray 1740572WMA

FRAME, MOTOR BOX

$

$

Not available

26

Murray 794696

KEY, BRIGGS ENGINE

$8.49

$

In Stock, only 2 left!

0

27

Murray 792647

CAP, GAS
(Superseded to 795027)

$10.99

$

In Stock, Qty 16

0

--

Murray 1741627

OWNER'S MANUAL

$

$

Currently unavailable
