624501x85A - Murray 24" Snow Thrower (2003) Panel Console Parts Diagram

24" Snow Thrower

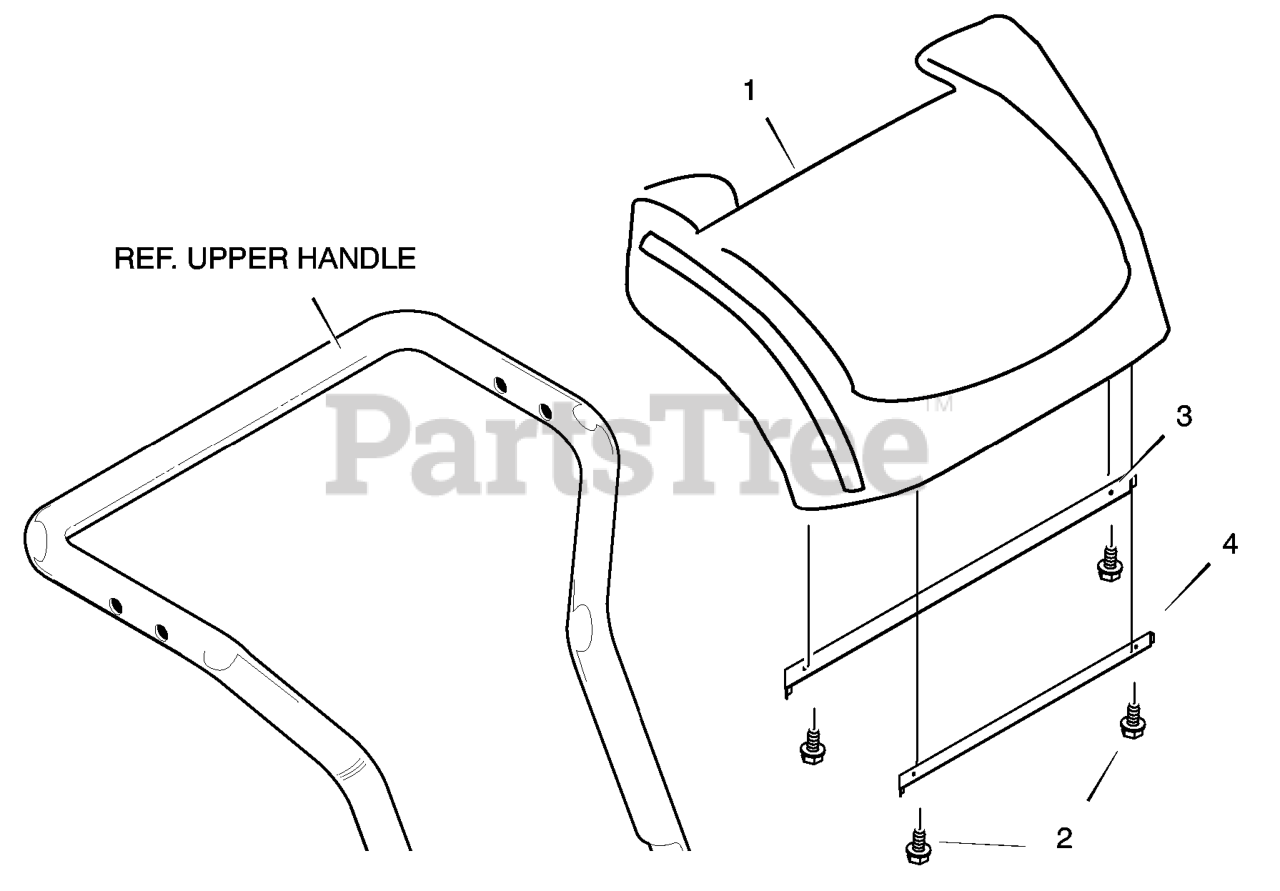

Panel Console Parts Diagram

  • Title

1

Murray 1501650MA

PANEL, CONSOLE

$

$

Not available

2

Murray 316042MA

SCREW, 10 x 0.62

$4.49

$

Usually ships in 2-12 days

0

3

Murray 1501649E701

BRACKET, HANDLE COVER -TOP

$17.99

$

Usually ships in 2-12 days

0

4

Murray 1501648E701

BRACKET, HANDLE COVER -BOTTOM

$18.99

$

Usually ships in 2-12 days

0
