624515x4B - Murray 24" Snow Thrower (2000) Discharge Chute Parts Diagram

24" Snow Thrower

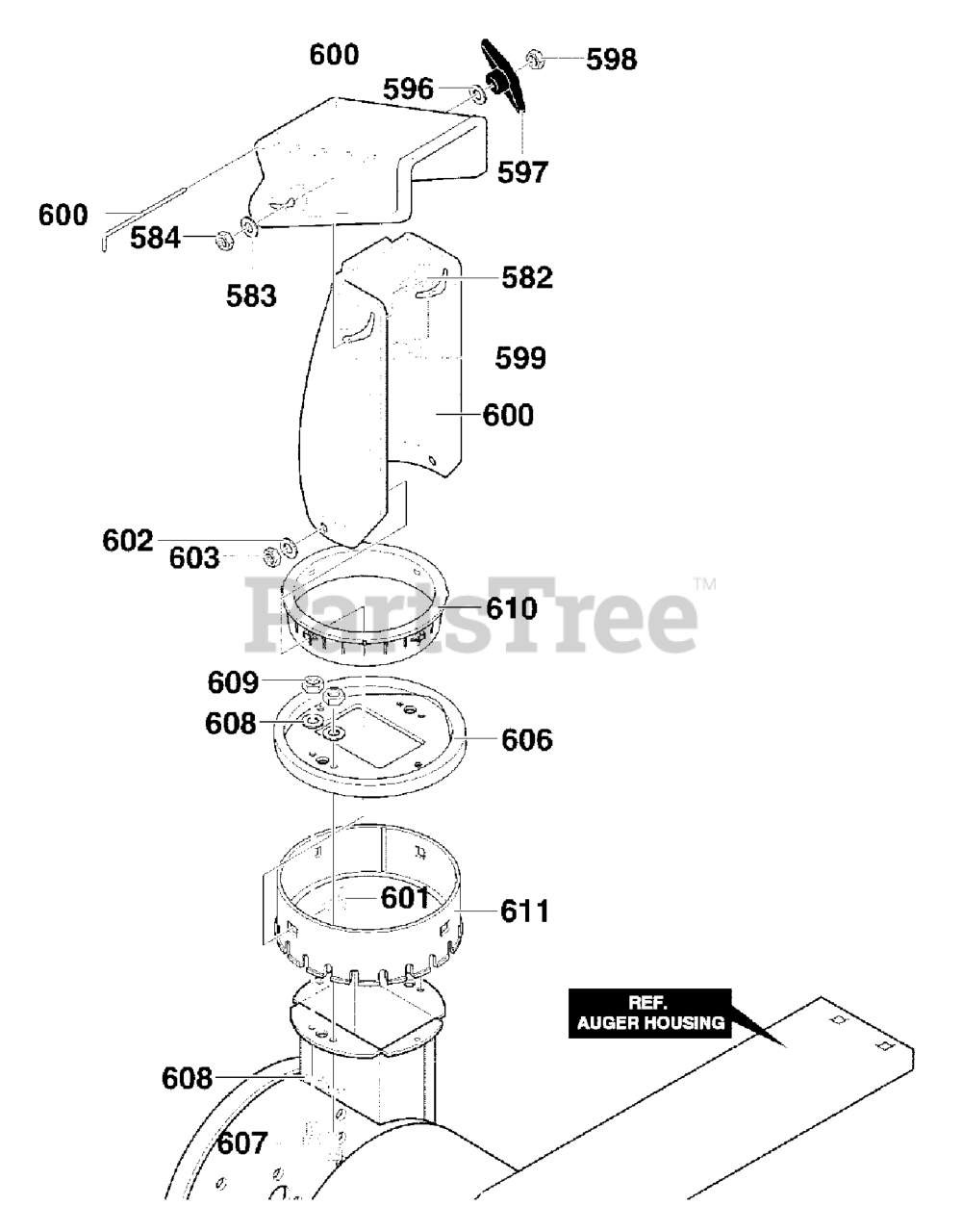

Discharge Chute Parts Diagram

  • Title

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

583

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

584

Murray 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Not available

596

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

597

Murray 13527

KNOB, T 3.00

$

$

Not available

598

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 302843MA

BOLT, 5/16-18X1.25 CARR.

$

$

Not available

600

Murray 762222MA

CHUTE ASSEMBLY

$51.99

$

In Stock, Qty 20+

0

601

Murray 586280

BOLT, 5/16-18 X1.00

$

$

Not available

602

Murray 120393

WASHER, FLAT .349 X .69 X .066

$

$

Not available

603

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 8

0

606

Murray 585214-853

CHUTE COLLAR

$

$

Currently unavailable

607

Murray 302628MA

SCREW, 1/4-20 X .75

$4.49

$

In Stock, Qty 6

0

608

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 8

0

611

Murray 585193MA

RETAINER RING OUTER

$29.99

$

In Stock, Qty 10

0
