624604x43B - Yard King 24" Snow Thrower (2004) Chute Rod Parts Diagram

24" Snow Thrower

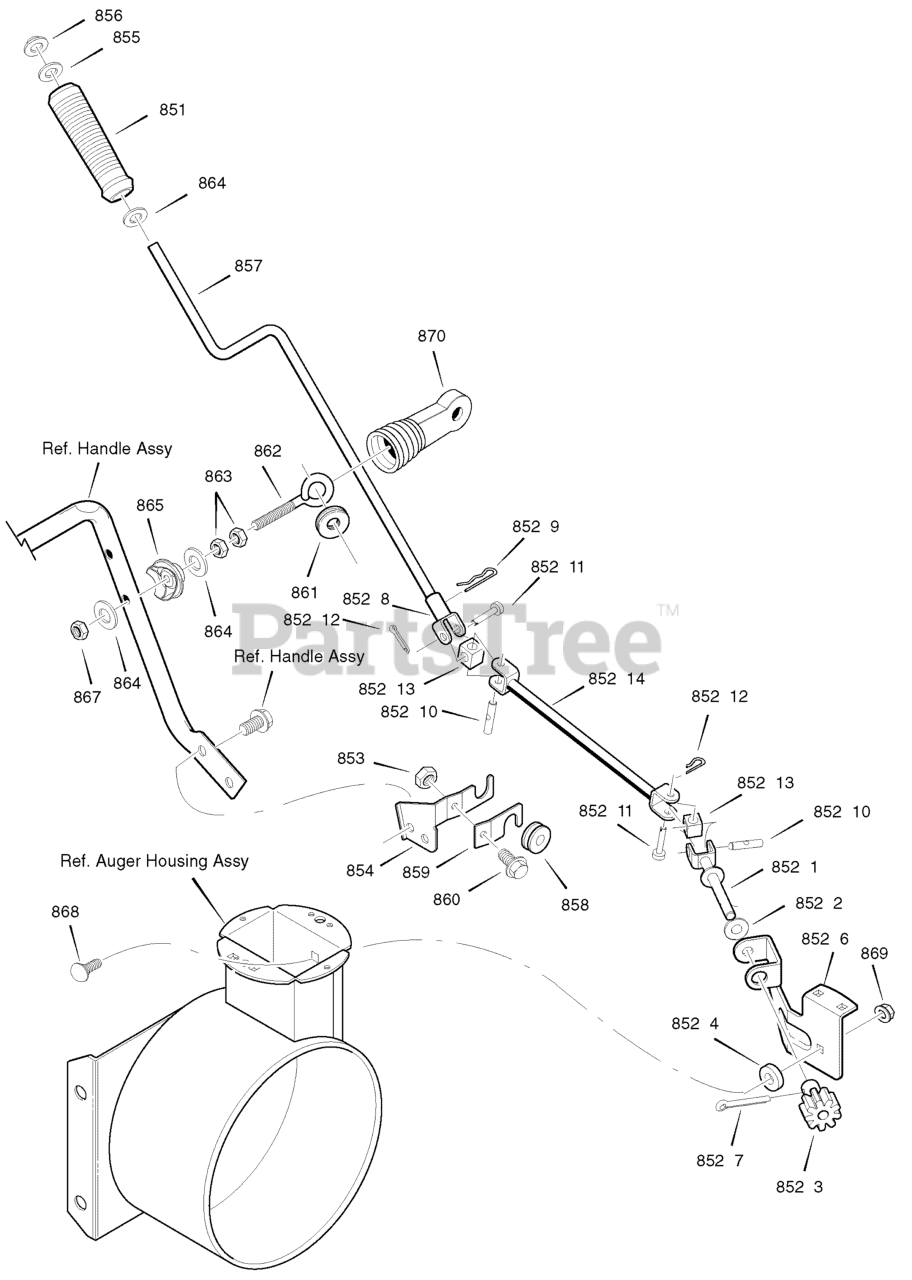

Chute Rod Parts Diagram

  • Title

851

Murray 307399

GRIP, CHUTE CRANK ROD

$9.99

$

In Stock, only 1 left!

0

852?1

Murray 1501309 YZ

ASSEMBLY, YOKE & ROD

$

$

Not available

852?2

Murray 313431

WASHER, CURVED SPRING
(Superseded to 313431MA)

$4.99

$

In Stock, only 1 left!

0

852?3

Murray 1501067

GEAR, CHUTE ROTATION 9T
(Superseded to 1501067MA)

$17.99

$

In Stock, only 3 left!

0

852?4

Murray 17X170

WASHER
(Superseded to 17X170MA)

$

$

Not available

852?6

Murray 1501306E701

BRACKET, GEAR MOUNT

$37.99

$

In Stock, only 1 left!

0

852?7

Murray 579493

PIN, COTTER
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852?8

Murray 1501075 YZ

ASSEMBLY, YOKE ADAPTER YZ
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

852?9

Murray 711682

PIN, HAIR

$7.49

$

In Stock, only 1 left!

0

852?10

Murray 578060

PIN, UNIVERSAL JOINT
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852?11

Murray 578309

PIN, CLEVIS
(Superseded to 578309MA)

$5.49

$

Usually ships in 2-12 days

0

852?12

Murray 1501293

PIN, HAIR
(Superseded to 1501125MA)

$66.99

$

Usually ships in 2-12 days

0

852?13

Murray 578063

HOUSING, UNIVERSAL
(Superseded to 578063MA)

$5.49

$

In Stock, Qty 10

0

852?14

Murray 1501081 YZ

CRANK, LOWER CHUTE

$

$

Currently unavailable

853

Murray 73826

NUT 1/4-20 x 1/2

$4.99

$

In Stock, Qty 20+

0

854

Murray 761773E701

BRACKET, SUPPORT CHUTE

$

$

Currently unavailable

855

Murray 309312

FLATWASHER

$4.49

$

In Stock, only 3 left!

0

856

Murray 73664

NUT, PUSH ON 3/8"
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

857

Murray 1501116 YZ

CRANK, ASSY CHUTE

$

$

Currently unavailable

858

Murray 339534

GROMMET

$1.99

$

Usually ships in 2-12 days

0

859

Murray 339507E701

BRACKET, MATING CHUTE

$1.99

$

Usually ships in 2-12 days

0

860

Murray 313686

BOLT 1/4-20 X 1/2

$3.99

$

In Stock, only 2 left!

0

861

Murray 148

GROMMET, EYE BOLT
(Superseded to 148MA)

$

$

Not available

862

Murray 581618

EYE BOLT 3/8-16X6.00

$5.49

$

Usually ships in 2-12 days

0

863

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Murray 71072

FLATWASHER .406X.81X.066

$

$

Not available

865

Murray 309344

ADAPTER, BOOT

$

$

Not available

867

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

868

Murray 002X98

BOLT, CARRIAGE 1/4-20 X 1.00
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

869

Murray 15X145

NUT

$4.49

$

In Stock, Qty 20+

0

870

Murray 308145

BOOT, EYE BOLT

$8.99

$

Usually ships in 2-12 days

0
