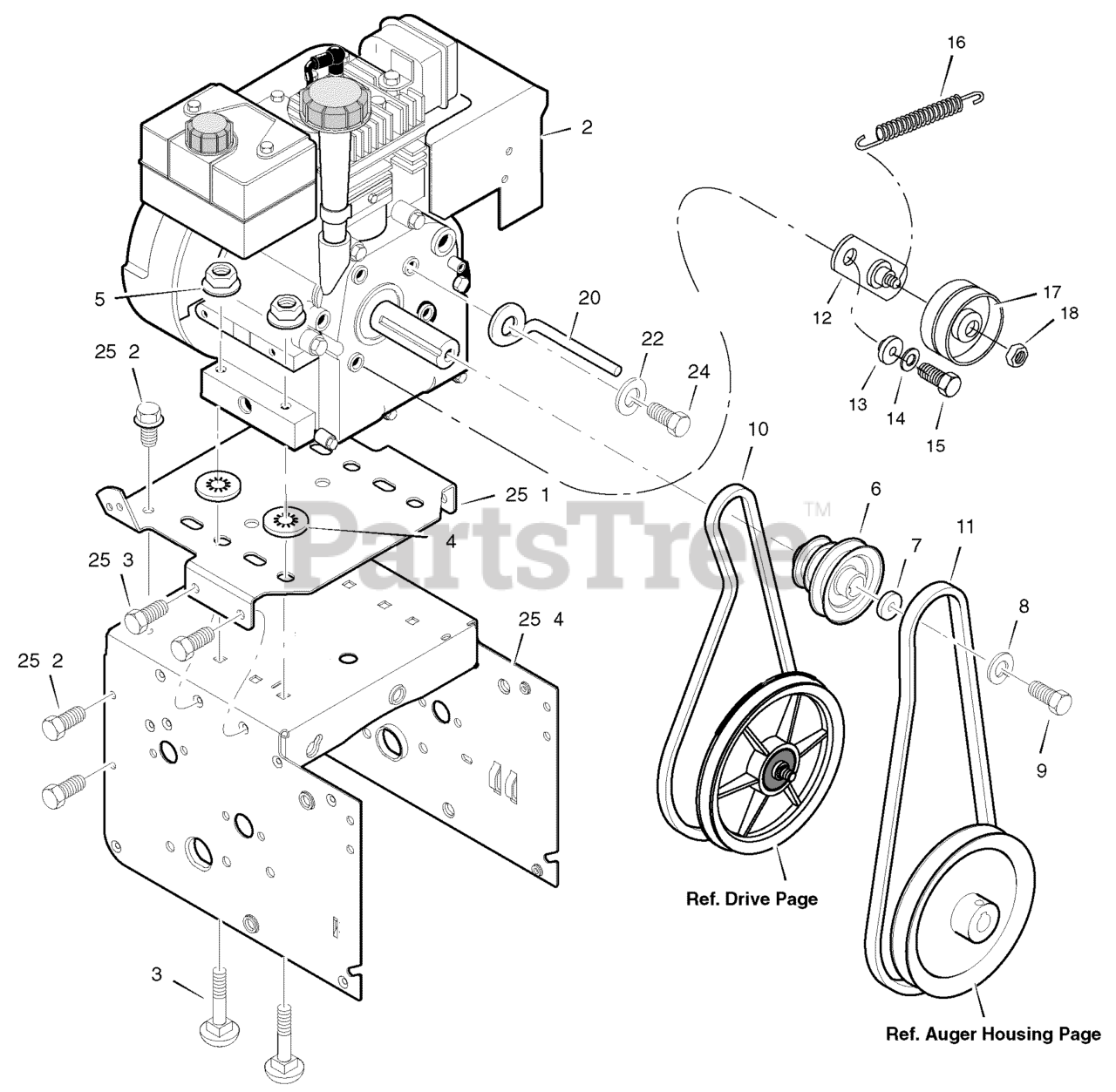

624604x43B - Yard King 24" Snow Thrower (2004) Engine Parts Diagram

24" Snow Thrower

Engine Parts Diagram

  • Title

2

ENGINE *

$

$

Not available

3

Murray 002X97

BOLT, CARRIAGE 5/16-18
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

4

Murray 028X76

RETAINER, PUSH
(Superseded to 028X76MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 710026

NUT 5/16-18

$

$

Not available

6

Murray 1501109

PULLEY, ENGINE
(Superseded to 1501109MA)

$41.99

$

In Stock, Qty 6

0

7

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

8

Murray 71063

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

9

Murray 71015

SCREW, 3/8-24 x 1.00

$

$

Not available

10

Murray 579932

BELT, DRIVE
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 37X120

BELT, AUGER

$22.99

$

In Stock, Qty 14

0

12

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065

BUSHING, IDLER BRACKET
(Superseded to 1501065MA)

$5.49

$

In Stock, Qty 6

0

14

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

15

Murray 25X021

SCREW 5/16-24 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Murray 53704

SPRING, IDLER TRACTION DRIVE
(Superseded to 53704MA)

$8.49

$

In Stock, only 4 left!

0

17

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, only 1 left!

0

18

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

20

Murray 1501201

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 71060

WASHER .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

24

Murray 710097

SCREW, 5/16-24 x 0.75

$10.99

$

In Stock, only 1 left!

0

25

FRAME, MOTORBOX (5-11HP)

$

$

Not available

25?1

Murray 1501062E735

PLATE, ENGINE MOUNT

$

$

Currently unavailable

25?2

Murray 310169

SCREW, TAP 1/4-20 X .63
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

25?3

Murray 25X020

SCREW, TAP 5/16-18 X .50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

25?4

Murray 1501049E735

FRAME, MOTOR BOX

$94.99

$

Usually ships in 2-12 days

0

--

Murray F-0410125L

OWNER'S MANUAL

$

$

Currently unavailable
