624604x43B - Yard King 24" Snow Thrower (2004) Gear Case Parts Diagram

24" Snow Thrower

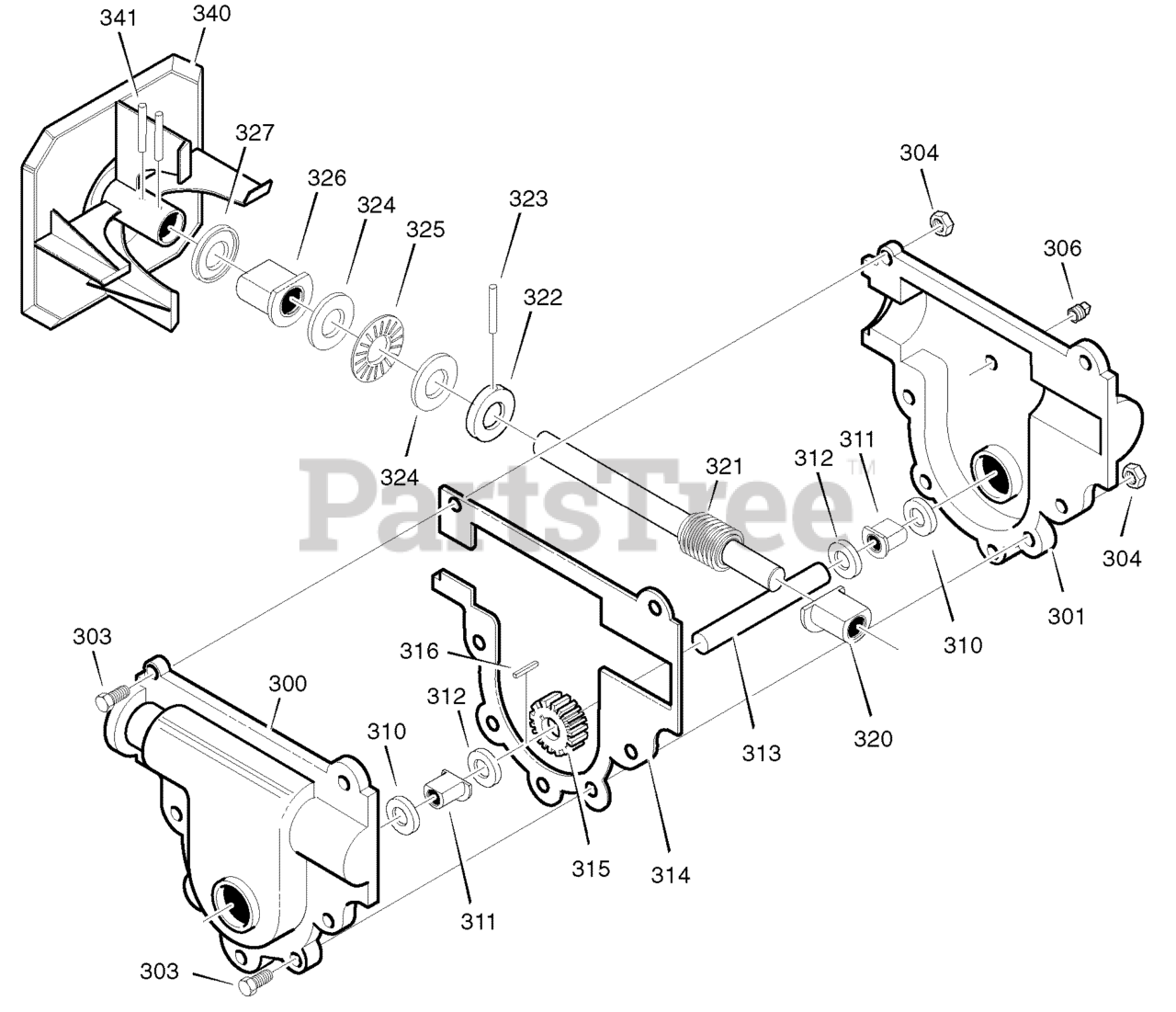

Gear Case Parts Diagram

  • Title

300

Murray 10577

CASE, GEAR, RH
(Superseded to 10577MA)

$22.99

$

In Stock, only 1 left!

0

301

Murray 10576

CASE, GEAR, LH
(Superseded to 10576MA)

$22.99

$

Usually ships in 2-12 days

0

303

Murray 710025

SCREW,1/4-20X.75

$

$

Not available

304

Murray 15X143

NUT,1/4-20
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

306

Murray 9344

SCREW, 3/8-16 x 0.50
(Superseded to 1673452SM)

$3.99

$

Usually ships in 2-12 days

0

310

Murray 9566

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, Qty 10

0

311

Murray 50304

BEARING, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 16

0

312

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

313

Murray 340286

SHAFT, AUGER OUTPUT

$57.99

$

Usually ships in 2-12 days

0

314

Murray 51279

GASKET, GEAR BOX
(Superseded to 51279MA)

$12.99

$

In Stock, only 2 left!

0

315

Murray 51405

GEAR, WORM
(Superseded to 51405GS)

$

$

Not available

316

Murray 431787

KEY, WOODRUFF #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

320

Murray 50221

BRNG, FL
(Superseded to 50221MA)

$8.49

$

Usually ships in 2-12 days

0

321

Murray 1501128

SHAFT, AUGER INPUT (IMPELLER)

$84.99

$

Usually ships in 2-12 days

0

322

Murray 580295

COLLAR, THRUST
(Superseded to 580295MA)

$22.99

$

Usually ships in 2-12 days

0

323

Murray 454565

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

324

Murray 48275

WASHER, FLAT
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

325

Murray 50684

BRNG, ROLL
(Superseded to 50684MA)

$6.49

$

In Stock, only 3 left!

0

326

Murray 50304

BRNG, FL
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 16

0

327

Murray 9566

SEAL, OIL
(Superseded to 9566MA)

$12.99

$

In Stock, Qty 10

0

340

Murray 760194E701

IMPELLER

$246.99

$

Usually ships in 2-12 days

0

341

Murray 454565

PIN, SPRING
(Superseded to 454565MA)

$

$

Not available

*

Murray 333431

10oz TUBE LUBRIPLATE
(Superseded to 333431MA)

$

$

Not available
