624604x43B - Yard King 24" Snow Thrower (2004) Handle Parts Diagram

24" Snow Thrower

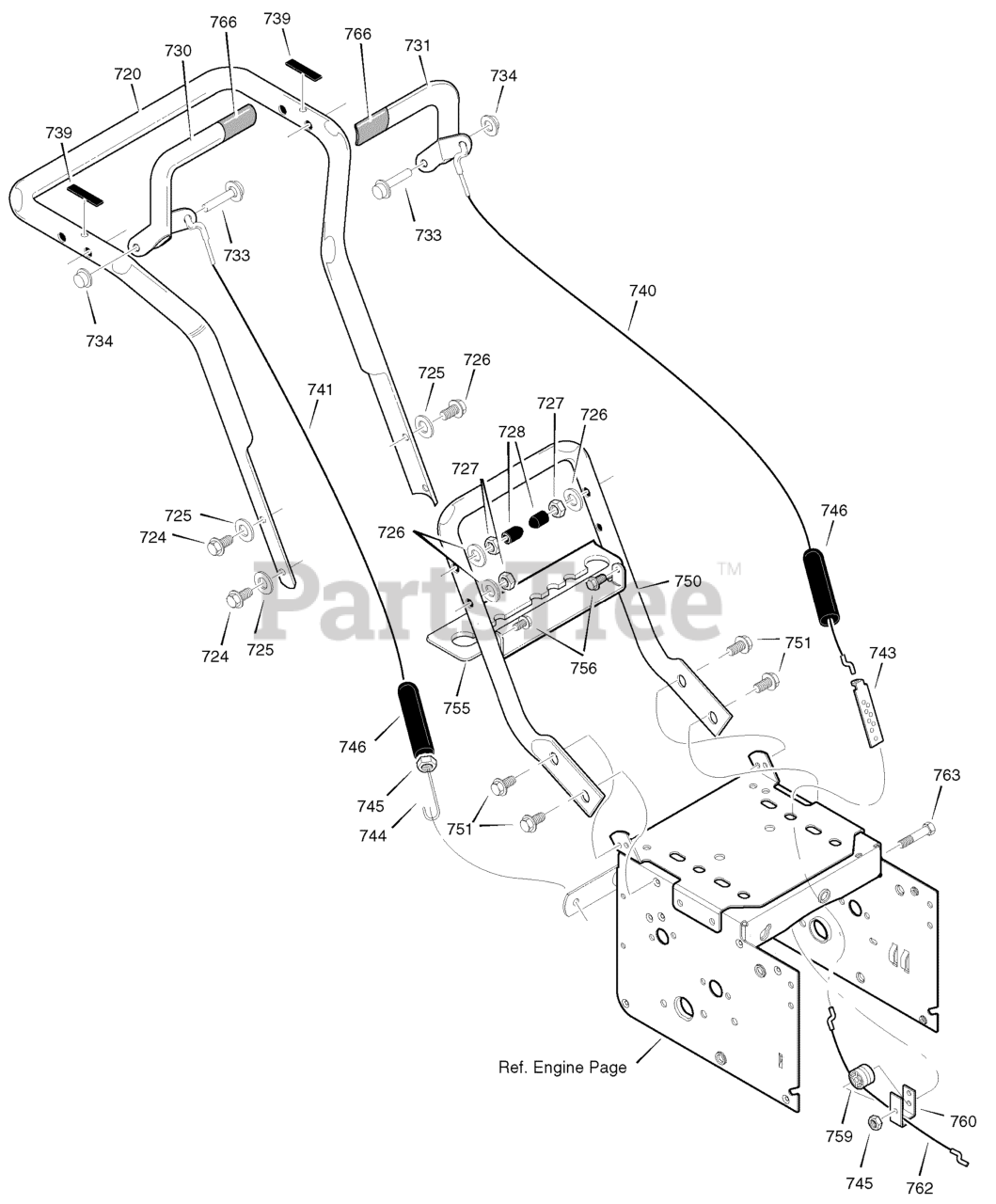

Handle Parts Diagram

  • Title

720

Murray 321835E701

HANDLE, UPPER

$114.99

$

Usually ships in 2-12 days

0

724

Murray 11234

SCREW, 5/16-18 x 2.75
(Superseded to 11234MA)

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

726

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

727

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261

STOP, RED PLASTIC
(Superseded to 11261MA)

$4.49

$

Usually ships in 2-12 days

0

730

Murray 301386E701

CLUTCH HANDLE, RIGHT

$31.99

$

Usually ships in 2-12 days

0

731

Murray 301387E701

CLUTCH HANDLE, LEFT

$

$

Not available

733

Murray 1501477

PIN, PIVOT CLUTCH

$

$

Not available

734

Murray 3535

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049

BUMPER, RECTANGLE
(Superseded to 4049MA)

$

$

Not available

740

Murray 1501123

CABLE, CLUTCH 28.44L
(Superseded to 1501123MA)

$12.99

$

In Stock, Qty 9

0

741

Murray 761589

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 4 left!

0

743

Murray 313441

BRACKET, CABLE ADJUSTER
(Superseded to 313441MA)

$

$

Not available

744

Murray 1673

SPRING, AUGER CLUTCH
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 19

0

745

Murray 15X145

NUT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

746

Murray 308146

BOOT, CLUTCH SPRING
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

750

Murray 339541E701

HANDLE, LOWER

$140.99

$

Usually ships in 2-12 days

0

751

Murray 25X021

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 337407E701

BRKT, GEAR SELECTOR

$23.99

$

Usually ships in 2-12 days

0

756

Murray 310169

SCREW, 1/4-20 X 0.63
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

759

Murray 579860

SPOOL-CABLE, AUGRT CLUTCH
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122

CABLE, LOWER DRIVE 12"
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 20+

0

763

Murray 1798

BOLT, HEX 1/4-20 X 1.50

$

$

Not available

766

Murray 333927

GRIP

$5.49

$

In Stock, only 2 left!

0
