624604x89A - Yard King 24" Snow Thrower (2000) Discharge Chute Assembly Parts Diagram

24" Snow Thrower

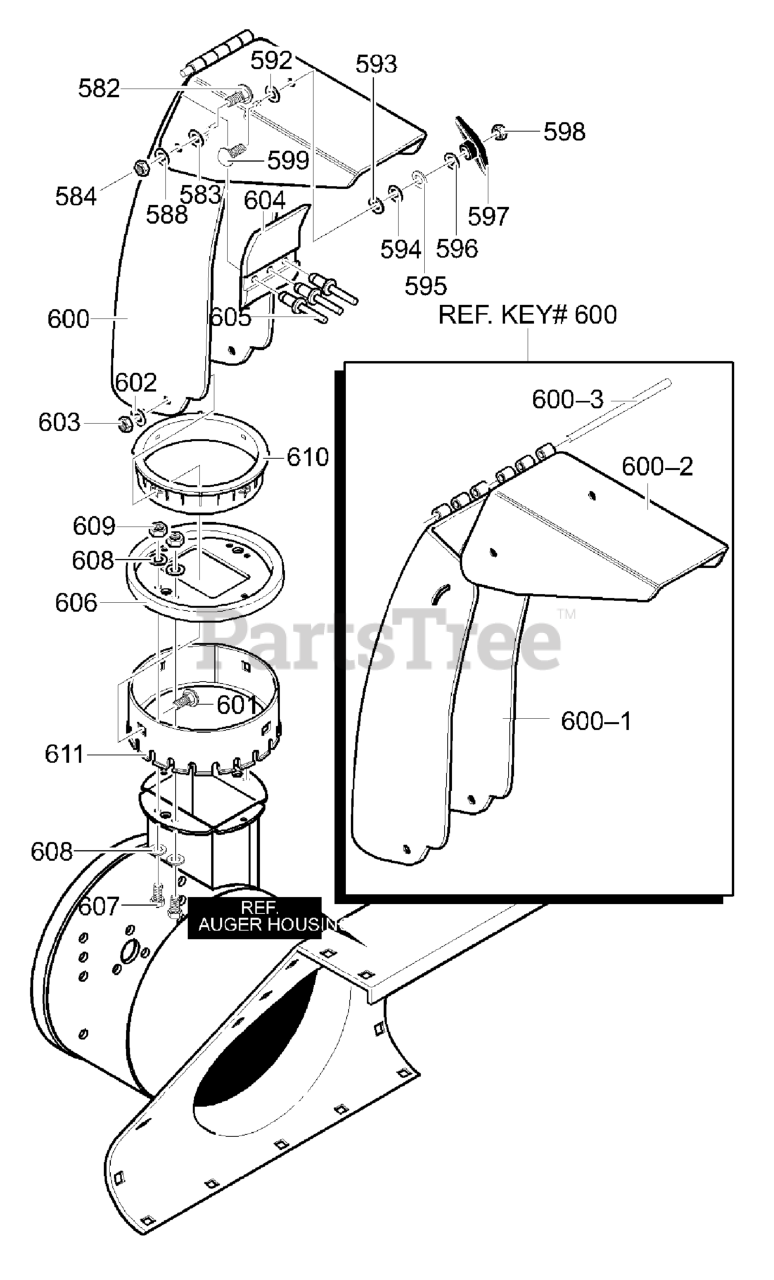

Discharge Chute Assembly Parts Diagram

  • Title

582

Murray 340720MA

BOLT
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

583

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

584

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

588

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

592

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 120393

WASHER, FLAT

$

$

Not available

595

Murray 120638

WASHER

$

$

Not available

596

Murray 120393

WASHER, FLAT

$

$

Not available

597

Murray 13527

T-KNOB

$

$

Not available

598

Murray 71037

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 3316MA

BOLT, CARRIAGE

$3.49

$

Usually ships in 2-12 days

0

600

Murray 760990-821

CHUTE, ASSEMBLY WITH GUARD

$

$

Currently unavailable

600-1

Murray 760843

CHUTE, LOWER

$

$

Currently unavailable

600-2

Murray 302525

UPPER, CHUTE

$

$

Currently unavailable

600-3

Murray 305216MA

PIN, HINGE

$6.49

$

Usually ships in 2-12 days

0

601

Murray 586280

BOLT, 5/16-18X1.00

$

$

Not available

602

Murray 120393

FLATWASHER

$

$

Not available

603

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

604

Murray 760268MA

FLAP

$10.99

$

Usually ships in 2-12 days

0

605

Murray 760987MA

RIVET

$3.99

$

In Stock, only 1 left!

0

606

Murray 585214-821

COLLAR, CHUTE

$

$

Currently unavailable

607

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 6

0

608

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 8

0

611

Murray 585193MA

RETAINER, RING OUTER

$29.99

$

In Stock, Qty 10

0
