624604x89A - Yard King 24" Snow Thrower (2000) Handle Assembly Parts Diagram

24" Snow Thrower

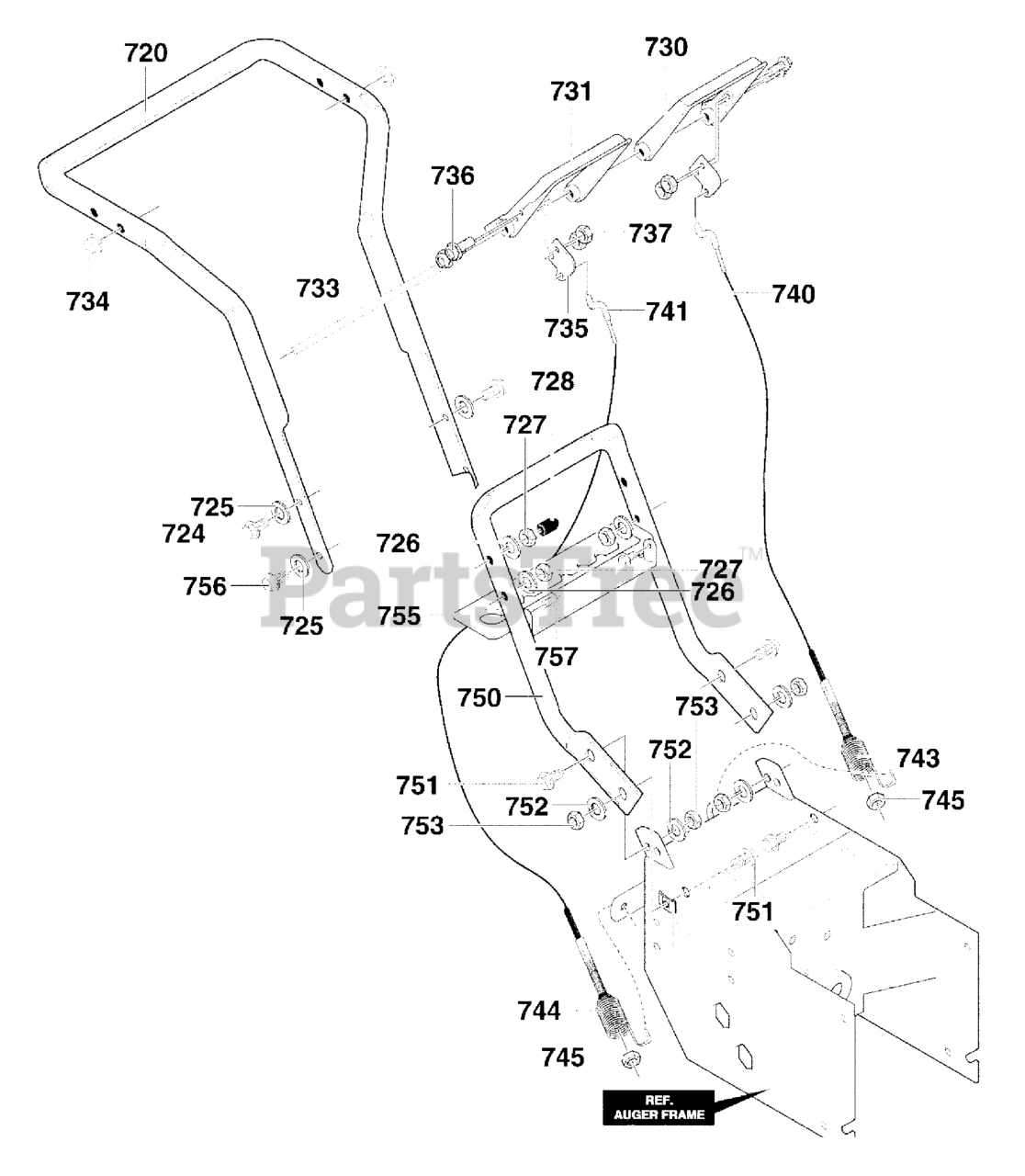

Handle Assembly Parts Diagram

  • Title

720

Murray 9552-821

HANDLE, UPPER

$

$

Currently unavailable

724

Murray 11234MA

SCREW, 5/16-18 x 2.75

$5.99

$

Usually ships in 2-12 days

0

725

Murray 120393

WASHER, FLAT

$

$

Not available

726

Murray 120638

WASHER, SPTLK

$

$

Not available

727

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 302557MA

LEVER, BAIL LH

$21.99

$

Usually ships in 2-12 days

0

731

Murray 302558MA

LEVER, BAIL RH

$22.99

$

In Stock, only 1 left!

0

733

Murray 12621

ROD, PIVOT

$

$

Not available

734

Murray 3535MA

NUT, PUSH ON

$4.99

$

Usually ships in 2-12 days

0

735

Murray 302620-821

PLATE, CLUTCH

$

$

Currently unavailable

736

Murray 303108

SCREW, 1/4-20 X .88

$2.99

$

Usually ships in 2-12 days

0

737

Murray 73826

NUT, 1/4-20 REGHXCTRLK

$4.99

$

In Stock, Qty 20+

0

740

Murray 1579MA

CABLE, CLUTCH

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761590MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 8

0

743

Murray 579869MA

SPRING, TENSION

$11.99

$

Usually ships in 2-12 days

0

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 19

0

745

Murray 780029

NUT, 1/4-20

$

$

Not available

750

Murray 339541-821

HANDLE, LOWER

$14.99

$

Usually ships in 2-12 days

0

751

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

752

Murray 120638

WASHER, SPTLK

$

$

Not available

753

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

754

Murray 309436MA

PUSHNUT, 5/16

$3.99

$

Usually ships in 2-12 days

0

755

Murray 337407-821

BRACKET, GEAR SEL

$

$

Currently unavailable

756

Murray 180087

SCREW, 5/16-18 x 2.00

$

$

Not available

757

Murray 300303MA

SCREW, PLASTITE

$4.49

$

In Stock, only 1 left!

0
