624605x61A - Murray 24" Snow Thrower (2000) Chute Rod Assembly Parts Diagram

24" Snow Thrower

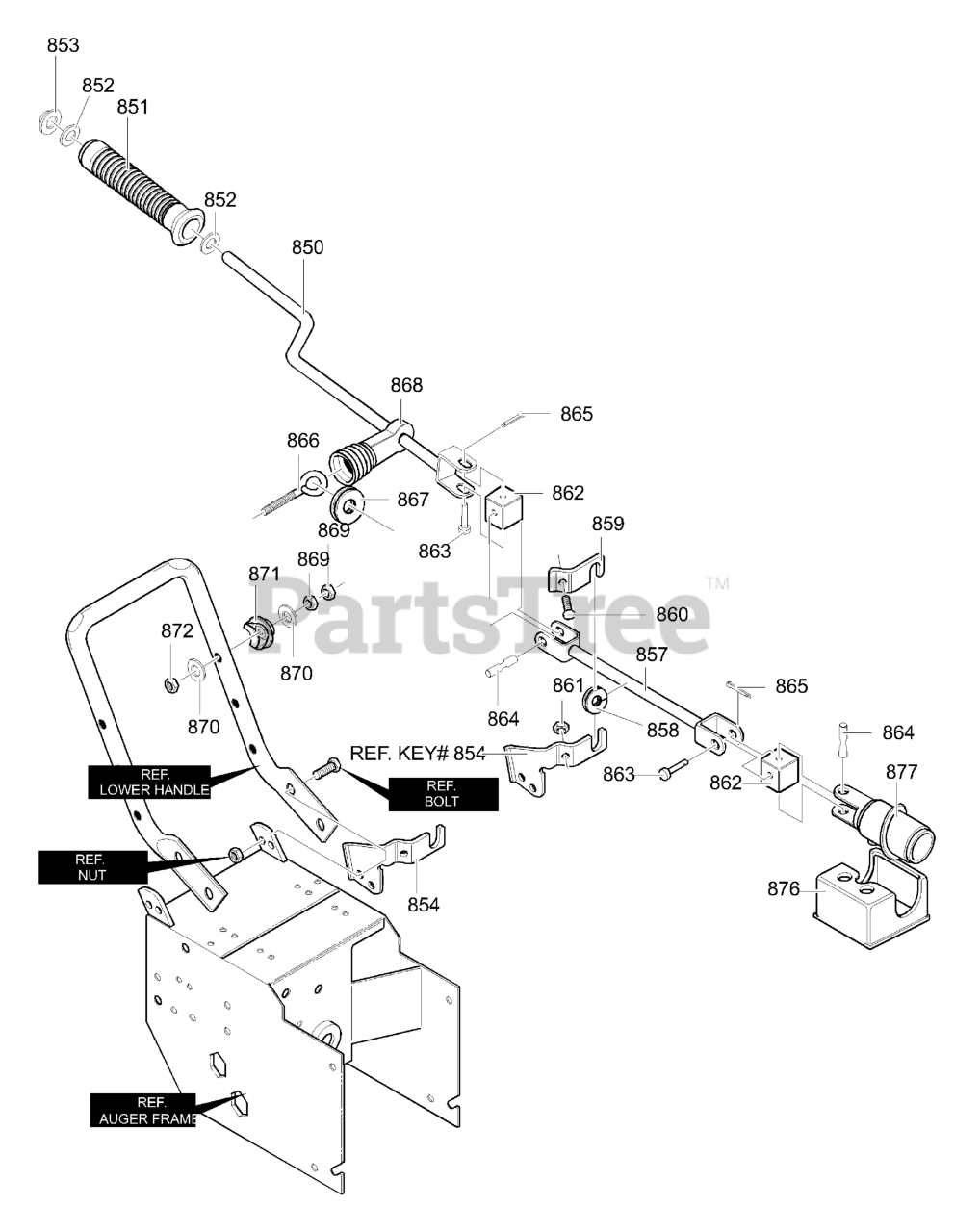

Chute Rod Assembly Parts Diagram

  • Title

850

Murray 339563

ASSEMBLY, LEFT ROD

$

$

Currently unavailable

851

Murray 307399MA

HANDLE, CRANK

$9.99

$

In Stock, only 1 left!

0

852

Murray 309312MA

WASHER, FLAT

$4.49

$

In Stock, only 3 left!

0

853

Murray 578159MA

RING, RETAINER

$3.99

$

Usually ships in 2-12 days

0

854

Murray 761773-853

BRACKET, SUPPORT

$

$

Currently unavailable

857

Murray 339560

ASSEMBLY, LEFT ROD

$2.99

$

Usually ships in 2-12 days

0

858

Murray 339534

GROMMET

$1.99

$

Usually ships in 2-12 days

0

859

Murray 339507-853

BRACKET, CHUTE

$

$

Currently unavailable

860

Murray 313686MA

SCREW

$3.99

$

In Stock, only 2 left!

0

861

Murray 782585

NUT
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

862

Murray 578063MA

HOUSING, UNIVERSAL

$5.49

$

In Stock, Qty 10

0

863

Murray 578309MA

PIN, CLEVIS

$5.49

$

Usually ships in 2-12 days

0

864

Murray 578060MA

PIN, JOINT

$7.49

$

In Stock, Qty 5

0

865

Murray 579493MA

PIN, COTTER

$4.49

$

In Stock, only 4 left!

0

866

Murray 581618MA

BOLT, EYE

$5.49

$

Usually ships in 2-12 days

0

867

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

868

Murray 308145MA

BOOT, EYEBOLT
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

869

Murray 124829

NUT

$

$

Not available

870

Murray 71072

WASHER, FLAT

$

$

Not available

871

Murray 309344MA

ADAPTOR, BOOT

$

$

Not available

872

Murray 71046

NUT
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

876

Murray 585195MA

BRACKET, WORM MOUNT

$

$

Not available

877

Murray 585196MA

WORM, CHUTE

$11.99

$

In Stock, Qty 7

0
