624804x79B - Briggs & Stratton 24" Snow Thrower (2000) (Spirit) Handle Assembly Parts Diagram

24" Snow Thrower

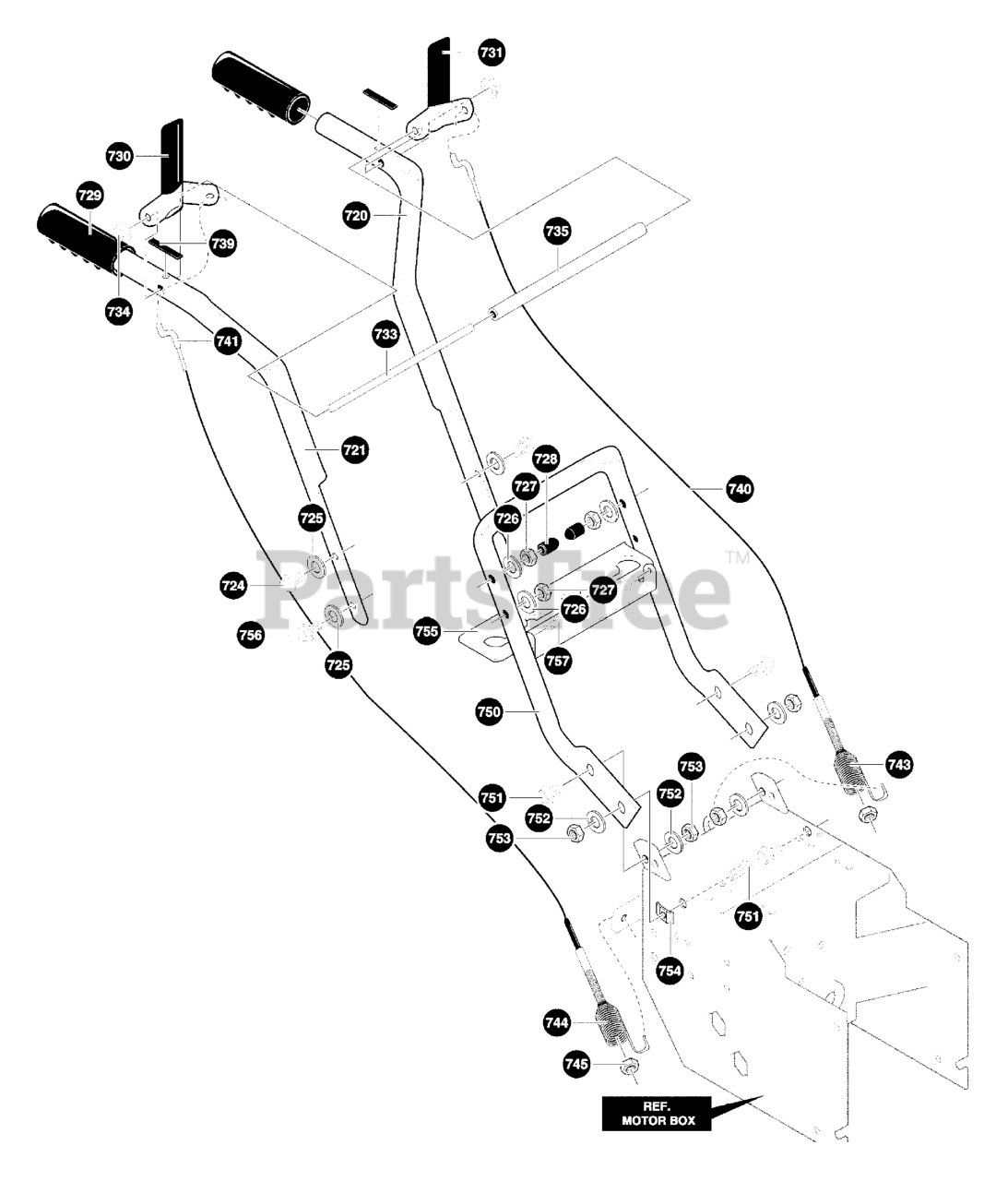

Handle Assembly Parts Diagram

  • Title

720

Murray 337056-853

HANDLE, UPPER LH

$

$

Currently unavailable

721

Murray 337057-853

HANDLE, UPPER RH

$11.99

$

Usually ships in 2-12 days

0

724

Murray 11234MA

SCREW

$5.99

$

Usually ships in 2-12 days

0

725

Murray 120393

WASHER, FLAT

$

$

Not available

726

Murray 120638

WASHER, .31X.58X.08

$

$

Not available

727

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP-HANDLE FINGER

$5.49

$

Usually ships in 2-12 days

0

730

Murray 337816-853

LEVER, ASSY CLUTCH DRIVE RH

$

$

Currently unavailable

731

Murray 337815-853

LEVER, ASSY CLUTCH DRIVE LH

$

$

Currently unavailable

733

Murray 337381MA

ROD, PIVOT CLUTCH

$50.99

$

In Stock, only 1 left!

0

734

Murray 761105MA

NUT, PUSH 1/4" HEAVY DUTY
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Murray 337373MA

SPACER - HANDLE

$8.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1579MA

CABLE, CLUTCH

$23.99

$

Usually ships in 2-12 days

0

741

Murray 761589MA

CABLE, AUGER CLUTCH 25.5"

$15.99

$

In Stock, only 4 left!

0

743

Murray 579869MA

SPRING, TENSION

$11.99

$

Usually ships in 2-12 days

0

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 19

0

745

Murray 780029

NUT, HEX

$

$

Not available

750

Murray 339541-853

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

752

Murray 120638

WASHER

$

$

Not available

753

Murray 71037

NUT, HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

754

Murray 309436MA

PUSHNUT, 5/16

$3.99

$

Usually ships in 2-12 days

0

755

Murray 337407-853

BRACKET, GEAR SEL.

$

$

Not available

756

Murray 180087

SCREW

$

$

Not available

757

Murray 300303MA

SCREW

$4.49

$

In Stock, only 1 left!

0
