624808x31E - Scotts 24" Snow Thrower (2003) Gear Case Parts Diagram

24" Snow Thrower

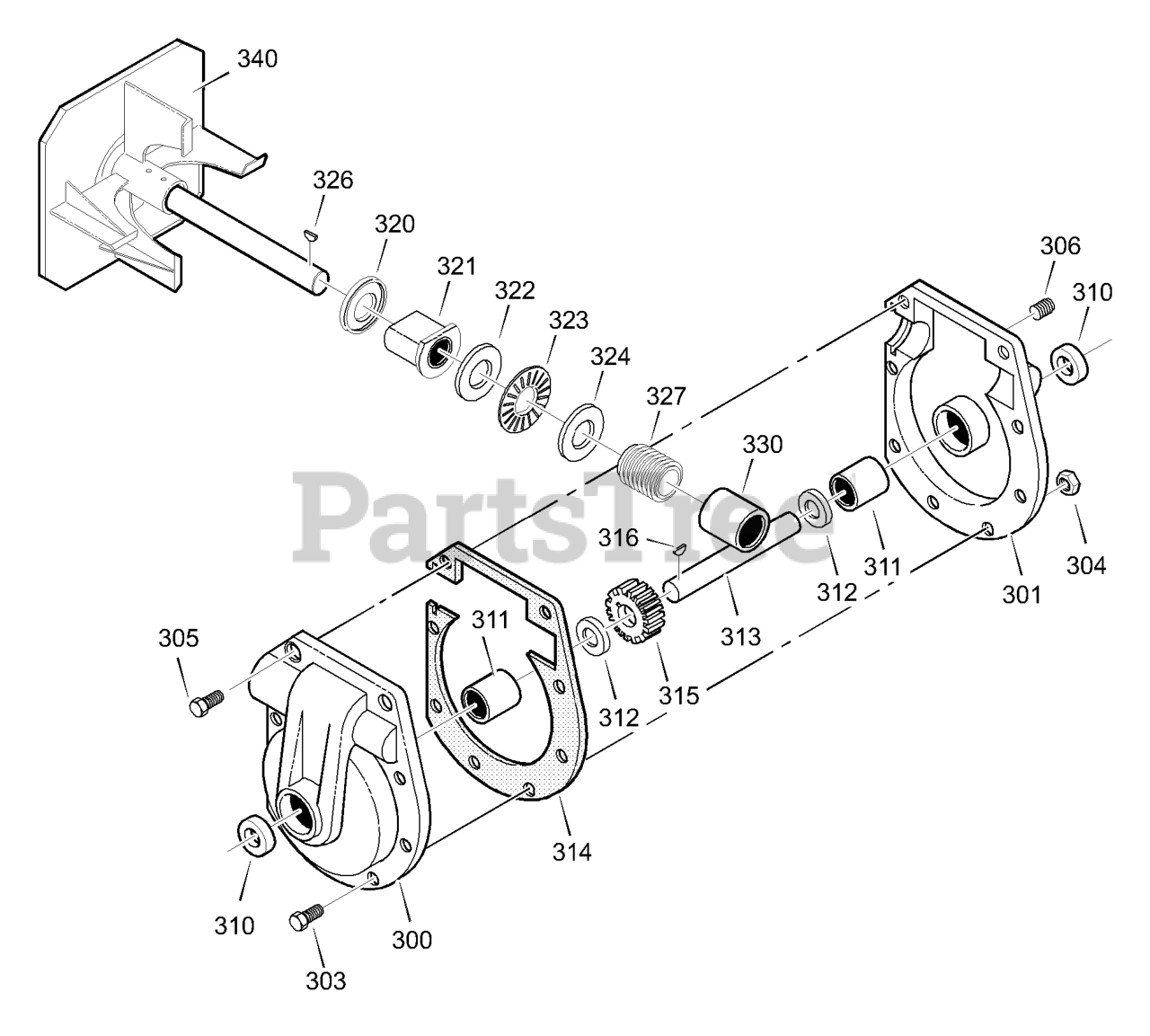

Gear Case Parts Diagram

  • Title
300

Murray 896MA

CASE, GEAR, RH

$32.99

$

In Stock, only 4 left!

0

301

Murray 895MA

CASE, GEAR, LH

$

$

Not available

303

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

304

Murray 71100MA

NUT, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 8

0

305

Murray 330434MA

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Murray 53749MA

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 8

0

311

Murray 53743

BEARING, SLEEVE
(Superseded to 53743MA)

$9.99

$

In Stock, only 2 left!

0

312

Murray 53748MA

WASHER, FLAT

$9.99

$

In Stock, only 2 left!

0

313

Murray 760530

SHAFT, AUGER OUTPUT

$

$

Not available

314

Murray 897MA

GASKET, GEAR BOX

$14.99

$

In Stock, only 1 left!

0

315

Murray 53730MA

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, only 1 left!

0

316

Murray 73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 10

0

320

Murray 53737MA

RING, QUAD 0.924 ID

$4.99

$

In Stock, Qty 8

0

321

Murray 583126MA

BEARING, FLANGE

$13.99

$

In Stock, only 1 left!

0

322

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 10

0

323

Murray 50684MA

BEARING, ROLLER

$6.49

$

In Stock, only 3 left!

0

324

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 10

0

326

$5.99

$

In Stock, only 2 left!

0

327

$49.99

$

In Stock, only 1 left!

0

330

Murray 53731MA

BEARING, SLEEVE

$5.49

$

In Stock, Qty 12

0

340

Murray 1501147E717MA

IMPELLER
(Superseded to 1740584AYP)

$271.99

$

Usually ships in 2-12 days

0

--

Murray 333431MA

LUBRIPLATE, GR132, 14oz
(Superseded to 770622)

$31.99

$

Usually ships in 2-12 days

0
