624808x6A - Murray Ultra 24" Snow Thrower (2001) Drive Parts Diagram

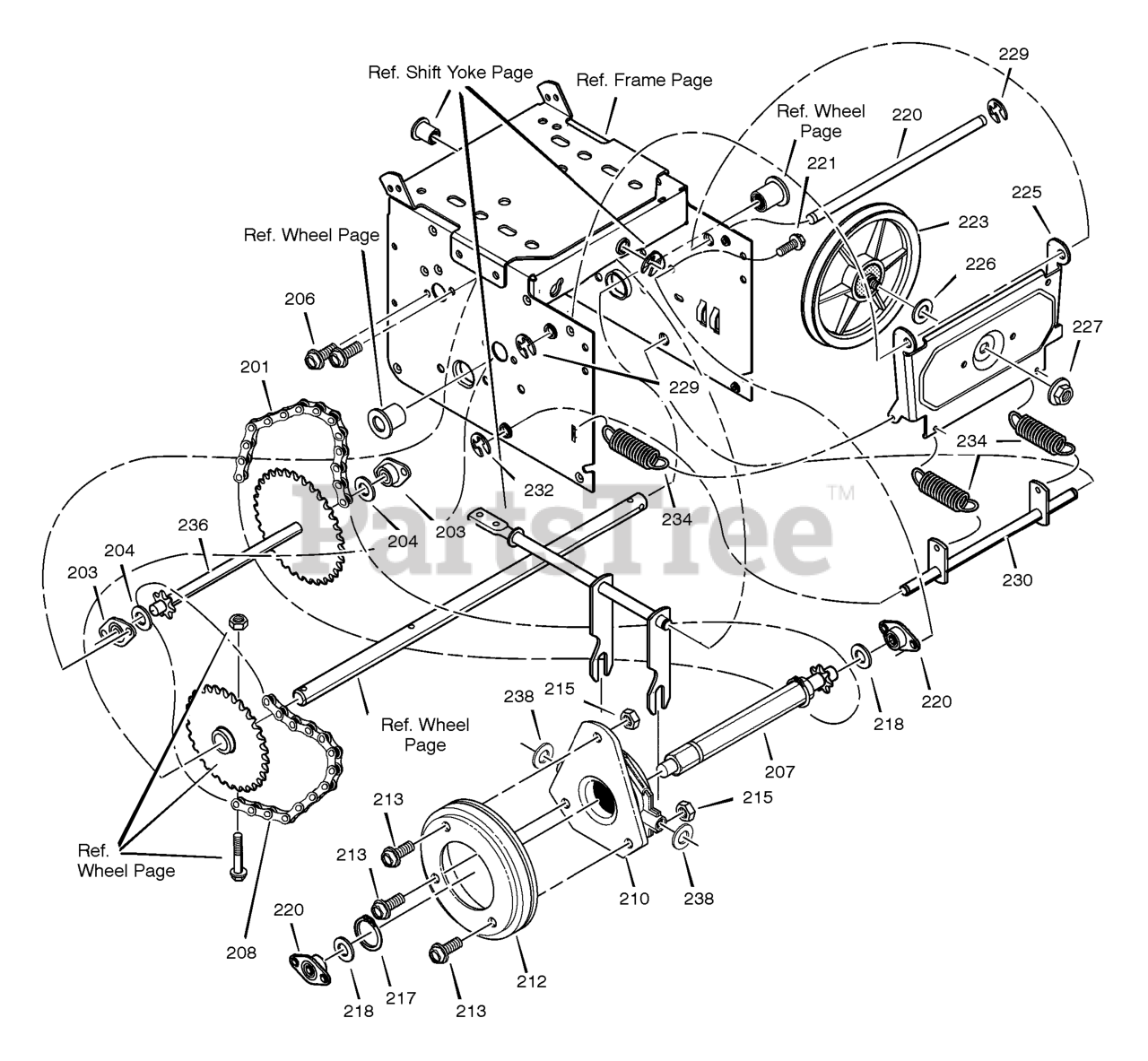

Ultra 24" Snow Thrower

Drive Parts Diagram

  • Title
200

Murray Part# 1501092 YZ

LF AXLE, SWING PLATE YZ
Usually ships in 6 to 12 days

$

$10.72

0

201

Murray Part# 579851MA

CHAIN, ROLLER #42x19.00
Usually ships in 1 day

$

$18.10

0

203

Murray Part# 334163MA

BEARING AND RETAINER, ASSY
Usually ships in 1 day

$

$8.71

0

Usually ships in 1 day

$

$3.34

0

206

Murray Part# 780055MA

SCREW, TAP 5/16-18 x 0.5
Usually ships in 1 day

$

$3.12

0

207

Murray Part# 1501100MA

ASSY, HEX SHAFT
Usually ships in 6 to 12 days

$

$26.82

0

208

Murray Part# 579868MA

CHAIN, ROLLER #36x18.00 LG
Usually ships in 1 day

$

$16.98

0

210

Murray Part# 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)
Usually ships in 1 day

$

$30.73

0

212

Murray Part# 53830

WHEEL, FRICTION DISC
Usually ships in 1 day

$

$24.03

0

213

Murray Part# 001X38MA

BOLT, HEX, 1/4-20 x 0.62
Usually ships in 1 day

$

$3.46

0

215

Murray Part# 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)
Usually ships in 1 day

$

$2.67

0

217

Murray Part# 579859MA

RING, RETEXT
Usually ships in 1 day

$

$3.46

0

Usually ships in 1 day

$

$3.34

0

220

Murray Part# 334163MA

BEARING AND RETAINER, ASSY
Usually ships in 1 day

$

$8.71

0

221

Murray Part# 780055MA

SCREW, TAP 5/16-18 X .50
Usually ships in 1 day

$

$3.12

0

223

Murray Part# 1501115MA

ASSY, FRICTION PULLY
Usually ships in 1 day

$

$61.48

0

225

Murray Part# 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)
Usually ships in 6 to 12 days

$

$29.62

0

226

Murray Part# 1501158MA

SPACER, FRICTION PULLEY
Usually ships in 1 day

$

$3.57

0

227

Murray Part# 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)
Usually ships in 3 to 5 days

$

$3.34

0

229

Murray Part# 11X30MA

RETAINER, RING
Usually ships in 1 day

$

$3.34

0

230

Murray Part# 1501107 YZ

LF ASSY, SPRING LINK YZ
Usually ships in 6 to 12 days

$

$17.77

0

232

Murray Part# 11X30MA

RETAINER, RING
Usually ships in 1 day

$

$3.34

0

234

Murray Part# 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)
Usually ships in 1 day

$

$5.47

0

236

Murray Part# 1501090MA

WLD, INTERMED SPROCKET 33T/7
(Superseded to 1501237MA)
Usually ships in 1 day

$

$63.72

0

238

Murray Part# 71074

WASHER, FLAT
(Superseded to 71074MA)
Usually ships same day

Not available

$

$
