624808x6A - Murray Ultra 24" Snow Thrower (2001) Handle Assembly Parts Diagram

Ultra 24" Snow Thrower

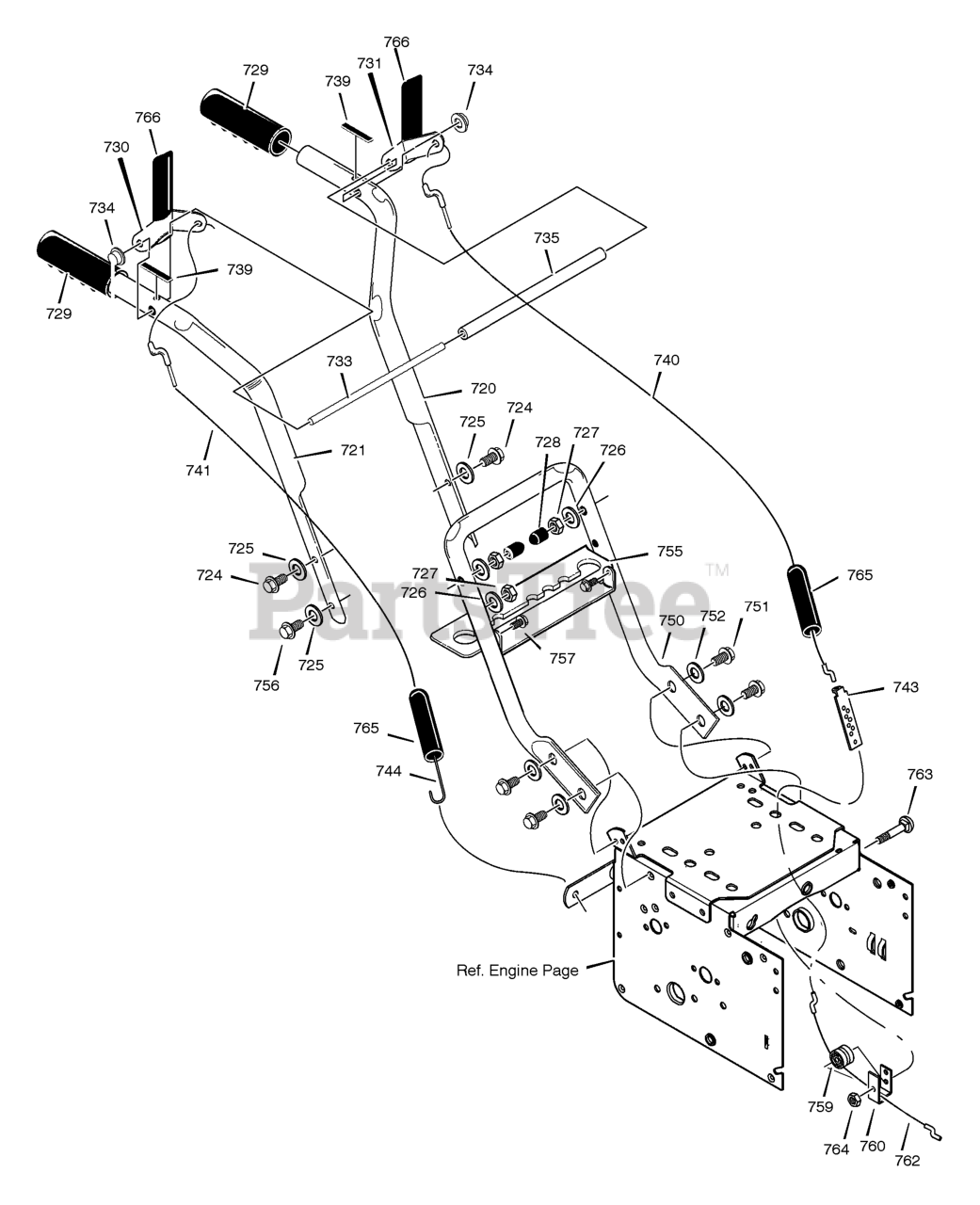

Handle Assembly Parts Diagram

  • Title
720

Murray Part# 337056E701

HANDLE, UPPER LH
Usually ships same day

Not available

$

$

721

Murray Part# 337057E701

HANDLE, UPPER RH
Usually ships same day

Not available

$

$

724

Murray Part# 11234MA

SCREW, 5/16-18 x 2.75
Usually ships in 3 to 5 days

$

$4.57

0

725

Murray Part# 71071

WASHER, FLAT
(Superseded to 703350)
Usually ships in 1 day

$

$3.23

0

726

Murray Part# 071060

WASHER, SPTLK .31X.58X.08
Usually ships in 1 day

$

$2.67

0

727

Murray Part# 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)
Usually ships in 1 day

$

$2.67

0

728

Murray Part# 11261MA

STOP, RED PLASTIC
Usually ships in 6 to 12 days

$

$3.34

0

729

Murray Part# 337399MA

GRIP-HANDLE FINGER
Usually ships in 3 to 5 days

$

$4.24

0

730

Murray Part# 337816E701MA

LEVER, ASSY CLUTCH DRIVE RH
(Superseded to 1740700AYP)
Usually ships in 6 to 12 days

$

$28.50

0

731

Murray Part# 337815E701MA

LEVER, ASSY CLUTCH DRIVE LH
(Superseded to 1740699AYP)
Usually ships in 1 day

$

$28.50

0

733

Murray Part# 337381MA

ROD, PIVOT CLUTCH
Usually ships in 1 day

$

$40.80

0

734

Murray Part# 761105MA

NUT, PUSH ON CAP
Usually ships in 1 day

$

$3.34

0

735

Murray Part# 337373MA

SPACER-HANDLE
Usually ships in 3 to 5 days

$

$6.92

0

739

Murray Part# 4049MA

BUMPER, RECTANGLE
Usually ships in 1 day

$

$3.68

0

740

Murray Part# 1501123MA

CABLE, CLUTCH 28.44L
Usually ships in 1 day

$

$11.28

0

741

Murray Part# 761872MA

CABLE, AUGER CLUTCH
Usually ships in 1 day

$

$12.40

0

743

Murray Part# 313441MA

BRACKET, CABLE ADJUSTER
Usually ships same day

Not available

$

$

744

Murray Part# 1673MA

SPRING, AUGER CLUTCH
Usually ships in 1 day

$

$7.26

0

745

Murray Part# 780029

NUT, 1/4-20
Usually ships same day

Not available

$

$

750

Murray Part# 339541E701MA

HANDLE, LOWER
(Superseded to 1740701ASM)
Usually ships in 6 to 12 days

$

$106.20

0

751

Murray Part# 70984

SCREW, TAP 5/16-18 X .75
Usually ships in 1 day

$

$3.79

0

752

Murray Part# 071060

WASHER, SPTLK
Usually ships in 1 day

$

$2.67

0

755

Murray Part# 337407E701MA

BRKT, GEAR SELECTOR
Usually ships in 3 to 5 days

$

$16.88

0

756

Murray Part# 6751

SCREW, 5/16-18 x 2.00
(Superseded to 6751MA)
Usually ships in 1 day

$

$3.30

0

757

Murray Part# 300303MA

SCREW, .25 X .75 X .51
Usually ships in 1 day

$

$3.02

0

759

Murray Part# 579860MA

SPOOL-CABLE, AUGRT CLUTCH
Usually ships in 1 day

$

$4.01

0

760

Murray Part# 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)
Usually ships in 1 day

$

$2.45

0

762

Murray Part# 1501122MA

CABLE, LOWER DRIVE 12"
Usually ships in 1 day

$

$6.81

0

763

Murray Part# 01X186MA

BOLT, HEX 1/4-20 X 1.75 YZ
Usually ships in 1 day

$

$3.08

0

Usually ships same day

Not available

$

$

765

Murray Part# 308146MA

BOOT, CLUTCH SPRING
Usually ships in 1 day

$

$5.24

0

Usually ships in 1 day

$

$6.36

0
