624809x54A - Murray 24" Snow Thrower (2000) Remote Chute Control Parts Diagram

24" Snow Thrower

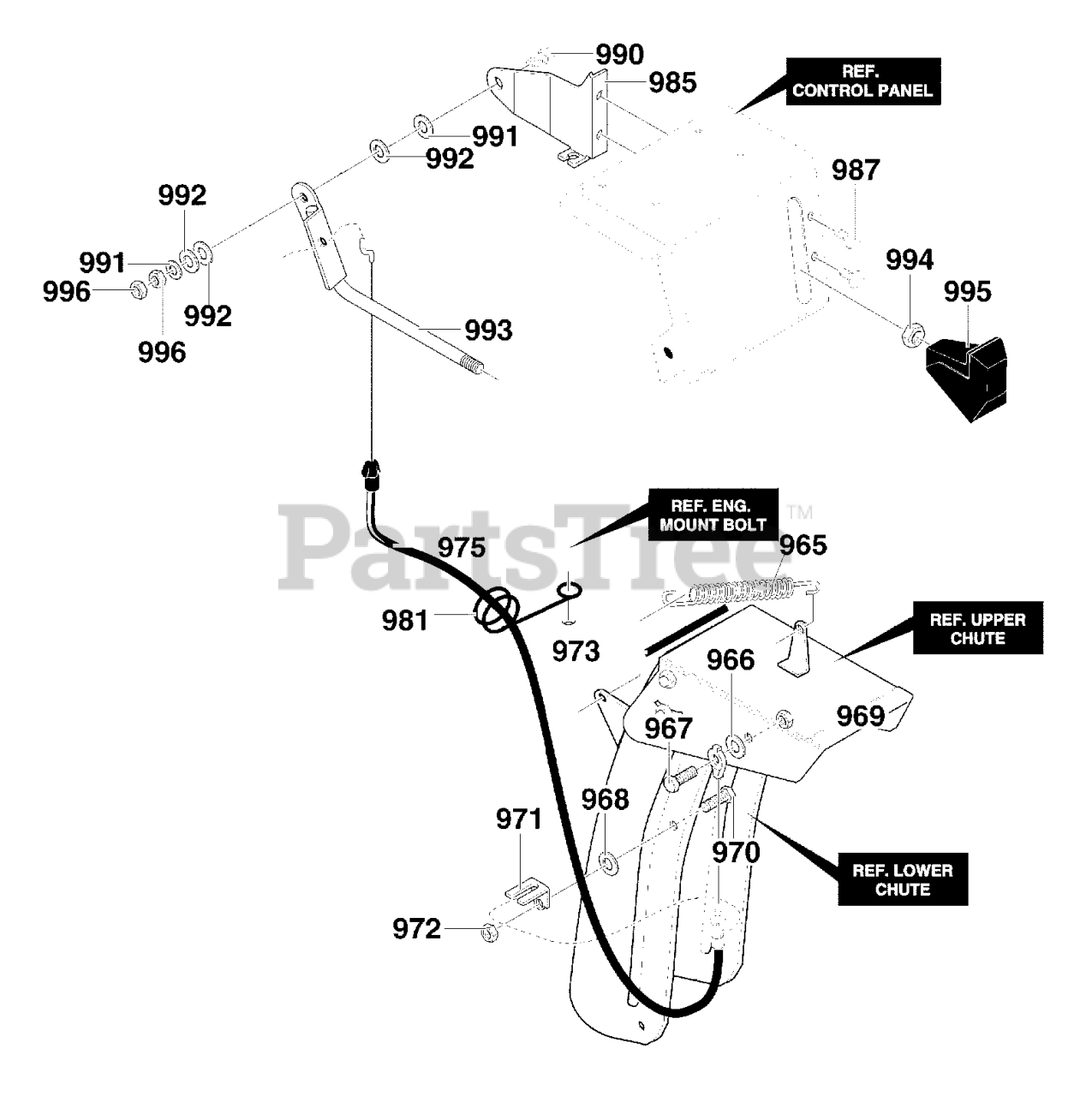

Remote Chute Control Parts Diagram

  • Title

965

Murray 318468MA

TENSION SPRING

$8.99

$

In Stock, only 1 left!

0

966

Murray 711666

FLATWASHER

$

$

Not available

967

Murray 310088MA

BOLT

$5.49

$

Usually ships in 2-12 days

0

968

Murray 73787MA

FLATWASHER

$7.49

$

Usually ships in 2-12 days

0

969

Murray 302635

NUT

$4.99

$

Usually ships in 2-12 days

0

970

Murray 313676

SCREW

$1.49

$

Usually ships in 2-12 days

0

971

Murray PER - 780066

BRACKET, CABLE CHUTE

$

$

Currently unavailable

972

Murray 1498

NUT

$

$

Not available

973

Murray 779024

TRIM STRIP, BLACK

$

$

Not available

975

Murray 761775MA

CABLE, CHUTE DEFLECTOR

$38.99

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM, REMOTE CHUTE CABLE

$7.49

$

Usually ships in 2-12 days

0

985

Murray 761669-821

BRACKET, SNAP-IN REMOTE

$

$

Currently unavailable

987

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 20+

0

990

Murray 180128MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

991

Murray 71072

WASHER, FLAT

$

$

Not available

992

Murray 4051MA

WASHER, SPRING

$4.99

$

Usually ships in 2-12 days

0

993

Murray 904056-821

HANDLE, ASSY

$9.99

$

Usually ships in 2-12 days

0

994

Murray 124829

NUT

$

$

Not available

995

Murray 304437MA

KNOB, SHIFT

$12.99

$

Usually ships in 2-12 days

0

996

Murray 71046

NUT
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0
