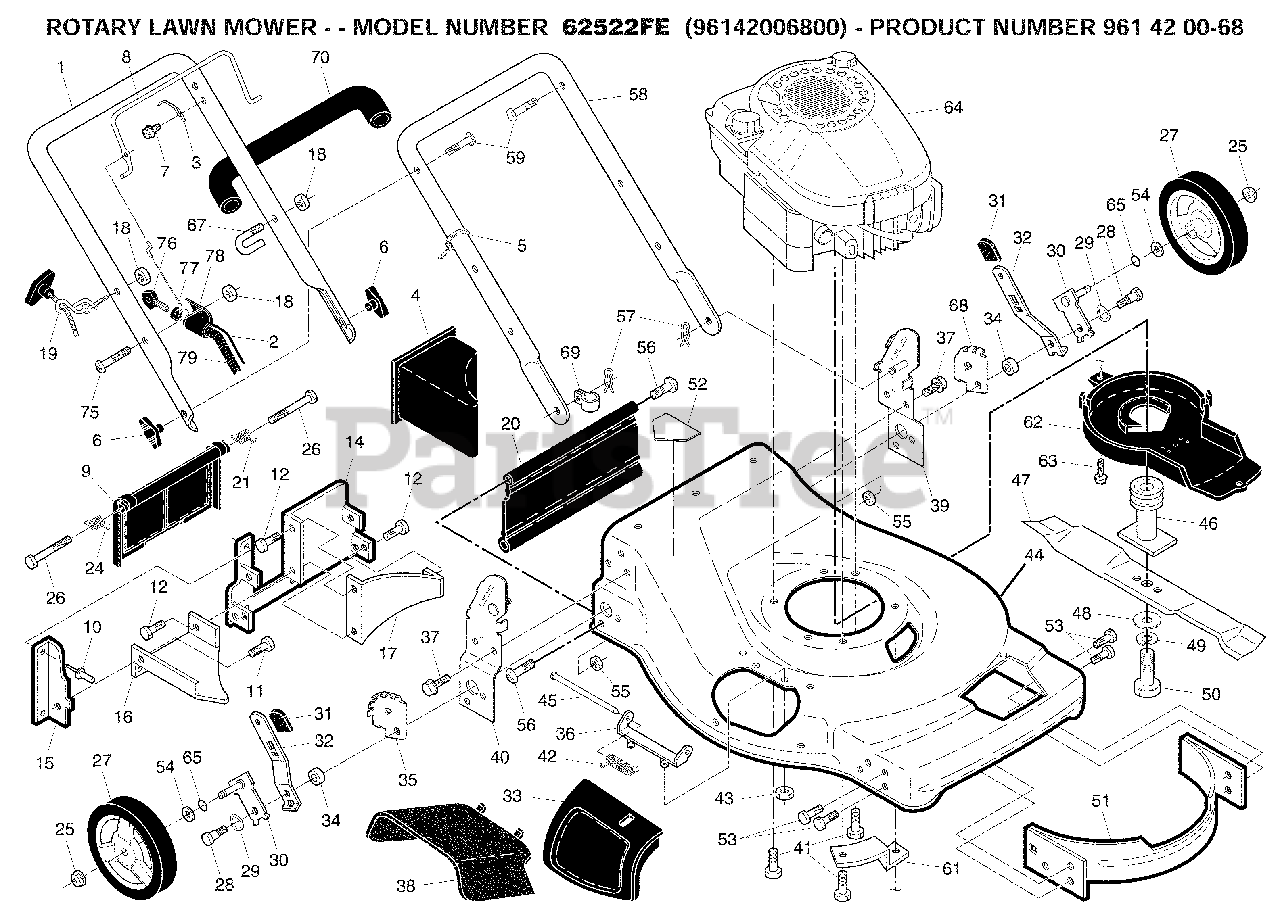

62522 FE (961420068-00) - Husqvarna 22" Walk-Behind Mower (2009-01) Repair Parts Parts Diagram

22" Walk-Behind Mower

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532199983

Upper Handle
(Superseded to 532427663)

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532401994

Cable, Operator Presence

$22.99

$

In Stock, only 2 left!

0

3

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532166649

Mulcher Plug

$

$

Not available

5

Husqvarna 532066426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532191938

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

7

Husqvarna 532750634

Screw

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna 532413185

Control Bar

$

$

Not available

9

Husqvarna 532408492

Rear Door Assembly
(Superseded to 532401813)

$

$

Not available

10

Husqvarna 532128415

Pop Rivet

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532150050

Screw, Self-Tapping #10-24 x 5/8

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 817060410

Screw, Hex Hex Head, Sems 1/4-20 x 1/2

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 532197076

Back Plate
(Superseded to 532195622)

$

$

Not available

15

Husqvarna 532411334

Side Baffle
(Superseded to 532410545)

$

$

Not available

16

Husqvarna 532177133

Discharge Baffle
(Superseded to 532176655)

$

$

Not available

17

Husqvarna 532148941

Rear Baffle
(Superseded to 532140661)

$

$

Not available

18

Husqvarna 532132004

Keps Locknut 1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 532413160

Rear Skirt

$13.99

$

In Stock, only 2 left!

0

21

Husqvarna 532405421

Spring, Rear Door, LH

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 532405423

Spring, Rear Door, RH

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 532409148

Nut, Hex, Flanged
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

26

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

27

Husqvarna 532410831

Wheel & Tire Assembly, Rear
(Superseded to 532401273)

$31.99

$

In Stock, only 2 left!

0

28

Husqvarna 532174719

Bolt, Shoulder 3/8-16 x 1

$10.99

$

In Stock, Qty 10

0

29

Husqvarna 532401630

Washer, Belleville

$4.99

$

In Stock, Qty 15

0

30

Husqvarna 532407871

Axle Arm Assembly
(Superseded to 532401179)

$6.99

$

In Stock, only 3 left!

0

31

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532406428

Selector Spring
(Superseded to 532401621)

$6.49

$

In Stock, Qty 12

0

33

Husqvarna 532196053

Mulcher Door

$22.99

$

In Stock, only 1 left!

0

34

Husqvarna 532401629

Spacer

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532410624

Wheel Adjusting Bracket, RH
(Superseded to 532407492)

$

$

Not available

36

Husqvarna 532175735

Hinge Bracket Assembly

$5.99

$

In Stock, Qty 5

0

37

Husqvarna 817000512

Screw, Sems, Thread Cutting 5/16-18 x 3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

38

Husqvarna 532403819

Discharge Deflector

$

$

Not available

39

Husqvarna 532419193

Handle Bracket Assembly, LH

$

$

Not available

40

Husqvarna 532419192

Handle Bracket Assembly, RH

$

$

Not available

41

Husqvarna 532150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

$5.99

$

In Stock, only 2 left!

0

42

Husqvarna 532193000

Spring, Torsion

$7.99

$

In Stock, Qty 20+

0

43

Husqvarna 873800400

Nut, Hex, Nylock
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532417405

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 14, 15 and 51)

$193.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

Rod, Hinge

$5.99

$

In Stock, Qty 14

0

46

Husqvarna 532189179

Blade Adapter / Pulley
(Superseded to 532421176)

$31.99

$

In Stock, only 3 left!

0

47

Husqvarna 532406713

Blade, 22"

$28.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

Washer, Helical
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532170031

Front Baffle

$

$

Not available

52

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817600406

Screw

$3.49

$

In Stock, only 2 left!

0

54

Husqvarna 532088348

Washer, Flat

$3.49

$

In Stock, Qty 10

0

55

Husqvarna 873930600

Nut, Hex
(Superseded to 873680600)

$

$

Not available

56

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1-1/4

$3.99

$

In Stock, Qty 12

0

57

Husqvarna 532051793

Hairpin Cotter

$

$

Not available

58

Husqvarna 532403433

Lower Handle
(Superseded to 583757501)

$

$

Not available

59

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, Qty 20+

0

61

Husqvarna 532190939

Bracket Debris Shield
(Superseded to 532188839)

$

$

Not available

62

Husqvarna 532405843

Debris Shield
(Superseded to 532413036)

$29.99

$

In Stock, only 2 left!

0

63

Husqvarna 532192325

Screw, Debris Shield

$5.99

$

In Stock, only 2 left!

0

64

Husqvarna 532197480

Engine, Briggs & Stratton, Model Number 122L05-1263-F1

Note: (Order parts from Engine manufacturer)

$4.99

$

In Stock, Qty 6

0

65

Husqvarna 532401607

O-Ring

$

$

Not available

67

Husqvarna 532410623

Clip, Packaging
(Superseded to 532407493)

$7.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532197991

Wheel Adjusting Bracket, LH

$3.99

$

In Stock, only 4 left!

0

69

Husqvarna 532186362

Clip, Cable

$9.49

$

In Stock, only 3 left!

0

70

Husqvarna 532186159

Foam Grip

$7.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532180331

Screw

$6.99

$

In Stock, Qty 9

0

76

Husqvarna 532194848

Key

$

$

Not available

77

Husqvarna 532189686

Nut, Cap

$45.99

$

In Stock, only 2 left!

0

78

Husqvarna 532409567

Key Start Switch

$68.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532404764

Wiring Harness
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

Warning Decal

Note: (not shown)

$

$

Not available
