62522 SH (961430009-05) - Husqvarna 22" Walk-Behind Mower (2007-03) Drive Assembly Parts Diagram

22" Walk-Behind Mower

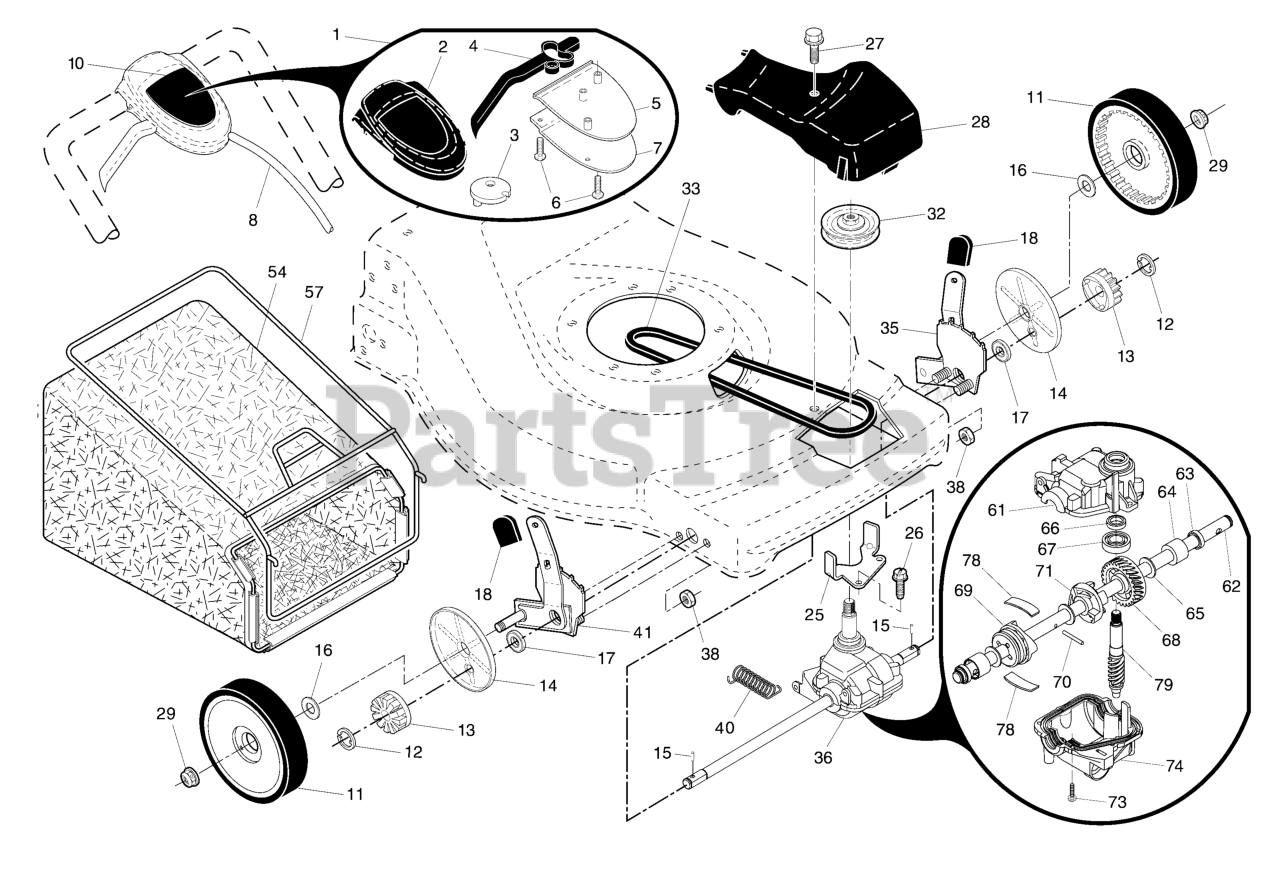

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532407316

Drive Control Assembly
(Superseded to 532425580)

Note: Includes Cable

$93.99

$

In Stock, only 1 left!

0

2

Husqvarna 532411673

Cover, Drive Control, Top
(Superseded to 532406260)

$

$

Not available

3

Husqvarna 532406282

Pulley
(Superseded to 532406262)

$

$

Not available

4

Husqvarna 532190039

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 532411664

Cover, Drive Control, Bottom
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Torx Head #8 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Mounting Bracket, Drive Control

$

$

Not available

8

Husqvarna 532406259

Cable, Drive Control

$53.99

$

In Stock, Qty 15

0

10

Husqvarna 532189378

Decal, Drive Control

$36.99

$

In Stock, only 1 left!

0

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-Ring

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

Gear, Pinion

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532191017

Drive Pawl
(Superseded to 532404845)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

Washer, Flat 3/8

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532196401

Selector Knob

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 532411663

Belt Keeper
(Superseded to 532431711)

$

$

Not available

26

Husqvarna 532163409

Screw, Hi-Lo Thread #12 x 5/8

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

In Stock, only 4 left!

0

28

Husqvarna 532197370

Drive Cover
(Superseded to 532432666)

$

$

Not available

29

Husqvarna 532409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532194018

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

33

Husqvarna 532196857

V-Belt

$15.99

$

In Stock, Qty 13

0

35

Husqvarna 532408862

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: Includes Knob and Bearing

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404834

Gear Case Assembly, Complete

$91.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532406558

Spring

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 532408861

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: Includes Knob and Bearing

$44.99

$

In Stock, only 3 left!

0

54

Husqvarna 532410683

Grassbag Assembly

$72.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532407454

Frame, Grassbag
(Superseded to 532411952)

$

$

Not available

61

Husqvarna 532410726

Case, Upper

$15.99

$

In Stock, only 1 left!

0

62

Husqvarna 532410728

Shaft, Output

$

$

Currently unavailable

63

Husqvarna 532183508

Seal, Output Shaft

$6.49

$

In Stock, only 2 left!

0

64

Husqvarna 532183511

Bushing

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

Seal, Worm Shaft

$7.49

$

In Stock, only 2 left!

0

67

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532410729

Gear, 28 Teeth

$9.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532410732

Fixed Dog Clutch

$2.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532410733

Pin
(Superseded to 532412746)

$4.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532410730

Movable Dog Clutch

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183513

Screw, Case

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532410734

Case, Lower

$15.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532410731

Spring, Leaf

$4.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532410727

Shaft, Worm

$24.99

$

Usually ships in 3-10 days

0
