62560 - Lawn-Boy Twin Bagger for 42" Precision Riding Mower (SN: 260000001 - 260999999) (2006) BAGGER TOP AND HINGE ASSEMBLY Parts Diagram

Twin Bagger for 42" Precision Riding Mower

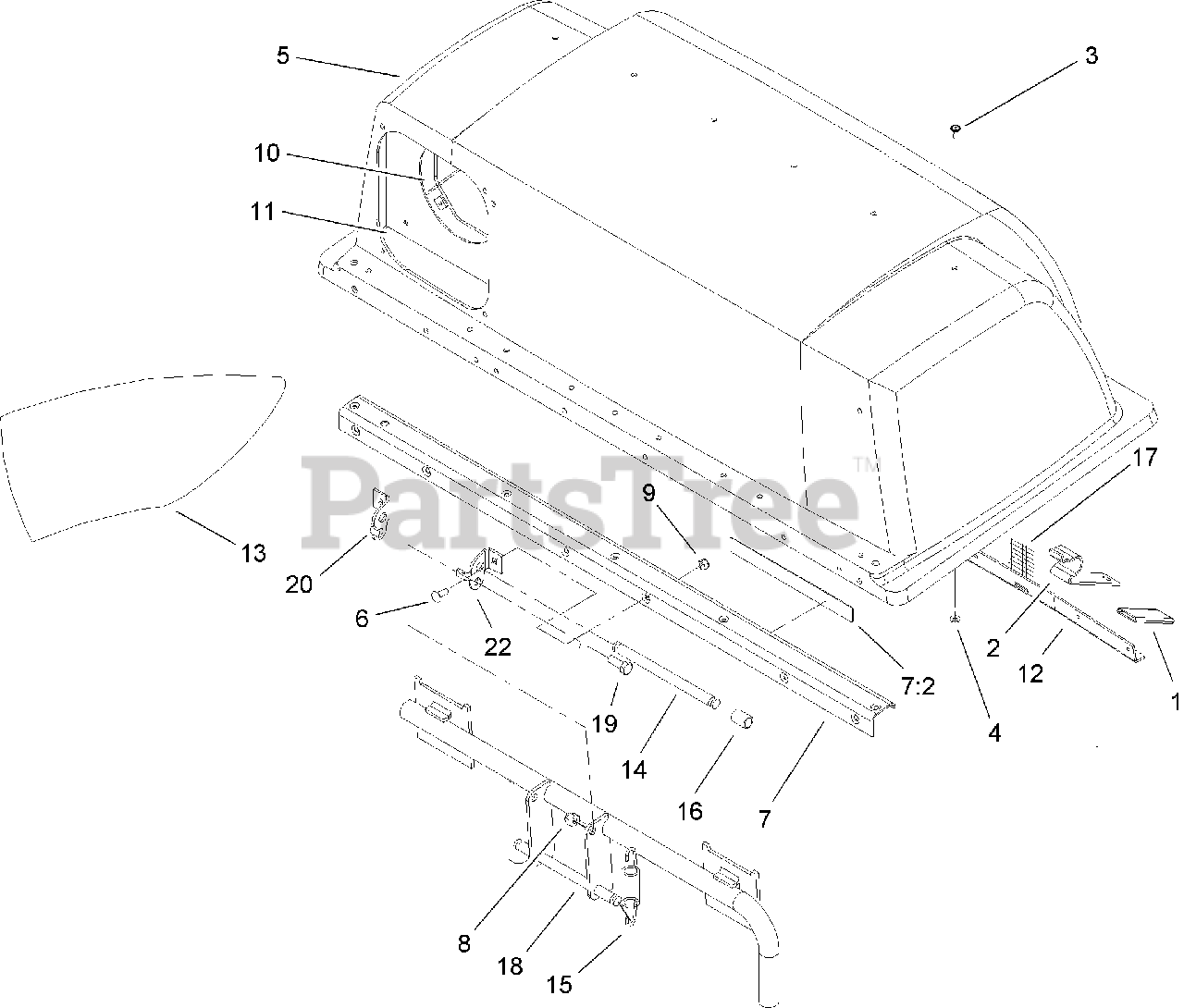

BAGGER TOP AND HINGE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 115880

GRIP

$5.99

$

In Stock, only 4 left!

0

2

Lawn-Boy 115481-03

LATCH-BAGGER, TOP

$25.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 114439

RIVET-POP

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 9202704

WASHER

$1.99

$

In Stock, Qty 17

0

5

Lawn-Boy 105-9100

Top-Bagger

$333.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 11

0

7

Lawn-Boy 88-9570

STIFFENER ASM

$104.99

$

Usually ships in 3-6 days

0

7:2

Lawn-Boy 93-7320

DECAL-CAUTION

$31.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 114966

CLAMP-SEAL

$74.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 117239

SEAL-CHUTE

$98.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-1736-03

SUPPORT-SCREEN

$55.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 106-7029

CHUTE-BAGGER

$397.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 114960

PIN-SPRING

$28.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 114962

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 9790944

Spacer

$2.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 114967

SCREEN-BAGGER

$42.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 114955-03

FRAME ASM

$800.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 108-8504-03

BRACKET-HINGE, LH

$

$

Not available

22

Lawn-Boy 108-8505-03

BRACKET-HINGE, RH

$

$

Not available
