6259 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Lb Trimmer Brushcutter Handle Assy. 1800 Parts Diagram

Walk-Behind Mower

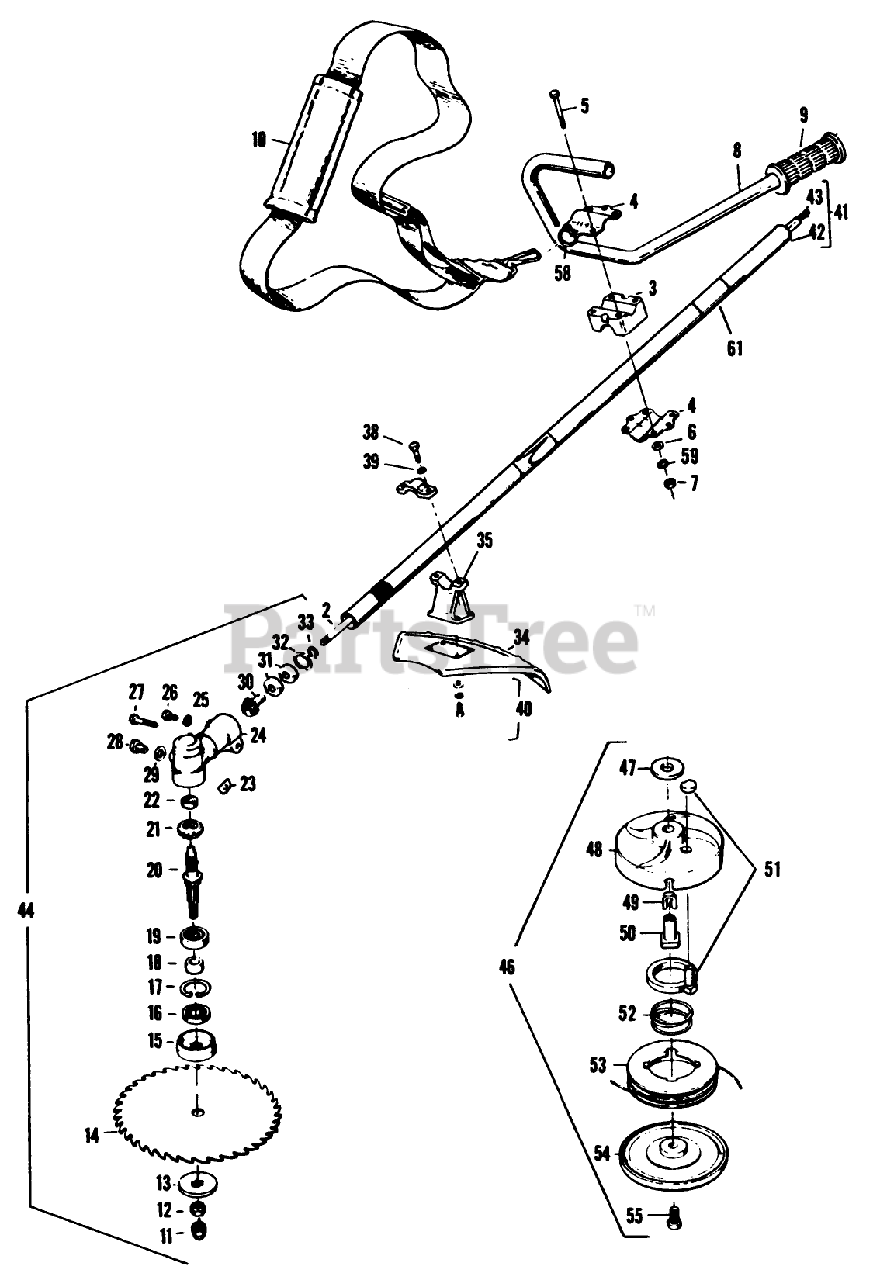

Lb Trimmer Brushcutter Handle Assy. 1800 Parts Diagram

  • Title
1

Lawn-Boy 92231

O Ring-Shoulder Harness

$

$

Currently unavailable

2

Lawn-Boy 1642

Lockwasher-Handlebar

$

$

Currently unavailable

3

Lawn-Boy 92084

Handle Bar Block

$

$

Currently unavailable

4

Lawn-Boy 92079

Handle Bar Clamp

$

$

Currently unavailable

5

Lawn-Boy 15405

Bolt-Handle Bar

$

$

Currently unavailable

6

Lawn-Boy 1503

DISCONTINUED

$

$

Not available

$

$

Currently unavailable

8

Lawn-Boy 92122

Barrier Handle Bar

$

$

Currently unavailable

9

Lawn-Boy 92086

Grip-Handle Bar

$

$

Currently unavailable

10

Lawn-Boy 93086

Shoulder Strap

$

$

Currently unavailable

11

Lawn-Boy 91595

Locknut

$

$

Currently unavailable

$

$

Currently unavailable

13

Lawn-Boy 92144

Blade Adapter-Lower

$

$

Currently unavailable

14

Lawn-Boy 92159

10" Brush Blade

$

$

Currently unavailable

15

Lawn-Boy 92143

Blade Adapter-Upper

$

$

Currently unavailable

16

Lawn-Boy 91589

Oil Seal

$

$

Currently unavailable

17

Lawn-Boy 91592

Snap Ring

$

$

Currently unavailable

18

Lawn-Boy 91591

Collar-Shaft

$

$

Currently unavailable

19

Lawn-Boy 91598

Ball Bearing

$

$

Currently unavailable

20

Lawn-Boy 91588

Shaft-Arbor

$

$

Currently unavailable

21

Lawn-Boy 91587

Gear-Bevel

$

$

Currently unavailable

22

Lawn-Boy 91586

Bearing-Gear Box

$

$

Currently unavailable

23

Lawn-Boy 91584

Fiber-Filler Washer

$

$

Currently unavailable

24

Lawn-Boy 91585

Housing-Gear Box

$

$

Currently unavailable

25

Lawn-Boy 91578

Lock Washer-Housing Bolt

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Lawn-Boy 91583

Housing Bolt

$

$

Currently unavailable

28

Lawn-Boy 91581

Oil Plug

$

$

Currently unavailable

29

$

$

Currently unavailable

30

Lawn-Boy 91576

Pinion Gear

$

$

Currently unavailable

31

Lawn-Boy 91575

Bearing-Pinion Gear

$

$

Currently unavailable

32

Lawn-Boy 91574

Snap Ring-Gear Housing Bearing

$

$

Currently unavailable

33

Lawn-Boy 91573

Snap Ring-Gear Housing

$

$

Currently unavailable

34

Lawn-Boy 91568

Splash Deflector

$

$

Currently unavailable

35

Lawn-Boy 91569

Shield Mounting Bracket Assy

$

$

Currently unavailable

38

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Lawn-Boy 91572

Shield Mounting Kit

$

$

Currently unavailable

41

Lawn-Boy 92363

48" Drive Shaft Housing and Drive Shaft Assy. (Inc. 1 2)

$

$

Currently unavailable

42

Lawn-Boy 92382

48" Drive Shaft Hsg. w/Bearings

$

$

Currently unavailable

43

Lawn-Boy 93087

Drive Shaft

$

$

Currently unavailable

44

Lawn-Boy 92151

Transmission Assy. (Inc. 11-33)

$

$

Currently unavailable

46

Lawn-Boy 92135

Cutting Head Assy

$

$

Currently unavailable

47

$

$

Currently unavailable

$

$

Currently unavailable

49

Lawn-Boy 91425

Line Saver

$

$

Currently unavailable

50

Lawn-Boy 91423

Drive Adaptor

$

$

Currently unavailable

51

Lawn-Boy 91659

Lock Ring and Button-Release Assembly

$

$

Currently unavailable

52

$

$

Currently unavailable

53

$

$

Currently unavailable

54

Lawn-Boy 91424

Cover-Cutting Head

$

$

Currently unavailable

55

Lawn-Boy 91662

Screw-Cover

$

$

Currently unavailable
