626 (590-626-100) - Cub Cadet 60" Rear Blade att 60" Rear Blade Parts Diagram

60" Rear Blade

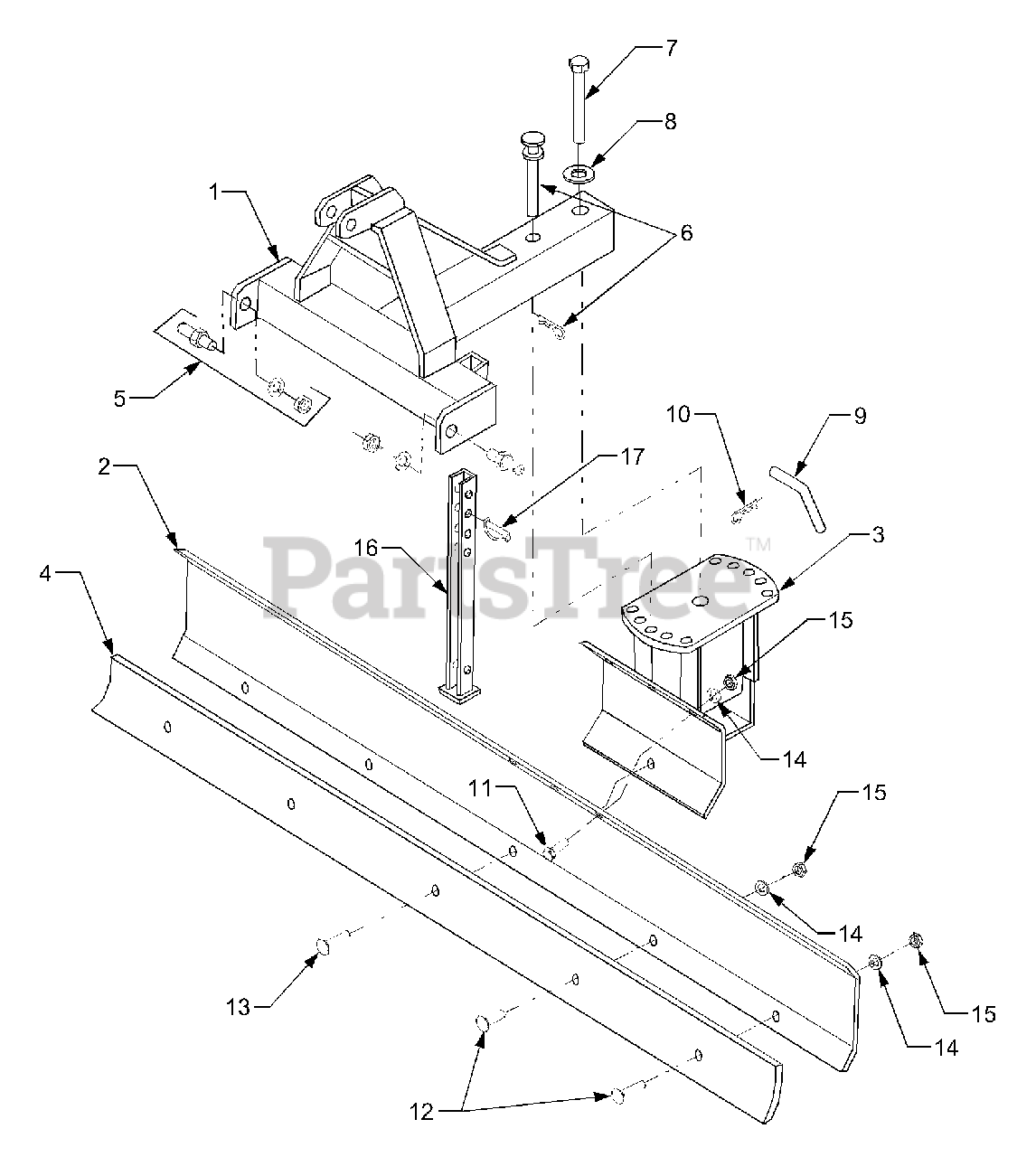

60" Rear Blade Parts Diagram

  • Title

1

Cub Cadet BF-006-9600

'A' Frame

$

$

Not available

2

Cub Cadet BF-016-9501

Mold Board

$

$

Not available

3

Cub Cadet BF-006-9502

Swivel

$

$

Not available

4

Cub Cadet BF-016-9019

Scraper Blade

$

$

Not available

5

Cub Cadet BF-943-008B

Hitch Pin w/Lockwasher and Nut, 7/8

$

$

Not available

6

Cub Cadet BF-006-9616

Swivel Pin w/Cotter Pin

$

$

Not available

7

Cub Cadet BF-006-9604

Hex Bolt, 1.0 x 6.0

$

$

Not available

8

Cub Cadet BF-006-9607

Flat Washer, 1.0 ID

$

$

Not available

9

Cub Cadet BF-503-656B

Bent Pin

$

$

Not available

10

Cub Cadet BF-503-657B

Cotter Pin

$

$

Not available

11

Cub Cadet BF-006-9609

Hex Bolt, 5/8-11 x 2.0

$

$

Not available

12

Cub Cadet BF-503-651B

Plow Bolt, 5/8-11 x 1.5

$

$

Not available

13

Cub Cadet BF-503-650B

Plow Bolt, 5/8 x 2.0 GR5

$

$

Not available

14

Cub Cadet BF-502-866B

Lockwasher, 5/8
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 15

0

15

Cub Cadet BF-502-865B

Hex Nut, 5/8
(Superseded to 712-3015)

$4.49

$

In Stock, Qty 15

0

16

Cub Cadet BF-006-9608

Foot Stand

$

$

Not available

17

Cub Cadet BF-501-684B

Lock Pin

$

$

Not available
