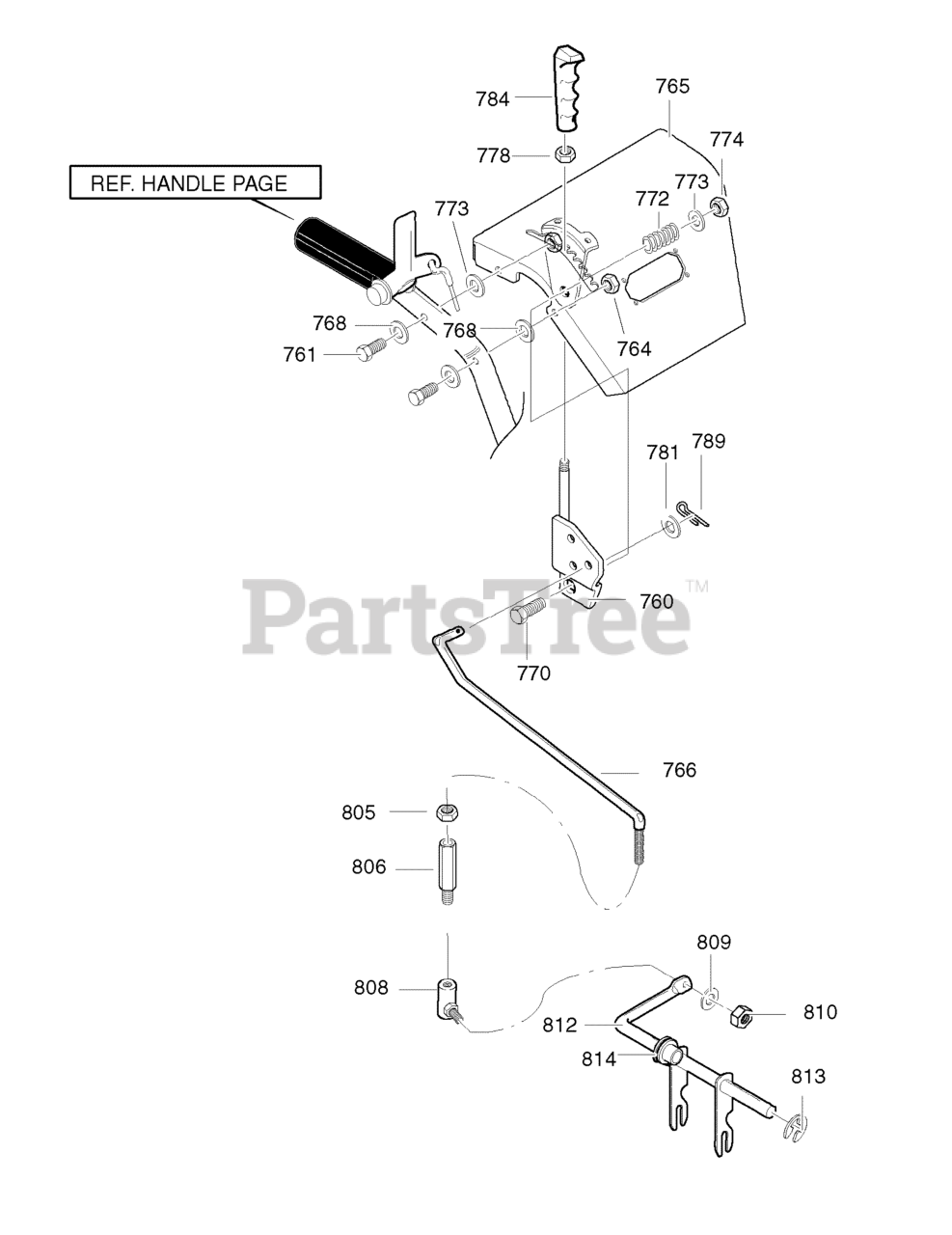

6271200x43 (1695373) - Yard King 27" Snow Thrower (2007) Control Panel Assembly Parts Diagram

27" Snow Thrower

Control Panel Assembly Parts Diagram

  • Title

760

Murray 1501570YZMA

HANDLE ASSEMBLY SPEED CONTROL

$10.99

$

Usually ships in 2-12 days

0

761

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

764

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

765

Murray 760328E540MA

ASSEMBLY BAY PANEL - LT

$76.99

$

Usually ships in 2-12 days

0

766

Murray 1501733MA

ROD, SPEED CONTROL
(Superseded to 50782MA)

$21.99

$

In Stock, only 1 left!

0

768

Murray 71071MA

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

770

Murray 71007MA

SCREW 3/8-16 X 2.00
(Superseded to 703589)

$4.49

$

In Stock, Qty 12

0

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

774

Murray 71046MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71044MA

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

781

Murray 71071MA

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

784

Murray 1502123MA

HANDLE, GRIP

$5.49

$

Usually ships in 2-12 days

0

789

Murray 71081MA

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

805

Murray 71042MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352MA

ADAPTER, SPEED ROD -YZ

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782MA

BALLJOINT, STEEL -YZ

$21.99

$

In Stock, only 1 left!

0

809

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

810

Murray 71042MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

812

Murray 1501110YZMA

ROD, ASSEMBLY YOKE

$50.99

$

In Stock, only 3 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, only 2 left!

0

814

Murray 579944MA

BEARING, FLANGE

$15.99

$

In Stock, only 2 left!

0
