627801x85A - Murray 27" Snow Thrower (2003) Track Assembly Parts Diagram

27" Snow Thrower

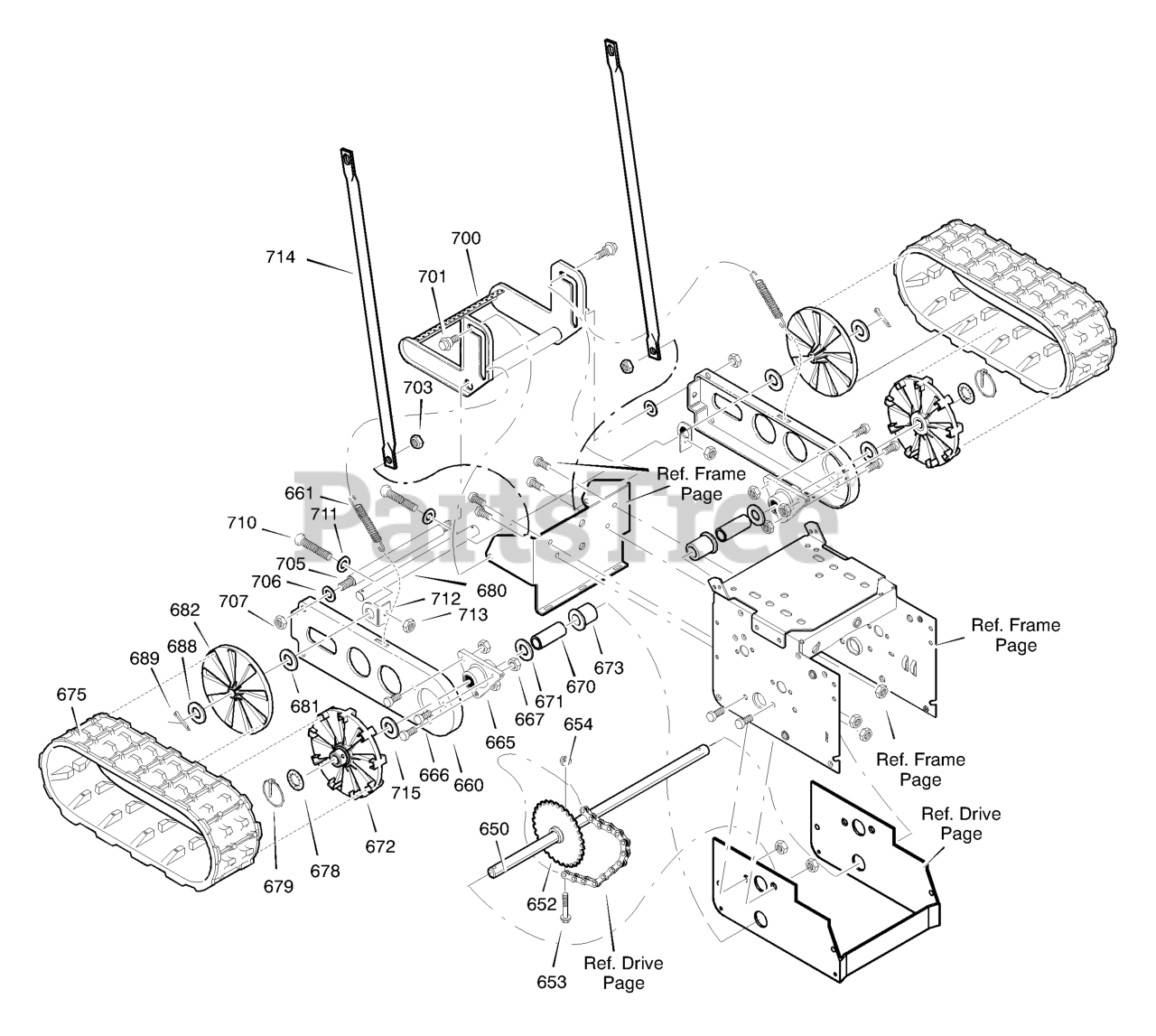

Track Assembly Parts Diagram

  • Title

650

Murray 1501221

SHAFT, AXLE

$41.99

$

Usually ships in 2-12 days

0

652

Murray 579901

SPROCKET AND HUB

$78.99

$

Usually ships in 2-12 days

0

653

Murray 73839MA

BOLT, HEX 1/4-20 x 2.25

$5.49

$

In Stock, Qty 9

0

654

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

660

Murray 580635E717

PLATE, TRACK DIRECT

$

$

Not available

661

Murray 51447MA

SPRING, DRIVE IDLER

$21.99

$

Usually ships in 2-12 days

0

665

Murray 316863MA

BEARING, TRACK

$5.99

$

Usually ships in 2-12 days

0

666

Murray 302628MA

SCREW, 1/4-20 x075

$4.49

$

In Stock, Qty 6

0

667

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

670

Murray 580763

SPACER, .750 ID x 1.30

$

$

Not available

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

672

Murray 318719MA

WHEEL, TRACK DRIVE 0.75 ID x 8.5 OD

$33.99

$

Usually ships in 2-12 days

0

673

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, only 2 left!

0

675

Murray 580984

TRACK

$

$

Not available

678

Murray 239MA

RING, RETAINER
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 7

0

679

Murray 322424MA

PIN, KLIK

$9.99

$

Usually ships in 2-12 days

0

680

Murray 580876

SHAFT, IDLER

$

$

Not available

681

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

682

Murray 318720MA

WHEEL, TRACK IDLER, 0.63 ID x 8.50 OD

$45.99

$

Usually ships in 2-12 days

0

688

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

689

Murray 302847

PIN, COTTER

$

$

Currently unavailable

700

Murray 580657E701

PEDAL, FOOT

$854.99

$

Usually ships in 2-12 days

0

701

Murray 6001MA

BOLT, .430 x .265

$

$

Not available

703

Murray 710026

NUT, 5/16-18

$

$

Not available

705

Murray 580652

SHAFT, FOOT PEDAL -4.75"

$

$

Currently unavailable

706

Murray 71072

WASHER, FLAT

$

$

Not available

707

Murray 711906

NUT, 3/8-16

$

$

Not available

710

Murray 302618MA

SCREW, 1/4-20 x 3.00

$4.49

$

Usually ships in 2-12 days

0

711

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

712

Murray 581033 YZ

BRACKET, TRACK TENSIONER

$85.99

$

Usually ships in 2-12 days

0

713

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

714

Murray 1501222E701

BRACE

$

$

Currently unavailable

715

Murray 6104MA

WASHER

$

$

Not available
