627809x54D - Murray 27" Snow Thrower (2003) Headlight Parts Diagram

27" Snow Thrower

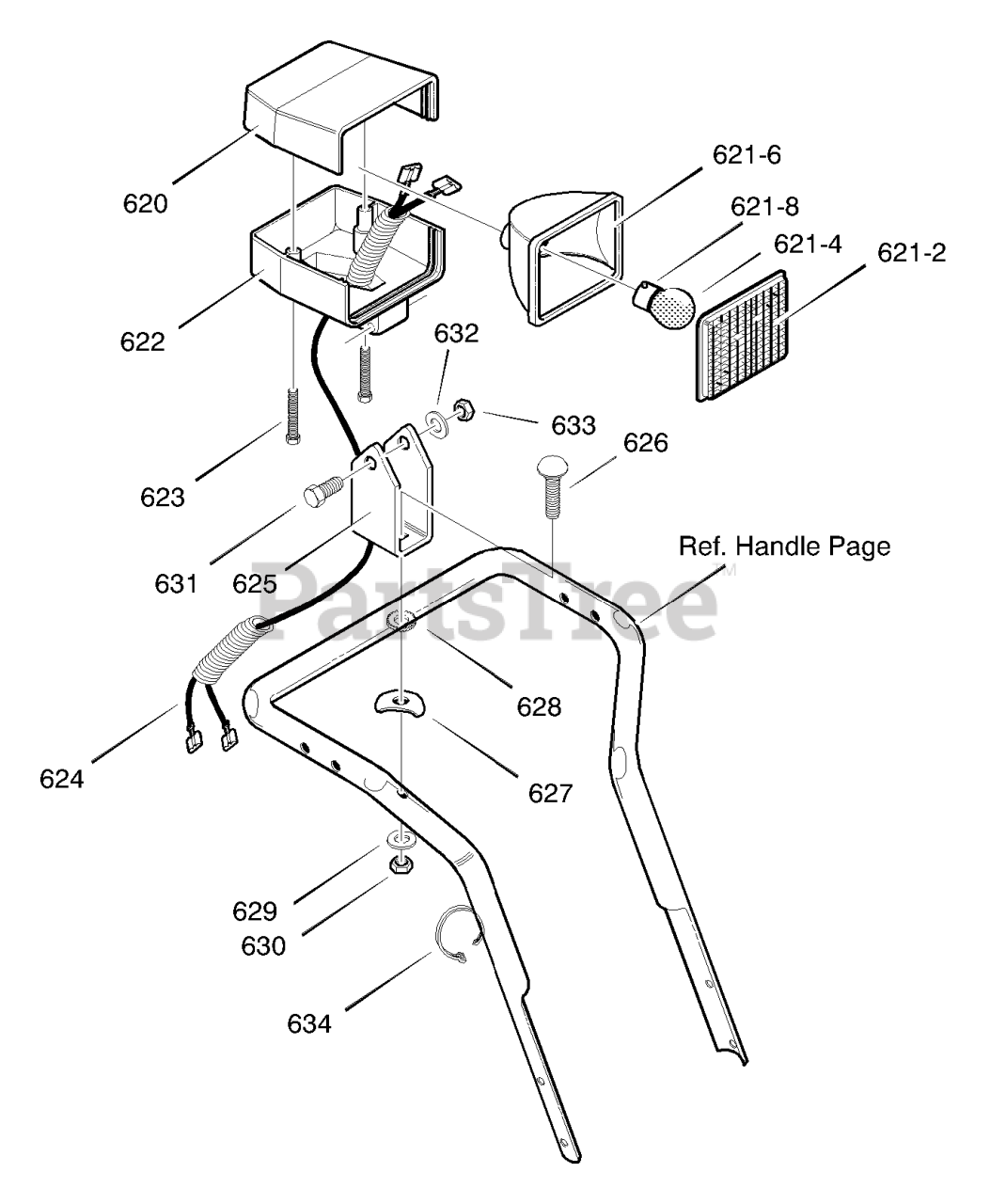

Headlight Parts Diagram

  • Title

620

Murray 307395MA

HOUSING, HEADLIGHT UPPER

$8.49

$

Usually ships in 2-12 days

0

621

Murray 581575MA

HEADLIGHT, ASSY

$46.99

$

Usually ships in 2-12 days

0

621-2

Murray 309789

LENS

$

$

Currently unavailable

621-4

Murray 581576

BULB 1156

$

$

Currently unavailable

621-6

Murray 309792

BACK, METALIZED

$

$

Currently unavailable

621-8

Murray 309793

SOCKET

$

$

Currently unavailable

622

Murray 1501513MA

HOUSING, HEADLIGHT LOWER
(Superseded to 1501514MA)

$19.99

$

Usually ships in 2-12 days

0

623

Murray 307781MA

SCREW, #8X1.75

$3.99

$

Usually ships in 2-12 days

0

624

Murray 307767MA

WIRING HARNESS

$8.49

$

Usually ships in 2-12 days

0

625

Murray 4029 YZ

BRACKET, HEADLIGHT

$30.99

$

Usually ships in 2-12 days

0

626

Murray 002X88MA

BOLT, 5/16-18 x 2 CARR.

$3.49

$

In Stock, only 1 left!

0

627

Murray 580527MA

WASHER, SADDLE

$5.49

$

Usually ships in 2-12 days

0

628

Murray 71061

WASHER, EXLK .32X.60X.040

$

$

Not available

629

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

630

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

631

Murray 235MA

SCREW, 5/16-18 x 2.00

$4.49

$

Usually ships in 2-12 days

0

632

Murray 71060

WASHER, SPTLK
(Superseded to 1501670MA)

$

$

Not available

633

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

634

Murray 071372MA

TIE, CABLE

$4.49

$

In Stock, only 1 left!

0
