627851x85A - Murray 27" Snow Thrower (2005) Auger Housing Parts Diagram

27" Snow Thrower

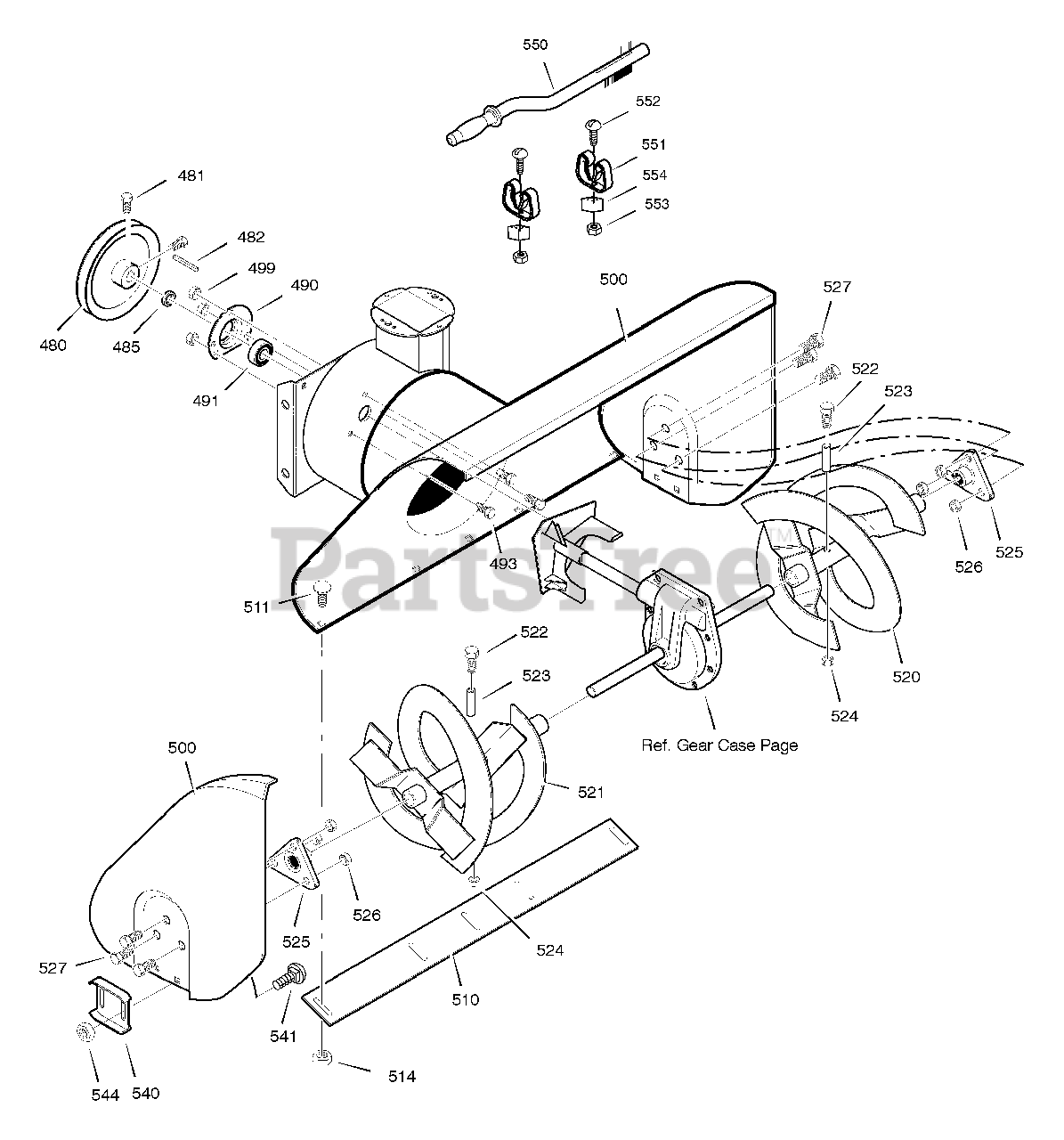

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY

$

$

Not available

481

Murray 577400MA

SCREW, 5/16-18 x 0.62

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, only 2 left!

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92MA

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501693E012

HOUSING, ASSY

$455.99

$

Usually ships in 2-12 days

0

510

Murray 760661E701MA

BLADE, SCRAPER
(Superseded to 1740949BMYP)

$35.99

$

In Stock, only 1 left!

0

511

Murray 340720MA

BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760605E701MA

AUGER, ASSY, LH
(Superseded to 1740736AYP)

$

$

Not available

521

Murray 760606E701MA

AUGER, ASSY, RH

$246.99

$

In Stock, only 2 left!

0

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING,FLANGE

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

540

Murray 309016E701MA

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, only 3 left!

0

552

Murray 06X115MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

554

Murray 578063MA

BLOCK

$5.49

$

In Stock, Qty 10

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0
