62835 - Toro Shredder (SN: 002000001 - 002999999) (1972) REWIND STARTER Parts Diagram

Shredder

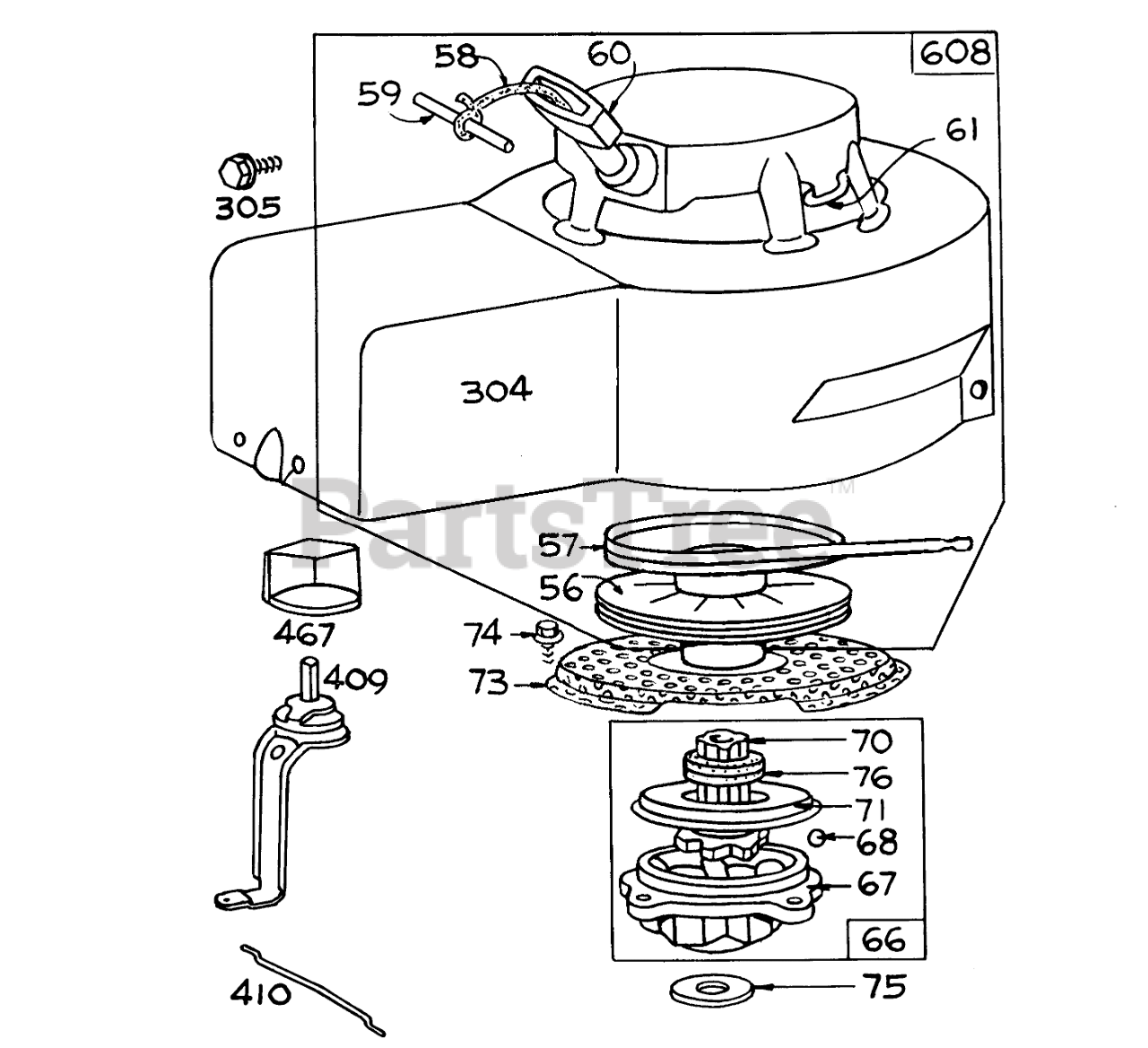

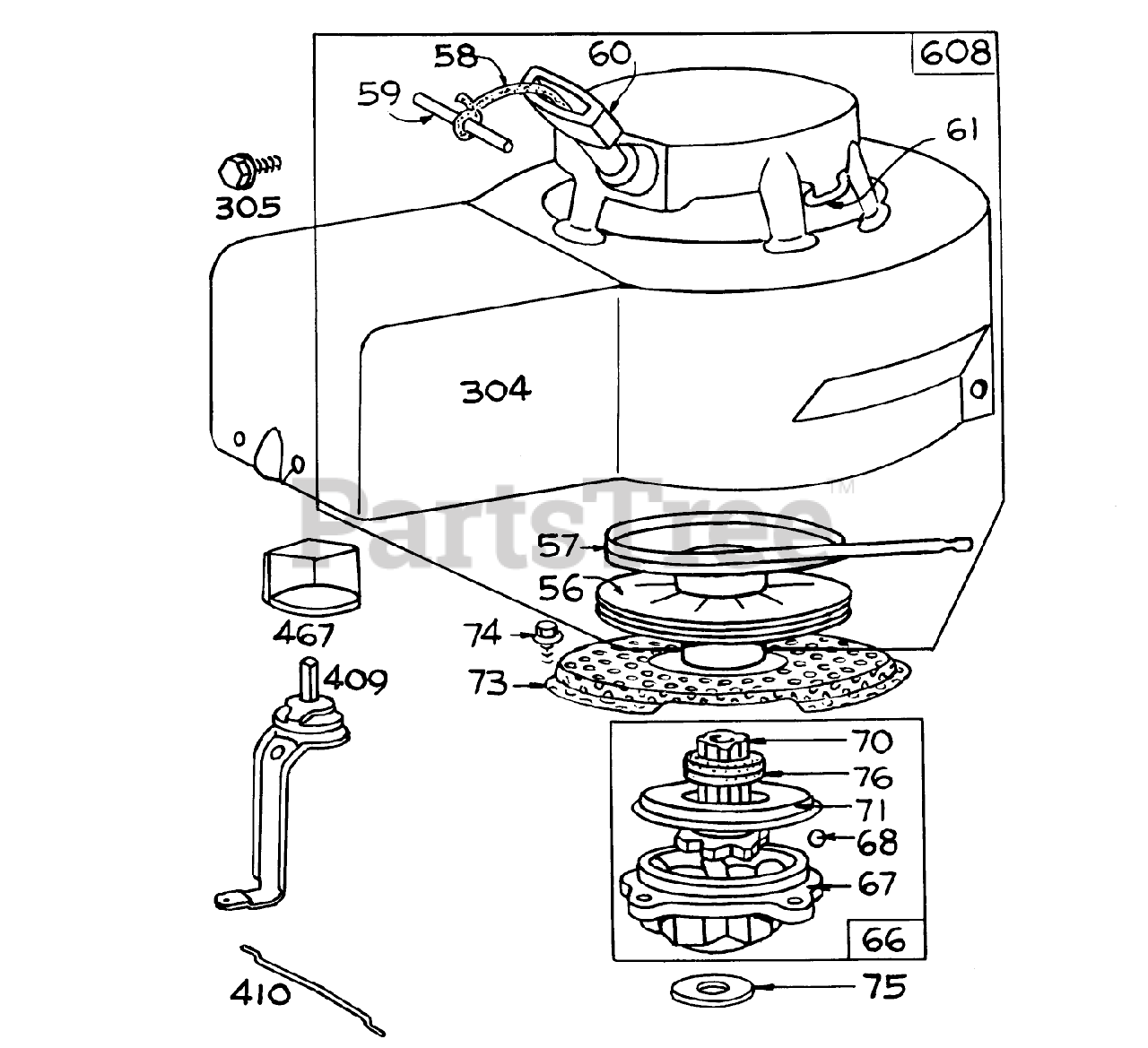

REWIND STARTER Parts Diagram

  • Title

56

Toro 298738

Pulley-Rewind Starter

$

$

Currently unavailable

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 11

0

58

Briggs & Stratton 66694

Rope-Rewind
(Superseded to 66734)

$6.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

61

Briggs & Stratton 68618

Bumper-Starter Pulley

Note: NOT SHOWN

$2.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 298310

Clutch Assembly
(Superseded to 399671)

$34.99

$

In Stock, Qty 14

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

304

Toro 298599

Housing-Blower

$

$

Currently unavailable

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

409

Briggs & Stratton 299839

Control Dial

$14.99

$

Usually ships in 2-12 days

0

410

Briggs & Stratton 260993

Link-Control

$2.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 299858

Knob-Dial Control

$17.99

$

Usually ships in 2-12 days

0

608

Toro 298466

Starter Assy.-Rewind

$

$

Currently unavailable
